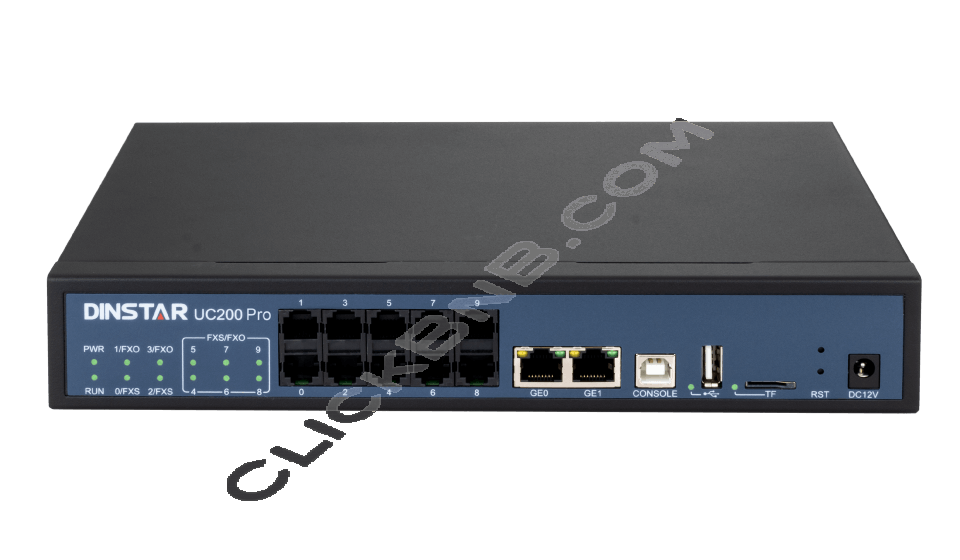

Dinstar UC200 Pro Technical Specifications
Physical Interfaces
- FXS: 2 X FXS Ports
- FXO: 2 X FXO Ports
- Supports up to 3 additional modules
- USB Interface: 1 X USB2.0
- 1 WAN, 100/1000M, Base-T, RJ45
- 1 LAN, 100/1000M, Base-T, RJ45
- 1 X TF card slot
- Console port: 1* RS232, 115200bps
FXS
- Connector type: RJ11
- Caller ID: Bellcore Type 1&2, ETSI,BT,NTT and DTMF
- Answer and Disconnect Signaling: Answer, Disconnect, Busy Tone
- Polarity Reversal
- Hook Flash
FXO
- Connector: RJ11
- Caller ID: FSK, DTMF
- Polarity Reversal
- Answer Delay
- Detection of Busy Tone
- Detection of No Current
- Auto Match of FXO Impedance
PBX Services
- Call Forward (Unconditional/No Answer/Busy)
- Call Waiting / Hold
- Call Transfer
- Call Pickup
- Call Monitor / Bargin in
- Hotline
- Do-not-disturb
- 3 Way Conference
- Ring Group/Route Group
- Call Queue
- Paging/Intercom
- Dial Rules
- Caller ID Display
- Blacklist/Whitelist
- Routing Based on Time Period, Caller/Called Prefixes, Source Trunks
- Local Recording (Support USB Storage)
- Routing Based on Multi Source
- Failover Routing
- SMS Route
- BLF, PIN List
- Multi-level IVR
- Auto-attendant Function
- Auto Clip
- WebRTC
- Support Dinlink (App)
- CDRs
- Voicemail, Voicemail to Email, Email Client
- Up to 60 SIP Extensions
- Up to 25 concurrent calls in full recording mode
- Email Client
- Event Report
- Attendant Console
- Property Management System
Voice Capabilities
- VoIP Protocols: SIP over UDP/TCP/TLS,RTP/SRTP
- Codecs: G.711a/μ law,G.723.1, G.729A/B, G.726, OPUS, G.722
- Silence Suppression
- Comfort Noise Generator(CNG)
- Voice Activity Detection(VAD)
- Echo Cancellation: G.168 with up to 128ms
- Dynamic Jitter Buffer
- Adjustable Gain Control
- Automatic Gain Control（AGC）
- Call Progress Tones: Dial Tone, Ring Back Tone, Busy Tone
- FAX: T.38 and Pass-through
- NAT: STUN/DDNS
- DTMF: RFC2833/Signal/Inband
- VPN Server/Client
Maintenance
- Web GUI Configuration
- Telnet Management
- Configuration Restore/Backup
- Multiple Languages Supported
- HTTP/HTTPS/FTP Firmware Upgrade
- Auto Provision
- Syslog
- Ping and Tracert
- Traffic Statistics: TCP,UDP,RTP
- Network Capture
- Web-based Management Portal
- PNP Auto Provision
- Classification of Web Users’ Rights
- Personal Portal Management
- HTTP&HTTPS/NATS API
- Network Management System
Environmental
- Power Supply: 12VDC, 2A
- Power Consumption: 10W
- Operating Temperature. 0 ℃ ~ 40 ℃
- Storage Temperature: -10 ℃ ~ 90 ℃
- Humidity: 10%-90% Non-Condensing
- Dimensions (W/D/H): 260×154×42mm
- Unit Weight: 1.1kg
