Product Overview
Camera

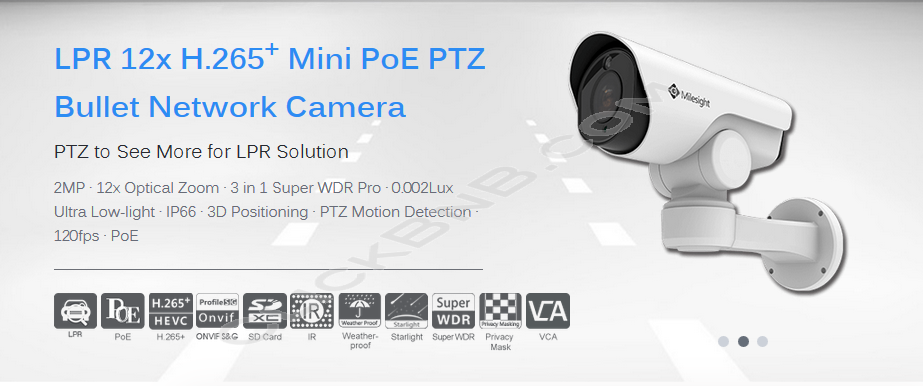

Name : MS-C2961-RELPB 2MP LPR 12x H.265+ Mini PTZ Bullet Network IP CameraImage Sensor : 1/2.8" Progressive Scan CMOS
Min. Illumination : Color: 0.002Lux @F1.2. BW : 0Lux with IR on
WDR : 140dB Super WDR (Super WDR Pro is optional for Q Series)
Shutter Time : 1/100000s∼1s
Day & Night : ICR Filter Auto Switch
Digital Zoom : 16x
S/N : >55dB
Lens
Auto Focus : Auto/Semi-automatic/Manual
Focal Length : 5.3~64mm, 12x Optical Zoom
Zoom Speed : 3.1s
Field of View : H61°~H5°/D69~°D5°/V36°~V2° (Wide-Tele)
Minimum Working Distance : 1000~1500mm (Wide-Tele)
Aperture : F1.6~F2.8
Iris Control : Auto
PTZ
Pan Range : 360°endless
Pan Speed : Pan Manual Speed 0.2°~60°/s, Pan Preset Speed 100°/s
Tilt Range : -45°~30°
Tilt Speed : Tilt Manual Speed 0.2°~30°/s, Tilt Preset Speed 60°/s
Proportional Zoom : Support
Preset Quantity : 255
Preset Freezing : Support
Patroll : 8 Patrols, up to 48 presets each patrol
Pattern : 4 pattern
Preset Freezing : Support
Power Off Memory : Support
PTZ Position Display : ON/OFF
3D Positioning : Support
IR
Irradiation Distance : Up to 140m
Irradiation Angle : Auto/Manual
Video
Max. Image Resolution : 1920x1080
Frame Rate : 60fps@(1920x1080)(Optional for R Series), 1920x1080, 1280x960, 1280x720, 704x576)Secondary Stream : 30fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)
Tertiary Stream : 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)
Video Compression : H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate: 16Kbps~16Mbps (CBR/VBR adjustable)
Image Settings : Brightness/Contrast/Saturation/Sharpness
Web Access : Support IE/Firefox/Chrome/Safari Browser
Network
Communication : 1*RJ45 10M/100M Ethernet Port
Network Storage : NAS(Support NFS, SMB/CIFS)
Protocols : IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
System
Alarm I/O : 1/1(optional)
Storage : Support microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced Function : Auto Tracking, Privacy Masking, BLC, HLC, 2D DNR, 3D DNR, ROI, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP Support : Yes, Voice&Video-over-IP
Event Trigger : Motion Detection, Network Disconnection, External Input(Optional), Audio Alarm(Optional), etc.
Event Action : FTP Upload, SMTP Upload, SD Card Record, External Output(Optional), SIP Phone, White LED, PTZ Motion, HTTP Notification, etc.
Video Analysis : Region Entrance, Region Exiting, Advance Mode Detection, Tamper Detection, Line Crossing, Loitering, Human Detection, People Counting, Object Left, Object Removed
System Compatibility : ONVIF Profile G & Q & S & T
General
Working Temperature : -40℃~80℃
Working Humidity : 0∼90%(Non-condensing)
Power Supply : DC 12V/2A±10% /PoE(802.3at)
Power Consumption : 10.5W MAX, 20W MAX(With IR on)
Weather Proof : Up to IP66-rated for weather-resistant performance
Dimensions : 160mmX273.5mmX210mm(Wall Mount)/ 218mmX120mmX172mm(Pedestal Mount)
Weight : 2Kg(Wall Mount)/ 1.8Kg(Pedestal Mount)
