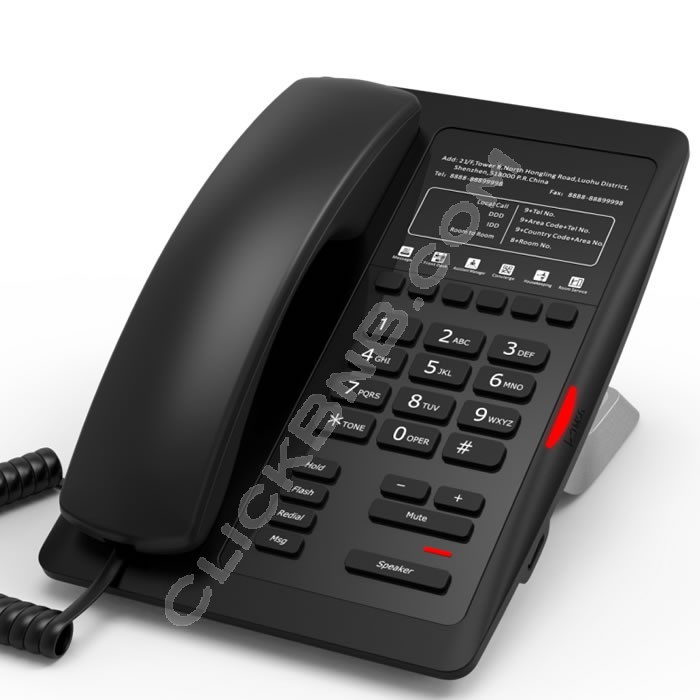

The Fanvil H3 is an IP hotel phone with HD voice and 6 programmable soft keys. The Programmable keys are suited for used as service hotlines in Hotels. The Example for effective use is House Keeping, Ticketing, Restaurant, Laundry and Room Service.The H3 Hotel IP Phone is POE Supported and HD Voice Supported.
Fanvil H3 VoIP Phone Key Features
- 6 programmable soft keys
- HD voice: HD handset
- 802.3af PoE
- Vxworks OS
- Customised front panel with hotel information
6 Programmable Soft Keys
The H3 comes with 6 programmable soft keys for maximum flexibility. Choose from a wide range of options, such as housekeeping, ticketing, switchboard, or room service.
The H3 comes with 6 programmable soft keys for maximum flexibility. Choose from a wide range of options, such as housekeeping, ticketing, switchboard, or room service.
Fanvil H3 Technical Specification
Phone features
- vxworks OS
- Support SIP2.0 (RFC3261) and correlative RFCs
- SIP support 1 SIP servers, and backup
- SIP proxy servers
- Supports SIP UDP / TCP/ TLS
- SIP support SIP domain, SIP authentication (none, basic, MD5) , DNS name of server, Peer to Peer / IP Call
- 6 soft keys programmable
- Multi languages displayed (web)
Audio Features
- HD voice: HD handset
- Codec: G.711A/U, G.723.1 high/low, G.729AB, G.722, G.726-32
- DTMF: in-band, RFC2833 and SIP INFO
- Full-duplex Acoustic Echo Canceller (AEC) – Hands-free Mode, 96ms tail-length
- Voice Activity Detection (VAD)
- Comfort Noise Generation (CNG)
- Background Noise Estimation (BNE)
- Noise Reduction (NR)
- Packet Loss Concealment (PLC)
- Dynamic Adaptive Jitter Buffer up to 300ms
- DTMF: In-band, Out-of-Band – DTMF-Relay (RFC2833) / SIP INFO
Advanced Features
- Call transfer ( unattended/ attended/ semi-attended )
- Call holding
- Call waiting
- Redial
- Call completion
- Predial MWI
- Flexible dial plan
- Barring function for outgoing calls
- Do not disturb
- Auto answer
- CLIR (rejects anonymous calls)
- CLIP (to make an anonymous call)
- Dial without registration
- Call logs with missed calls/ incoming calls/ outgoing calls. Each support 300 records (web)
- Speed Dial
- Hotline/Warm-line
- Password dial
- DTMF hidden
- Action URL/ active URI
- Multicast
- Web dial
- Emergency call
Network/ Security Features
- WAN / LAN: 10/100M Ethernet ports (Bridge mode)
- IP Configuration: Static / DHCP / PPPoE
- Network Access Control: 802.1x
- VPN: L2TP (Basic Unencrypted) / OpenVPN
- VLAN
- QoS
Deployment & Maintenance
- Auto-Provisioning via FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIP PNP/TR069
- Web Management Portal
- Web-based Packet Dump
- Configuration Export / Import
- Firmware Upgrade
- Syslog
Physical Features
- Screen: None (H3)
- Adapter Input: AC100-240V
- Adapter Output: DC 5V/1A
- WAN Port -10/100 BASE-T RJ-45 for LAN LAN Port-10/100 BASE-T RJ-45 for PC
- Handset: RJ9
- Power consumption: IDLE: 2.5W Active: 2.8W
- Operation Temperature: 0〜40℃
- Relative Humidity: 10〜65％
- Main Chipset: Broadcom
- SDRAM: 16MB
- FLASH: 8MB
- Dimension: 213 x 170 x 130 mm
