Yeastar - NeoGate TA1610 - 16 FXO Analog VoIP Gateway

Tulis review Anda tentang produk ini

Stok: Tersedia

Harga Normal: Rp11.846.925,00

Special Price Rp10.649.880,00

Sinopsis

The Yeastar Neogate TA1610 supports 16 FXO ports to interface with PSTN or PABX extension port. Suitable for large-scale deployment and management, TA1610 features toll-quality voice call and top performance and reliability.

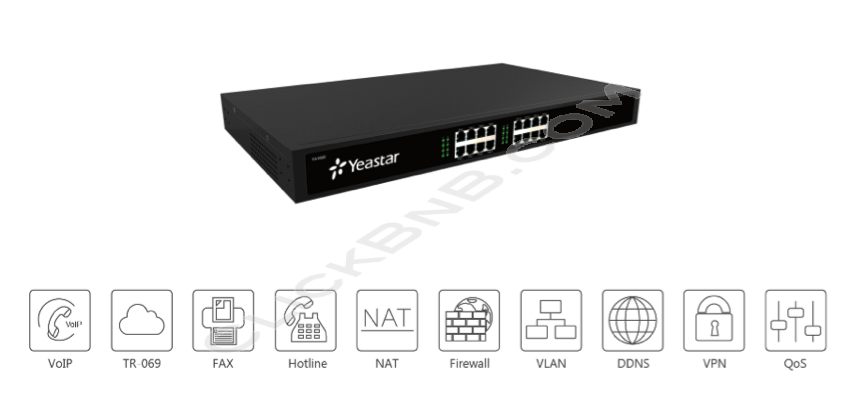

Yeastar - NeoGate TA1610 - 16 FXO Analog VoIP Gateway

Klik-ganda gambar di atas untuk melihat ukuran aslinya

Perkecil
Pebesar

Gambar Selengkapnya

Detil

Product Overview

Yeastar TA1610 supports 16 FXO ports to interface with PSTN or PABX extension port. Suitable for large-scale deployment and management, TA1610 features toll-quality voice call and top performance and reliability.

Deploy this gateway to connect lines from a PSTN to your VoIP phone system, for example. The gateway allows you to leverage your existing PSTN lines for calling, failover or other purposes. A number of essential call handling features are supported, including programmable AC impedance, hangup detection, answer detection and Caller ID detection.

Set up the Yeastar NeoGate TA1610 gateway on a desktop, featuring quiet operation. Also rack mount the gateway to keep it near your existing equipment or out of the way. The gateway supports T.30 fax and the SIP protocol, and is compatible with VoIP phone systems including 3CX, Asterisk and Microsoft Lync.

Keys Features and Functions

  • Fully compliant with SIP and IAX2
  • Flexible calling rules
  • Reliable fax performance with T.38
  • Superb voice compression with industry standard codecs
  • Line echo cancellation for 8, 16, 32, 64 or 128 ms echo delays
  • User-friendly Web GUI and intuitive operations for easy configuration and management
  • Excellent interoperability with a wide range of legacy and IP equipment
  • Tested and certified with ElastixBroadSoft, and others
  • LED indicators present system and port status visually
  • Comprehensive call log, system logs, hardware logs, and debug logs


Specifications



Ports 16 FXO Ports
Telephony Interfaces RJ11 and RJ21 50-pin Telco Connectors
LAN 1 10/100Mbps
Protocol SIP (RFC3261), IAX2
Transport UDP, TCP, TLS, SRTP
Codec G.711 (alaw/ulaw), G.722, G.723, G.726, G.729A, GSM, ADPCM
Voice Capability ITU-T G.168 LEC Echo Cancellation, Dynamic Jitter Buffer, VAD, CNG, PLC
DTMF Mode RFC2833, SIP Info, In-band
Fax T.30
QoS DiffServ, ToS, 802.1 P/Q VLAN tagging
Network DHCP, DDNS, OpenVPN, PPPoE, Static Route, VLAN
Network Protocol FTP, TFTP, HTTP, HTTPS, SSH
Management Protocol TR-069*
Signaling FXO Loop Start, FXO Kewl Start
Caller ID BELL202, ETSI (V23), NTT (V23-Japan), and DTMF-based CID
Disconnect Methods Busy Tone, Polarity Reversal
FXO Connectivity Programmable AC Impedance, Hangup Detection, Answer Detection, Caller ID Detection
Power AC 100-240V (12V 5.5A)
Dimensions (L × W × H) (mm)    440 × 250 × 44
Humidity 10-90% non-condensing
Storage Range -20°C to 65°C, -4°F to 149°F
Operation Range 0°C to 40°C, 32°F to 104°F
Mounting Desktop, Rack-mount
Compatibility Interoperable with 3CX, Asterisk, Lync Server, FreePBX and certified with Elastix and BroadSoft


Features


API Call Back
Attack Alert Auto Provisioning with MyPBX
Backup and Restore Call Detail Records
Caller ID Display Firewall
Firmware Upgrade by HTTP/TFTP    Hotline
IP Blacklist Nat Traversal
Packet Capture Tool System Logs
TR-069 Two-stage Dialing
Web-based Management
