Yeastar - NeoGate TA1600 - 16 FXS Analog VoIP Gateway

Tulis review Anda tentang produk ini

Stok: Tersedia

Harga Normal: Rp9.042.030,00

Special Price Rp8.137.935,00

Sinopsis

The Yeastar NeoGate TA1600 is a multi-port FXS gateway including 16 FXS ports, line echo cancellation and is compatible with both SIP and IAX2. The TA1600 is ideal for small and medium enterprises that wish to integrate a traditional phone system into IP-based system ( connects analog terminals, traditional PABX, varios PBX or key systems to the IP network using FXS connectivity )

Yeastar - NeoGate TA1600 - 16 FXS Analog VoIP Gateway

Klik-ganda gambar di atas untuk melihat ukuran aslinya

Perkecil
Pebesar

Gambar Selengkapnya

Detil

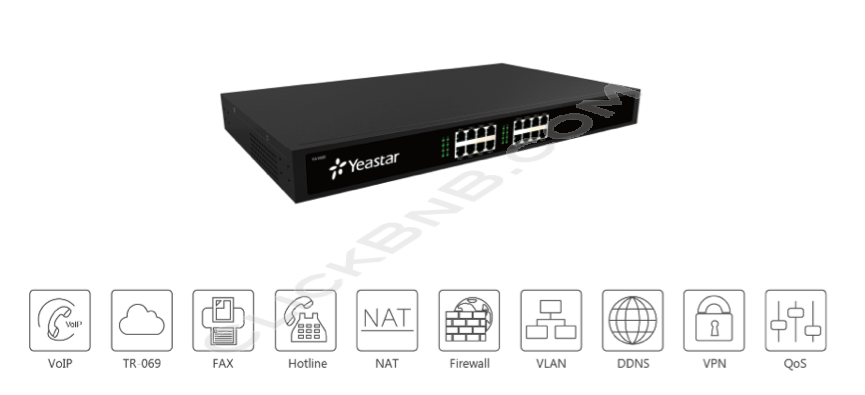

Product Overview

Featuring 16 FXS ports, the Yeastar NeoGate TA1600 connects analog terminals, PBX or key systems to the IP network using FXS connectivity. The NeoGate TA1600 multi-port FXS gateway helps to preserve previous investments on legacy telephone systems and reduce communication costs significantly with the true benefits of VoIP.

Yeastar TA1600 offers 16 FXS ports to connect TDM based telephony infrastructure to an IP network. TA1600 facilitates communication for small and medium sized businesses with a cost-effective and reliable solution.

Keys Features and Functions

  • Fully compliant with SIP and IAX2
  • Flexible calling rules
  • Reliable fax performance with T.38
  • Superb voice compression with industry standard codecs
  • Line echo cancellation for 8, 16, 32, 64 or 128 ms echo delays
  • User-friendly Web GUI and intuitive operations for easy configuration and management
  • Excellent interoperability with a wide range of legacy and IP equipment
  • Tested and certified with ElastixBroadSoft, and others
  • LED indicators present system and port status visually
  • Comprehensive call log, system logs, hardware logs, and debug logs


Specifications



Ports 16 FXS Ports
Telephony Interfaces RJ11 and RJ21 50-pin Telco Connectors
LAN 1 10/100Mbps
Protocol SIP (RFC3261), IAX2
Transport UDP, TCP, TLS, SRTP
Codec G.711 (alaw/ulaw), G.722, G.723, G.726, G.729A, GSM, ADPCM
Voice Capability ITU-T G.168 LEC Echo Cancellation, Dynamic Jitter Buffer, VAD, CNG, PLC
DTMF Mode RFC2833, SIP Info, In-band
Fax T.38 and Pass-through
QoS DiffServ, ToS, 802.1 P/Q VLAN tagging
Network DHCP, DDNS, OpenVPN, PPPoE, Static Route, VLAN
Network Protocol FTP, TFTP, HTTP, HTTPS, SSH
Management Protocol SNMP,RADIUS, TR-069*
Signaling FXS Loop Start, FXS Kewl Start
Caller ID BELL202, ETSI (V23), NTT (V23-Japan), and DTMF-based CID
Disconnect Methods Busy Tone, Polarity Reversal
FXO Connectivity
Power AC 100-240V (12V 5A)
Dimensions (L × W × H) (mm)    440 × 250 × 44
Humidity 10-90% non-condensing
Storage Range -20°C to 65°C, -4°F to 149°F
Operation Range 0°C to 40°C, 32°F to 104°F
Mounting Desktop, Rack-mount
Compatibility Interoperable with 3CX, Asterisk, Lync Server, FreePBX and certified with Elastix and BroadSoft



Features


3-way Conference API
Attack Alert Attended Transfer
Auto Provisioning with MyPBX     Backup and Restore
Blind Transfer Call Detail Records
Caller ID Display Call Forward (Always, Busy, No Answer)
Call Waiting Do Not Disturb
Firewall Firmware Upgrade by HTTP/TFTP
Hotline Hunting Groups
IP Blacklist MWI (FSK, Neon, Polarity Reversal)
Nat Traversal Packet Capture Tool
Radius Accounting & Login SNMP
Speed Dial System Logs
TR-069 Voice Menu for Basic Configuration
