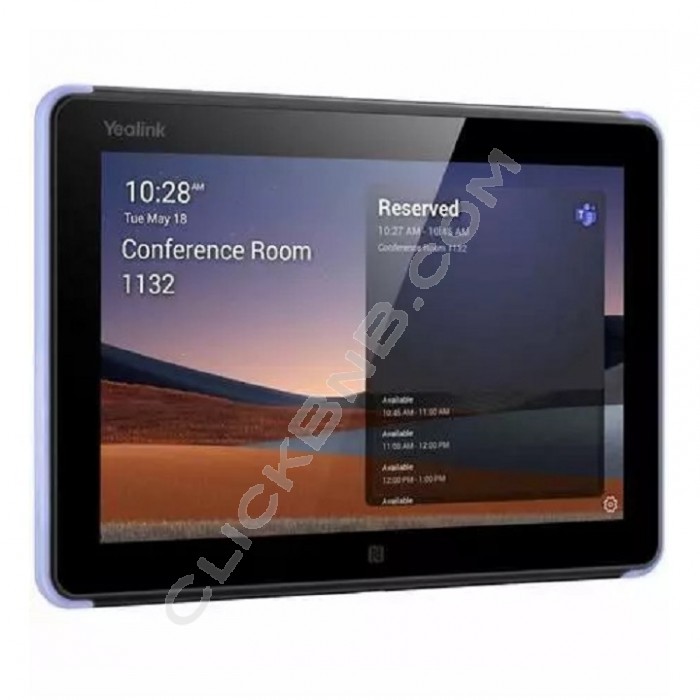

Yealink RoomPanel - All-In-One Meeting Room Scheduling Panel

Yealink RoomPanel Technical Specifications

Basic

• Operating System: Android 9

Display

• Size: 8" LCD Panel (16:10)
• Resolution: 1280x800
• Contrast: 1000:1
• Viewing Angle(H/V): ±80°/±80°
• 10 points capacitive multi-touch
• Anti-fingerprint Coating
• Proximity Sensor: Yes
• Ambient Light Sensor: Yes

Connectivity

• Ethernet: 1 x Fast ethernet port (10/100Mbps)
• Wi-Fi: 2x2 MIMO, 802.11a/b/g/n/ac
• Bluetooth: 5.0
• RFID/NFC: 13.56MHz
• USB Port: 1 x USB-C port
• Button: 1 x Reset pin hole

Audio

• Microphone: 2 x Array Microphones
• Speaker: 2 x 1 Watt Speakers

Power Supply

• Power over Ethernet (IEEE 802.3af)

• 12V Power Adapter

Mounting Options

• Surface mount for 2-gang US electrical box
• 20° tilt mount kit for wall or glass
• Flush mount kit for wall or glass

Dimensions

• Display size (mm): 209 x 146 (8.23” x 4.06”)
• Weight: 0.53kg (1.168 lb)
