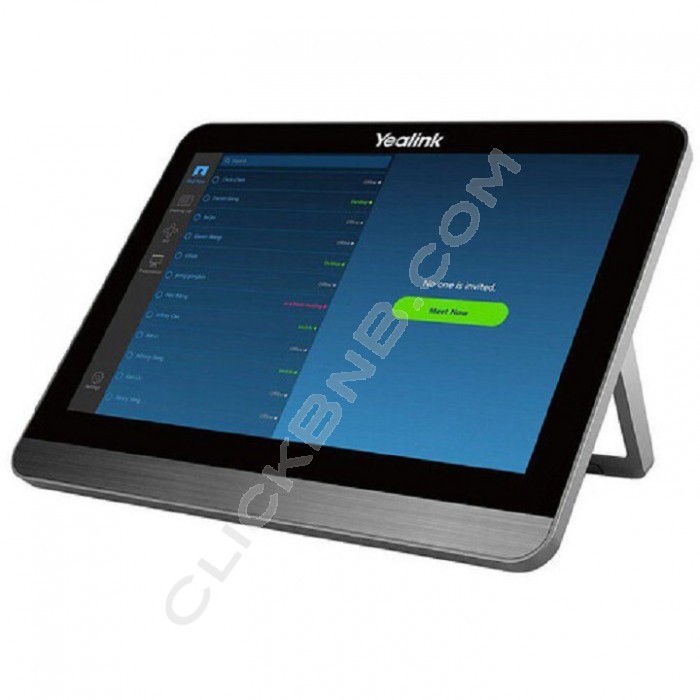

Yealink Collaboration Touch Panel CTP18 Technical Specifications
Connection
- Connect to VCS endpoint via cable
- Pair with the VCS endpoint in the same LAN (supported by later versions)
- Connect to VCS endpoint via Wi-Fi
System Compatibility
- MeetingEye 400/MeetingEye 600
- 44 or later versions
- Up to 4 CTP18 units can be used in one system
- VC880/VC800/VC500
- Supported by later versions
- Up to 4 CTP18 units can be used in one system
- VC200/VC210
- Supported by later versions
- Up to 1 CTP18 unit can be used in one system
Wireless Network
- Wi-Fi
- 2.4G/5G Wi-Fi
- IEEE 802.11n/ac
- Support connecting to the Wi-Fi generated by Yealink VCS endpoints only
Display
- Screen
- 8-inch IPS FHD capacitive touch screen
- Resolution
- 1280*800 (16:10)
- Touch
- 10 points multi-touch
Interface
- USB
- 1 x USB-C for device debugging
- RJ45
- 1 x RJ45 Ethernet for power and data connection
- Reset slot
- 1 x Reset slot
Accessories
- Wall Mount Bracket
- 1 x wall mount bracket
- Security lock slot
- 1 x security lock slot for anti-theft
Other Physical Features
- Power supply
- Power over Ethernet (IEEE 802.3af)
- Power input
- PoE 48V 0.27A
- Power consumption
- 7W at most
- Stand
- Adjustable angle (28°~50°)
- Dimension (W*D*H)
- 202mm x 151mm x 100mm
