Fanvil i31S Video Door Phone

Tulis review Anda tentang produk ini

Stok: Tersedia

Rp 10.000.000,00

Sinopsis

The design of i31S SIP Video Door phone is based on experience and knowledge of Fanvil VoIP phone development. Voice transmission uses standard IP / RTP protocol and video transmission adopts RTSP. I31S have a variety of enterprise-level features and it is compatible with lots of major platforms, such as 3CX, Asterisk, Broadsoft, Elastix, etc.

Fanvil i31S Video Door Phone

Klik-ganda gambar di atas untuk melihat ukuran aslinya

Perkecil
Pebesar

Gambar Selengkapnya

Detil

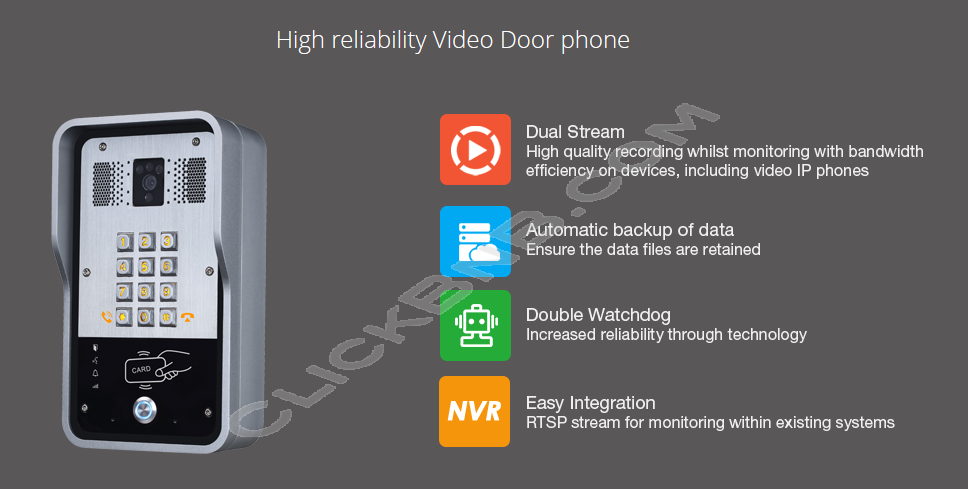

The Fanvil i31S is a SIP door phone that brings in the next generation of entry control and monitoring. The i31S combines IP technology with industry standards for access and physical security to deliver a system that improves communication for tenants, guests and visitors.

Fanvil i31S SIP Door Phone Key Features

  • Compatable with standard SIP protocol
  • Access control (By call, code, or IC/RFID card)
  • Built-in HD camera and IR
  • All-in-one (Access control, intercom, broadcasting)
  • Built-in 3W speaker and AEC for hands-free communication
  • Protection ratings: IP65 & IK10

The Fanvil i31S has flexibility, ease of use, and simple installation, making it ideal for enhancing security posture in schools, offices, and other public facilities.

Fanvil i31S SIP Door Phone - Technical Specifications

Benefits

  • SIP The most popular and compatible standard protocol - SIP - enables delivery of worry free communication and connectivity.
  • HD Video The 1280x720p (720p – progressive scan) camera produces vibrant highquality HD video and captures motion effortlessly.
  • Noise Reduction The embedded processing module reduces environmental noise and improves voice recognition up to 5 meters (approx. 16 feet).
    Multi-function The system is capable of performing multiple functions, i.e. video intercom and door phone and single device paging, and can be configurable with additional features.
  • HD Voice High definition voice using wideband G.722 coding produces clearer sound quality and extends the frequency range.
  • Anti-tamper Alarm sounds if/when cover is removed from the housing and reports the action to the control center.
  • Wide Range temperature adaptability The system design adapts to operating under various environmental conditions and temperatures (supports temperatures ranging from - 40 to +70 Celsius.)

Protocol

  • SIP 2.0(RFC3261)

Buttons

  • Number of buttons 1
  • Number of keypad Optional

Audio

  • Microphone 2
  • Loudspeaker 3W
  • Noise Reduction(NR) yes

Audio steam

  • Codec G.711,G.729,G.722,etc

Camera

  • Resolution
  • View angle 120°(H),109°(V)
  • IR Night Vision yes

Video stream

  • Codec H.263,H.263+,H.264
  • Resolution CIF,QCIF,VGA,4CIF,720P(HD)

RFID Card reader

  • Supported cards EM-4100,MIFARE one, NFC

Interface

  • Power supply 12V+ 15%/1A DC or POE
  • POE 802.3af (Class 0 - 12.95W) 48V/380mA
  • LAN 10/100BASE-TX s Auto-MDIX,RJ-45
  • Relay outputs NC/NO Contacts, MAX 30V/1A AC/DC
  • Active relay output 12V/700mA DC
  • Input two input detect ports
  • Output (2 relays) two output control ports

Mechanical

  • Housing material Aluminum alloy
  • Operating temperature range -40? to 70?
  • Storage temperature range -40? to 70?
  • Relative humidity 10% - 95%
  • Installation Surface mounted or Flush mounting
  • Dimensions 159X120X36 mm
  • Protection level IP65 and IK10
