Milesight MS-N5016-UPT - 4K H.265 PoE NVR 5000 Series

Tulis review Anda tentang produk ini

Stok: Tersedia

Rp 7.260.000,00

Sinopsis

"Milesight 16 Channel H.265 PoE NVR 5000 features 16 independent PoE ports"



  • PoE support with 16xPoE Ports of RJ45-10/100M (16xPoE ports design provides just one step to connect camera to NVR)

  • 8x1080P, 16x720P(Maximum supporting 8x1080P or 16x720P network cameras viewing at the same time)

  • HDMI & VGA (Providing both HDMI and VGA ports for users to choose according to their monitor types)

  • 2x3.5 inch HDD (2 x SATA of 3.5" HDD, providing 10TB capacity for each , up to 20TB total hard disk storage)

  • Video Content Analysis (With 10 detection modes, VCA greatly enhances the performance bringing comprehensive surveillance functions)

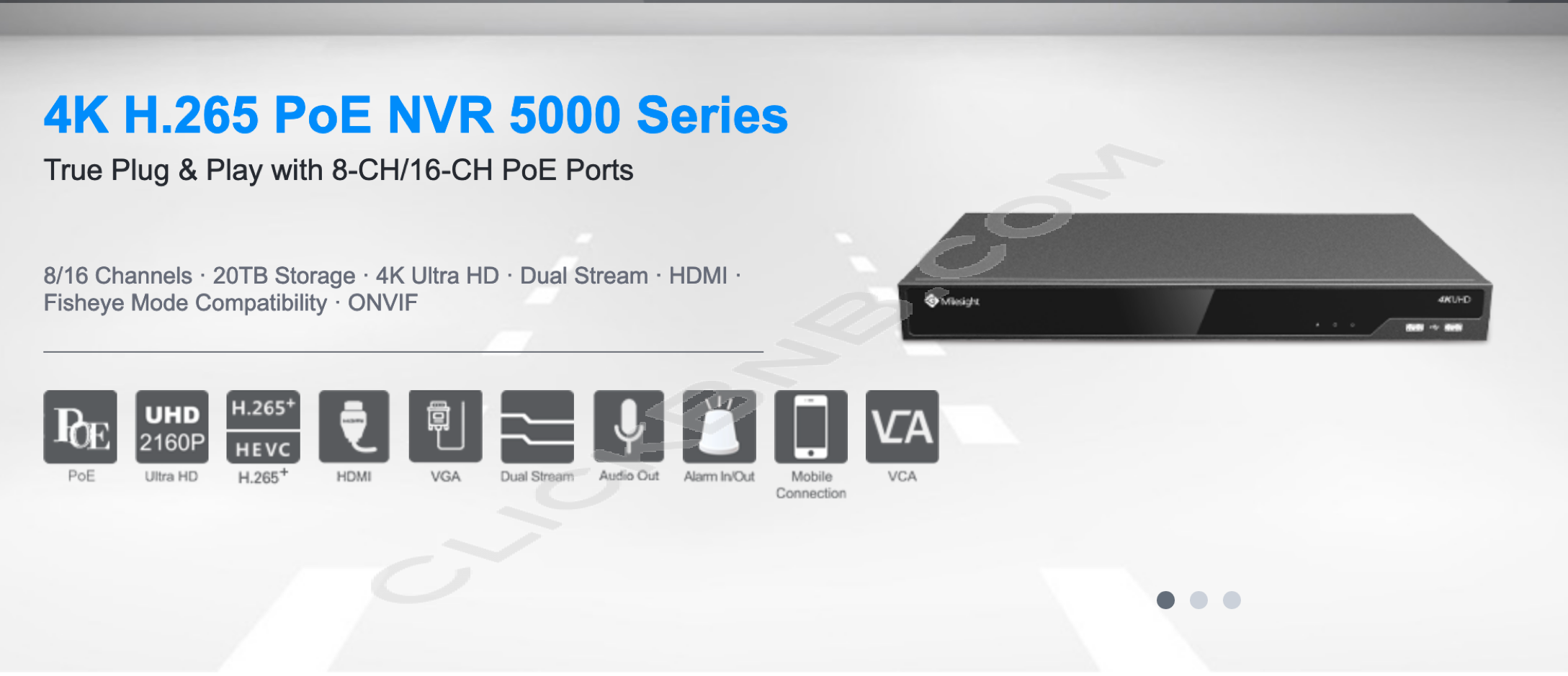

Milesight MS-N5016-UPT - 4K H.265 PoE NVR 5000 Series

Klik-ganda gambar di atas untuk melihat ukuran aslinya

Perkecil
Pebesar

Gambar Selengkapnya

Detil

Product Overview


Video/Audio Input
Name : Milesight MS-N5016-UPT 4K H.265 POE NVR 5000 Series
Network Video Input : 16-CH
Bandwithh Incoming : 160Mbps (incoming)
Bandwithh Outgoing : 160Mbps (Outgoing)

Video/Audio Output
HDMI Output : 1-CH, Resolution: 3840x2160/30Hz, 1920x1080/60Hz, 1920x1080/50Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz. (HDMI supports Audio Output)
VGA Output  : 1-CH, Resolution: 1920x1080/60Hz, 1920x1080/50Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz.
Dual Stream  : Support
Recording Resolution : 8MP/6MP/5MP/4MP/3MP/1080P/UXGA/720P/D1/VGA/CIF/QCIF
Synchronous Playback : 2*(30fps @8MP), 2*(30fps@6MP), 3*(20fps@5MP), 4*(20fps @4MP), 5*(30fps @3MP), 8*(30fps @1080P), 16*(30fps @720P)

Format
Video Compression : H.265+/H.265(HEVC)H.264+/H.264
Audio Compression : G.711/AAC

Storage
SATA : 2*SATA HDD (3.5")
Capacity :  Up to 10TB capacity for each HDD

Recording Management
Synchronous Recording : 16*5MP
Recording Type : Continous, Motion Detection, Alarm, Smart Event, Event (Motion detection, Alarm, Smart Event)
Snapshot : Manual Snapshot
Playback :Video Playback, Image Playback
Backup : Video backup, Image backup

Network
Protocol : IPv4/IPv6, TCP, UDP, RTP, RTSP, RTCP, HTTP, HTTPS, DNS, DDNS, DHCP, NTP, SNTP, SMTP, SNMP, UPnP, NFS

External Interface
Network Interface : 1*RJ45 100M/1000M
USB Interface : 1*USB 3.0; 2*USB 2.0
Audio Input/Output : -1*RCA
Alarm Input/Output : 4-CH/1-CH

PoE Interface
Interface : 16*RJ45 10M/100M
Power Output : ≤200W
Support Standard : IEEE 802.3af/at

General
Compatibility : ONVIF
Video Analysis : Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering,  Human Detection, People Counting
Power Supply : AC 100V~240V 50Hz~60Hz
Consumtion : ≤15W(Without HDD, without enabling PoE)
Working Conditions : Temperature: -10℃~+55℃  Humidity: 10%~90%
Dimensions : 440mm(W)X251mm(D)X44.4mm(H), Rack Mountable Chassis(1.0U Standard)
Weight : 3.5Kg
