Product Overview
Camera

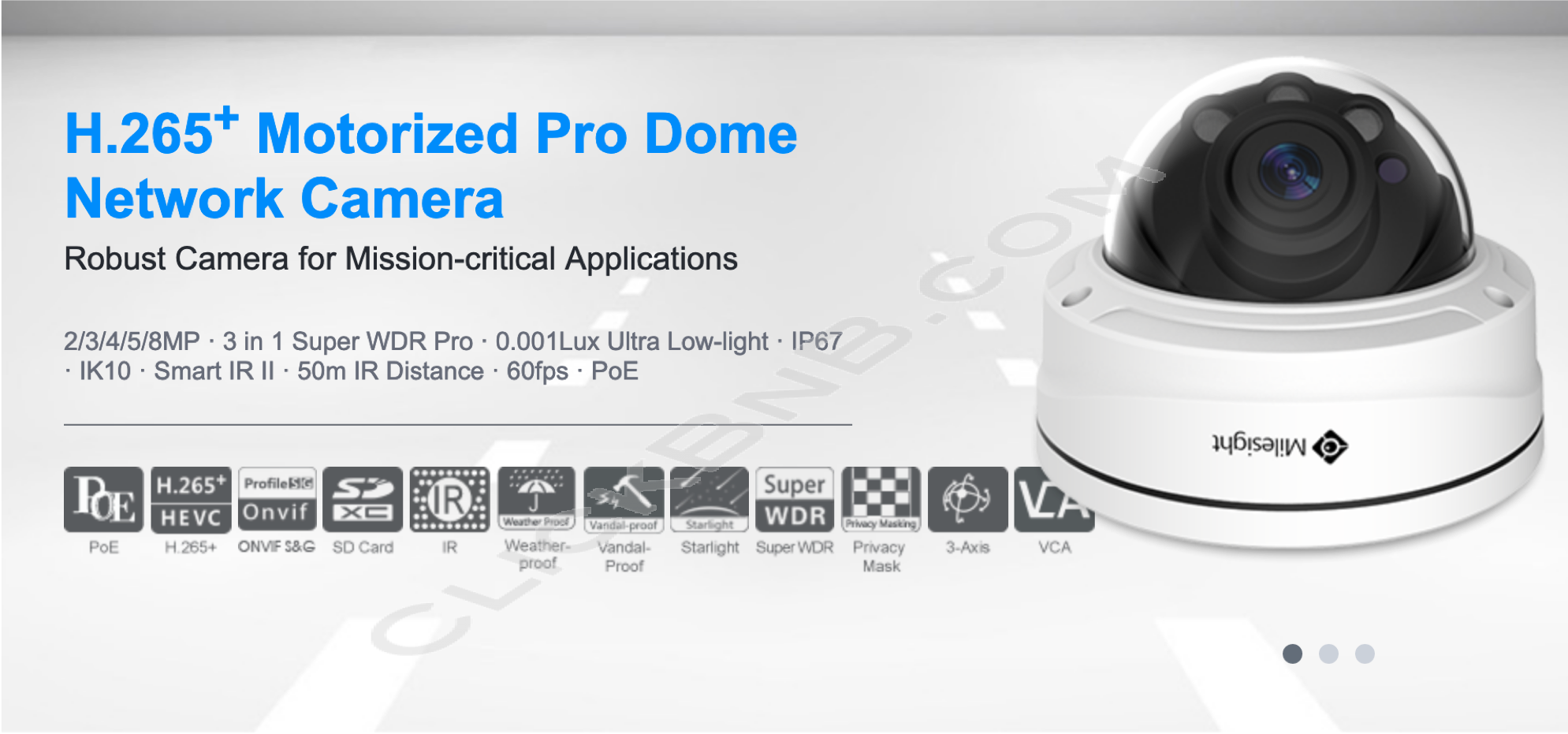

Name : MS-C2972-FPB 2MP H.265+ Motorized Pro Dome Network CameraImage Sensor : 1/2.8" Progressive Scan CMOS
Min. Illumination : Color: 0.002Lux @F1.2. BW : 0Lux with IR on
WDR : Super WDR up to 140db
Shutter Time : 1/100000s∼1/5s
IR Distance : Up to 50m(3.0∼10.5mm/2.7∼13.5mm)/ 90m(7∼22mm)
Day & Night : ICR Filter Auto Switch
S/N : >55dB
Lens
Lens : Motorized 3∼10.5mm/2.7∼13.5mm/7∼22mm@F1.4, P-Iris(Optional)
Field of View : H95°∼H33°/D107°∼D38°/V52°∼V18°(3∼10.5mm),
H92°∼H32°/D107°∼D37°/V51°∼V18°(2.7∼13.5mm),
H40°∼H16°/D46°∼D19°/V23°∼V9°(7∼22mm)
Mount : Φ14
Focus Control : Auto/Manual
Iris Control : Auto/Manual
(Optional for I Series)
Video
Max. Image Resolution : 1920x1080
Frame Rate : 120fps@(1920x1080)(Optional for Q Series), 90fps@(1920x1080)(Optional for T Series),
60fps@(1920x1080)(Optional for R Series),
30fps@(1920x1080, 1280x960, 1280x720, 704x576)
60fps@(1920x1080)(Optional for R Series),
30fps@(1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream : 30fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)
Tertiary Stream : 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)
Video Compression : H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate: 16Kbps~16Mbps (CBR/VBR adjustable)
Image Settings : Brightness/Contrast/Saturation/Sharpness
Audio
Audio Compression : G.711/AAC/G.722/G.726
Audio I/O : Built-in Microphone and 1 Audio Output InterfaceNetwork
Ethernet : 1*RJ45 10M/100M Ethernet Port
Network Storage : NAS(Support NFS, SMB/CIFS)
Protocols : IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
System
Alarm I/O : 1/1
Storage : Support microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced Function : Privacy Masking, BLC, HLC, 2D DNR, 3D DNR, ROI, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP Support : Yes, Voice&Video-over-IP
Event Trigger : Motion Detection, Network Disconnection, External Input, Audio Alarm, etc.
Event Action : FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc.
Video Content Analysis (VCA): Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Human Detection, People Counting, Object Left, Object Removed
System Compatibility : ONVIF Profile G & Q & S & T
General
Working Temperature : -40℃~60℃
Working Humidity : 0∼90%(Non-condensing)
Power Supply : PoE(802.3af)/DC 12V±10%
Power Consumption : 8W MAX
12W MAX(with IR on)
Weather Proof : Up to IP67-rated for weather -resistant performance
Housing : Vandal-proof IK10-rated Metal Housing
Dimensions : Φ143mmx108.4
Weight : 1100g
