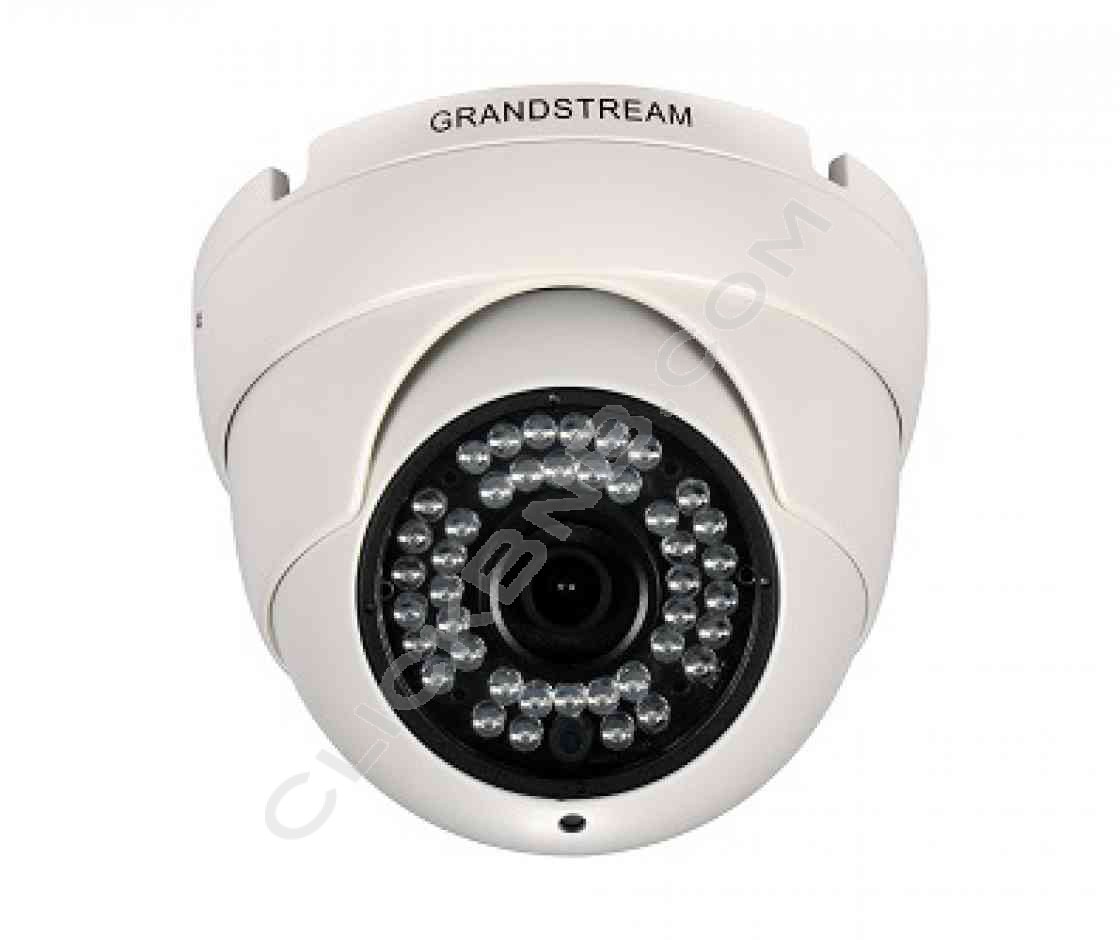

Grandstream GXV3610_HD - Outdoor Infrared Fixed Dome - HD IP Camera (V2)

Tulis review Anda tentang produk ini

Stok: Tersedia

Rp 4.200.000,00


"HD 720p Outdoor IP Camera, 1.2 megapixel Progressive Scan CMOS image sensor, 3.6mm lensIP66 certified weatherproof casing, Infrared, support SIP/VoIP Audio Video Streaming"
The GXV3610 v2 series are weather-proof dome IP cameras with infrared sensors and a high definition 3.6mm lens – making them ideal for wide-angle monitoring of nearby subjects in environments such as banks, hotels, retails, offices, warehouses, and building entrances. The series is ideal for use in areas where lighting may be a concern thanks to the cameras infrared sensors. The GXV3610 v2 series are also IP66-certfied weatherproof IP cameras, which allow them to be used in nearly any outdoor setting. Like all Grandstream IP Video Surveillance cameras, the GXV3610 v2 series is OnVIF compliant and features built-in PoE.


Grandstream GXV3610_HD - Outdoor Infrared Fixed Dome - HD IP Camera (V2)

Klik-ganda gambar di atas untuk melihat ukuran aslinya


Gambar Selengkapnya


Product Overview

The GXV3610 v2 series are weather-proof Infrared (IR) fixed dome IP cameras with a high-definition 3.6mm lens - making them ideal for wide-angle monitoring of nearby subjects in environments such as banks, hotels, retail, offices, warehouses, and building entrances. The camera’s advanced Image Sensor Processor (ISP) is powered by a state of the art auto-exposure/auto-white balance algorithm which allows for exceptional performance in all lighting conditions. Pair the GXV3610 v2 series with Grandstream’s GVR3550 Network Video Recorder (NVR), which supports plug-and-play with all Grandstream IP cameras, to create a powerful recording and monitoring solution. The GXV3610 v2 series can also be managed with GSURF Pro (Grandstream’s FREE video Management Software that allows simultaneous control of up to 72 cameras) along with other ONVIF-complaint video management systems. This indoor/outdoor HD IP Camera features industry-leading SIP/VoIP for 2-way audio and video streaming to both video and mobile phones. It contains integrated PoE, IR-CUT for day and night mode, and a flexible HTTP API for easy integration with other surveillance systems.

Designed for both indoor and outdoor deployments, the GXV3610_HD features an HD camera with a 3.6mm wide angle lens for an exeptional viewing area. Motion detection and notifications on a PC client is also supported.

The GXV3610_HD features cutting edge H.264 real-time video compression with excellent image clarity video for streaming to mobile phones and video phones, integrated PoE, IR-CUT for day/night mode, and advanced security protection

Grandstream GXV3610_HD Dome Camera Key Features

  • GXV3610_HD: 1.2 megapixel Progressive Scan CMOS image sensor, 720p resolution, 3.6mm lens
  • Built in two-way audio system and interal microphone
  • Advanced multi-streaming rate real-time H.264, Motion JPEG at 1080p resolutions in full frame rate
  • Pre/post event recording buffer
  • Supports Motion Detection and can send notifications when security events occur to IP Video Phones, IP Phones, screenshot to email, and more
  • Support both variable bit rate and variable frame rate
  • Built-in high performance streaming server to allow at least 4 simultaneous viewers
  • Integrated Power-over-Ethernet (802.3af)
  • Full ONVIF conformance with extensions in the near future
  • IP66-certified weatherproof casing


  • Video Compression H.264, MJPEG
  • GXV3610_HD: 1/3”, 1.2 Megapixel Progressive Scan CMOS, 1280H x 960V
  • Image Sensor Sensitivity Day & night mode, exceptionally low noise levels and low-light sensitivity. Shutter: 1/10000 – 1/30 second
  • Focal Length 3.6mm
  • Aperture F1.8
  • Field Angle (FOV) 100.2°(D) x 77°(H) x 54°(V)
  • IR Cut Filter Yes, mechanical
  • Day & Night Mode IR LED covering up to 10m
  • Minimum Illumination 0.05 Lux, 0 lux with IR
  • Responsivity  5.48V/lux-sec (550nm)
  • Pixel Dynamic Range Wide dynamic range of 120dB with SNRMAX 44dB
  • Supported Maximum Video Resolution and Frame Rate 1280x960 (25fps); 1280x720 (30fps)
  • Video Bit Rate 32 Kbps ~ 8 Mbps, multi-rate for preview & recording
  • Audio Input Built-in Microphone
  • Audio Output Line-Out, 600Ω, 0.707 Vrms
  • Audio Compression G.711u/a, AAC
  • Embedded Analytics Motion Detection (up to 16 target areas)
  • Pre-/post-alarm Buffer 8MB
  • Snapshots Triggered upon events, send via email/FTP
  • SIP/VoIP Support Yes
  • Power over Ethernet (PoE) IEEE 802.3af class 0
  • External Cable Connection Network: RJ45, 10M/100M auto-sensing
    3.5mm Line-Out
  • Power Input
  • Dimensions (D x L) 120mm (D) x 100mm (H)
  • Weight 0.7kg
  • Temperature / Humidity Operating: -20°C ~ +50°C (-4°F ~ 122°F), 10–90% RH (non–condensing)
    Storage: -30°C ~ +60°C (-22°F ~ 140°F)
  • Power Adapter Output: 12VDC/1A; Input: 100–240VAC, 50–60Hz
  • Casing IP66 compliant weather-proof metal case
  • Compliance FCC Part 15,Subpart B Class B; EN 55022 Class B, EN 61000-3-2, EN 61000-3-3, EN 55024, EN 60950-1; C-tick AS/NZS CISPR 22, CISPR 24; IP66
