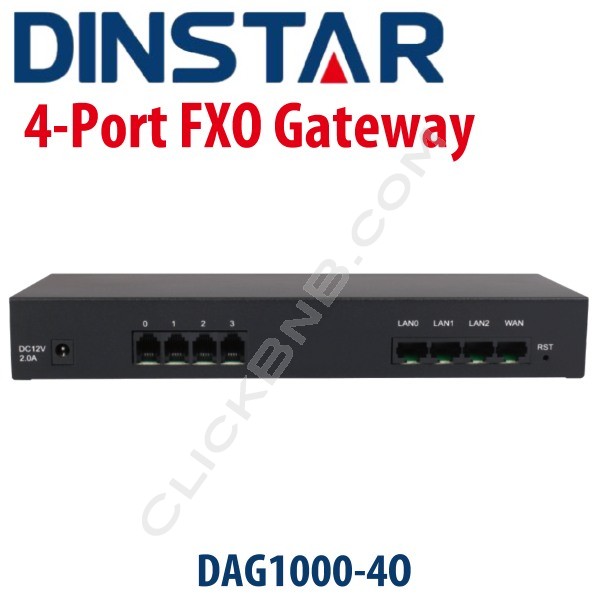

Dinstar DAG1000-4O Technical Specifications
Physical Interfaces
- DAG1000-4O, 4 FXO, RJ11
- 1 X WAN, 2 X LAN, 10/100Mbps,
- RJ-45
FXO
- Connector: RJ11
- Dial Mode: DTMF/Pulse Dialing
- Caller ID: FSK, DTMF
- Polarity Reversal
- Answer Delay
- Busy Tone Detection
- No Current Detection
Voice Capabilities
- Codecs: G.711A/U law, G.723.1, G.729A/B, G.726
- Silence Suppression
- Comfort Noise Generator(CNG)
- Voice Activity Detection(VAD)
- Echo Cancellation: G.168 with up to 128ms
- Adaptive (Dynamic) Jitter Buffer
- Programmable Gain Control
- T.38 Pass-through
- Modem/POS
- DTMF mode: Signal/RFC2833/INBAND
- VLAN 802.1P/802.1Q
- Layer3 QoS and DiffServ
VoIP
- Protocol : SIP v2.0 (UDP/TCP),RFC3261, SDP,RTP(RFC2833), RFC3262, 3263,3264,3265,3515,2976,3311
- SIP TLS/SRTP
- RTP/RTCP, RFC2198, 1889
- RFC4028 Session Timer
- RFC3266 IPv6 in SDP
- RFC2806 TEL URI
- RFC3581 NAT,rport
- Outbound Proxy
- DNS SRV/ A Query/NATPR Query
- SIP Trunk
- Early Media/Early Answer
- NAT:STUN, Static/Dynamic NAT
Maintenance
- SNMP v1/v2/v3
- TR069, TR181
- Auto Provisioning
- Web/Telnet
- Configuration Backup/Restore
- Firmware Upgrade via Web
- CDR
- Syslog
- Network Capture
- NTP/Daylight Saving Time
- IVR local Maintenance
- Cloud-based Management
Network
- Static / Dynamic IP, PPPoE
- DHCP Client
- IPv4/IPv6
- TCP, UDP, TFTP, FTP, ARP, RARP, Ping, NTP, SNTP, HTTP/HTTPS, DNS
- Ping / Tracert
- DHCP Option 66,120,121
- OpenVPN
Software Features
- Port Group
- Web ACL
- Telnet ACL
- Action URL
- Digitmap
- Routing Rules based Prefixes
- Caller/Called Number
- Manipulation
- Speed Dial
Environmental
- 1+1 Power Supply, 100-240VAC, 50-60 Hz
- Power Consumption: 12W
- Operating Temperature. 0 ℃ ~ 45 ℃
- Storage Temperature: -20 ℃ ~80 ℃
- Humidity: 10%-90% Non-Condensing
- Dimensions (W/D/H): 242*152*40mm
- Unit Weight: 1.2kg
- Compliance: CE, FCC
