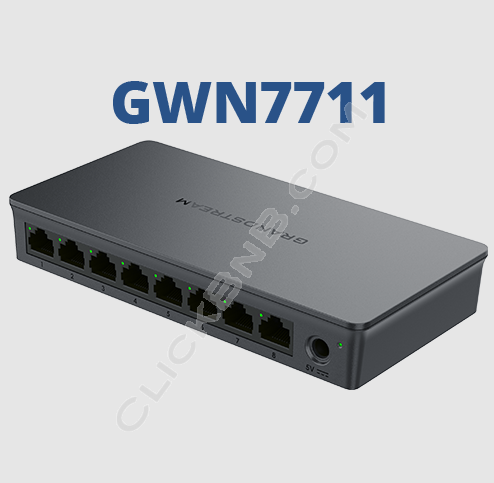

Grandstream GWN7711 - Layer 2 Lite Managed Network Switch

Grandstream GWN7711 Technical Specifications

General

• 8 Gigabit ethernet ports
• Smart power control to support dynamic PoE/PoE+ power allocation per port for the PoE models
• Support Detection, Cable Test and Port Mirror to quickly locate network faults
• LED's Indicator; Per Port: Link/Activity/PoE power state, Per Device : Power
• Whisper Quiet : Fanless
• Convenient and Intelligent management through the Web UI and Cloud (GDMS)
• Broadcast/Multicast/Unicast Strom Control to monitor traffic levels.
• Built in Qos allows for priorization of network traffic.

Network Protocol

• IPv4
• IEEE 802.3i
• IEEE 802.3u
• IEEE 802.3ab
• IEEE 802.3x
• IEEE 802.1p
• IEEE 802.3af
• IEEE 802.3at

Auxilliary Ports

• 1x Reset Pinhole

Forwarding Mode

• Store and Forward

Total Non Blocking Throughput

• 8 Gbps

Switching Capability

• 16Gbps

Jumbo Frame

• 2K/3K/4K/5K/6K/7K/8K/9K/12K/15K

Forwarding Mode

• 11.9Mpps

Packet Buffer

• 4MB

MAC

• 8K MAC address capacity
• Support MAC address search

VLAN

• 4K VLANs
• Port based VLAN, 802.1Q VLAN

LAG

• 4

Multicast

• IGMP Snooping, Report Message Suppression

Qos

• Auto prioritization of the incoming port of the packet
• Priority Mapping
• Queue scheduling, including SP, WRR, WFQ
• Supports port priority, 802.1p priority and DSCP priority
• Bandwidth control
• Storm control
• Rate limit

DHCP

• DHCP CLient

Maintenance

• Backup and Restore
• System reboot
• Factory reset
• Firmware upgrade
• monitoring including port statistics
• port mirroring
• cable test and loop prevention
• ping and pong watchdog

Security

• Storm control
• Port VLAN isolation
• Filtering MAC adress
• Kensington Security Slot (Kensington Lock) support

Mounting

• Desktop
• Wall-Mount

LEDs Indicators

• Per Port: Link/Activity - Green
• GWN7711P Port 1-4: PoE power state - Yellow
• Per Device: Power - Green

Environmental

• Operating Temperature : 0°C to 40°C (32 to 104°F)
• Storage Temperature : -20°C to 60°C ( -4 to 140°F)
• Operating Humidity: 10% to 90% (Non-condensing)
• Storage humidity: 10% to 90% (Non-condensing)

Dimensions

• Unit : 164mm (L) x 80mm (W) x 30mm (H)
• Package : 202mm (L) x 166mm (W) x 54mm (H)

Enclosure

• Plastic

Weight

• Unit weight : 0.17Kg
• Entire Package : 0.38Kg

Package Content

• 1x Switch
• 1x QIG
• 1x Power Adapter

Compliance

• FCC
• CE
• RCM
• IC
