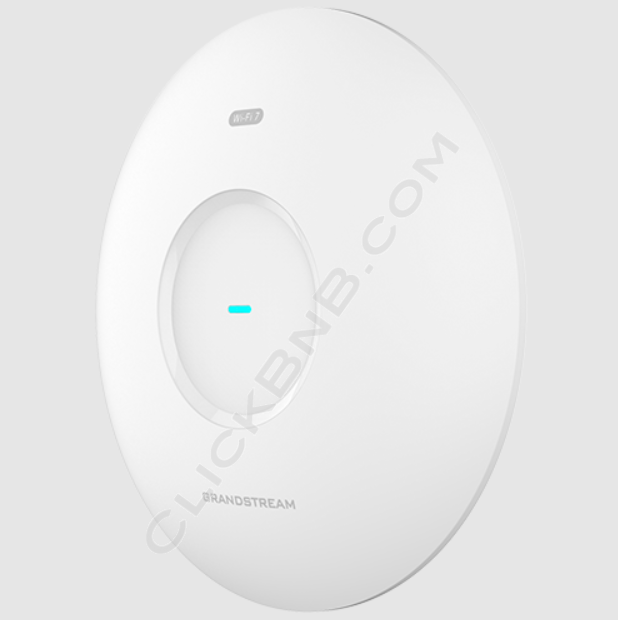

Grandstream GWN7670 Technical Specification
WiFi Standards
- IEEE 802.11 a/b/g/n/ac/ax/be
Antennas
- 5 single frequency antennas
- 2.4GHz x 2, gain 3.5dBi
- 5GHz x 2, gain 5.5dBi
- BT gain 3.5dBi
WiFi Data Rates
- 5G:
- IEEE 802.11be: Up to 2882 Mbps
- IEEE 802.11ax: 7.3 Mbps to 2402 Mbps
- IEEE 802.11ac: 6.5 Mbps to 1732 Mbps
- IEEE 802.11n: 6.5 Mbps to 600 Mbps
- IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
- 2.4G:
- IEEE 802.11be: Up to 688 Mbps
- IEEE 802.11ax: 7.3 Mbps to 574 Mbps
- IEEE 802.11n: 6.5Mbps to 300 Mbps
- IEEE 802.11b: 1, 2, 5.5, 11 Mbps
- IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
*Actual throughput may vary depending on many factors including environmental conditions, distance between devices, radio interference in the operating environment and mix of devices in the network
Frequency Bands
- 2.4GHz Radio: 2400 - 2483.5 MHz
- 5GHz Radio: 5150 - 5895 MHz
*Not all frequency bands can be used in all regions
Channel Bandwidth
- 2.4G: 20 and 40 MHz
- 5G: 20, 40, 80, and 160MHz
WiFi and System Security
- WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES); WPA3, anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate and random default password per device
MIMO
- 2x2:2 2.4GHz
- 2x2:2 5GHz
Coverage Range
- Up to 175 meters
- *coverage range can vary based on the environment
Maximum TX Power
- 5G: 26dBm
- 2.4G: 26dBm
- *Maximum power varies by country, frequency band and MCS rate
Receiver Sensitivity
- 2.4G
- 802.11b: -96dBm@1Mbps, -88dBm@11Mbps; 802.11g: -93dBm @6Mbps, -75dBm@54Mbps;
- 802.11n 20MHz: -73dBm @MCS7; 802.11n 40MHz:-70dBm @MCS7
- 802.11ax 20MHz: -60dBm @MCS11; 802.11ax 40MHz: -58dBm @MCS11
- 802.11be 20MHz: -65dBm @MCS11; 802.11be 40MHz: -62dBm @MCS11;
- 5G
- 802.11a: -92dBm @6Mbps, -74dBm @54Mbps;
- 802.11n 20MHz: -73dBm @MCS7; 802.11n 40MHz:-70dBm @MCS7;
- 802.11ac 20MHz: -67dBm@MCS8; 802.11ac: 40MHz:- 63dBm @MCS9; 802.11ac 80MHz: -59dBm @MCS9;
- 802.11ax 20MHz: -60dBm @MCS11; 802.11ax 40MHz: -58dBm @MCS11;802.11ax 80MHz: -56dBm @MCS11, 802.11ax 20MHz: -60dBm @MCS11; 802.11ax 40MHz: -58dBm @MCS11;802.11ax 80MHz: -56dBm @MCS11
- 802.11be 20MHz: -59dBm @MCS13; 802.11be 40MHz: -56dBm @MCS13; 802.11be 80MHz: -54dBm @MCS13; 802.11be 160MHz: -52dBm @MCS13
SSIDs
- 32 SSIDs total, 16 per radio (2.4GHz & 5GHz)
Concurrent clients
- 256
Network Interfaces
- 2x 2.5G Ethernet WAN/LAN
Auxiliary Ports
- 1x Reset Pinhole, 1x Kensington lock
Bluetooth®
- BLE 5.3
LEDs
- 1 tri-color LED for device tracking and status indication
Mounting
- Indoor wall or ceiling mount, kits included
LEDs
- 1 tri-color LEDs for device tracking and status indication
Network Protocols
- IPv4, IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM
QoS
- 802.11e/WMM, VLAN, TOS
Network Management
- Embedded controller can manage up to 50 local GWN APs
- GWN. Cloud offers a free cloud management platform for unlimited GWN APs
- GWN Manager offers premise-based software controller for up to 3,000 GWN APs
Power and Green Energy Efficiency
- PoE/PoE+ 802.3af/at;
- Maximum Power Consumption:14.5W
Environmental
- Operation: 0°Cto 45°C
- Storage: -30°C to 60°C
- Humidity: 10% to 90% Non-condensing
Physical
- Unit Dimension: 185mmx185mmx44.5mm; Unit Weight: 527g
- Unit Weight: 527g
- Entire Package Dimension: 228.5mmx220mmx79mm;
- Entire Package Weight: 877g
Package Content
- GWN7670 Wi-Fi 7 Wireless AP, Mounting Kits, Quick Start Guide
Compliance
- FCC, CE, RCM, IC
