Grandstream GWN7703 - Unmanaged Network Switch [24 Ports GigE]

Tulis review Anda tentang produk ini

Stok: Tersedia

Rp 1.408.368,00

Sinopsis

Grandstream GWN7703 Unmanaged Network Switch


The Grandstream GWN7700 series introduces unmanaged network switches, providing a cost-effective method to add high-speed Gigabit connectivity to home offices and small/medium businesses. These switches require no configuration, offering a desktop or wall-mountable design with auto MDI/MDIX to eliminate crossover cable needs. Each port supports auto-negotiation, allowing compatibility with 10/100/1000Mbps devices.


Grandstream GWN7703 Key Features:



  • 24× gigabit ports

  • Green tech reduces power use.

  • LED Indicators for Link, Activity, Speed, and Power.

  • Auto MDI/MDIX for all ports.

  • Storm Control (fixed to 100Mbps) for traffic monitoring.

  • QoS: Supports Default Strict Priority (when present).


In summary, the GWN7700 series of unmanaged network switches efficiently enhances connectivity. Its features like auto MDI/MDIX, and auto-negotiation cater to diverse networking needs, making it an ideal choice for various setups.

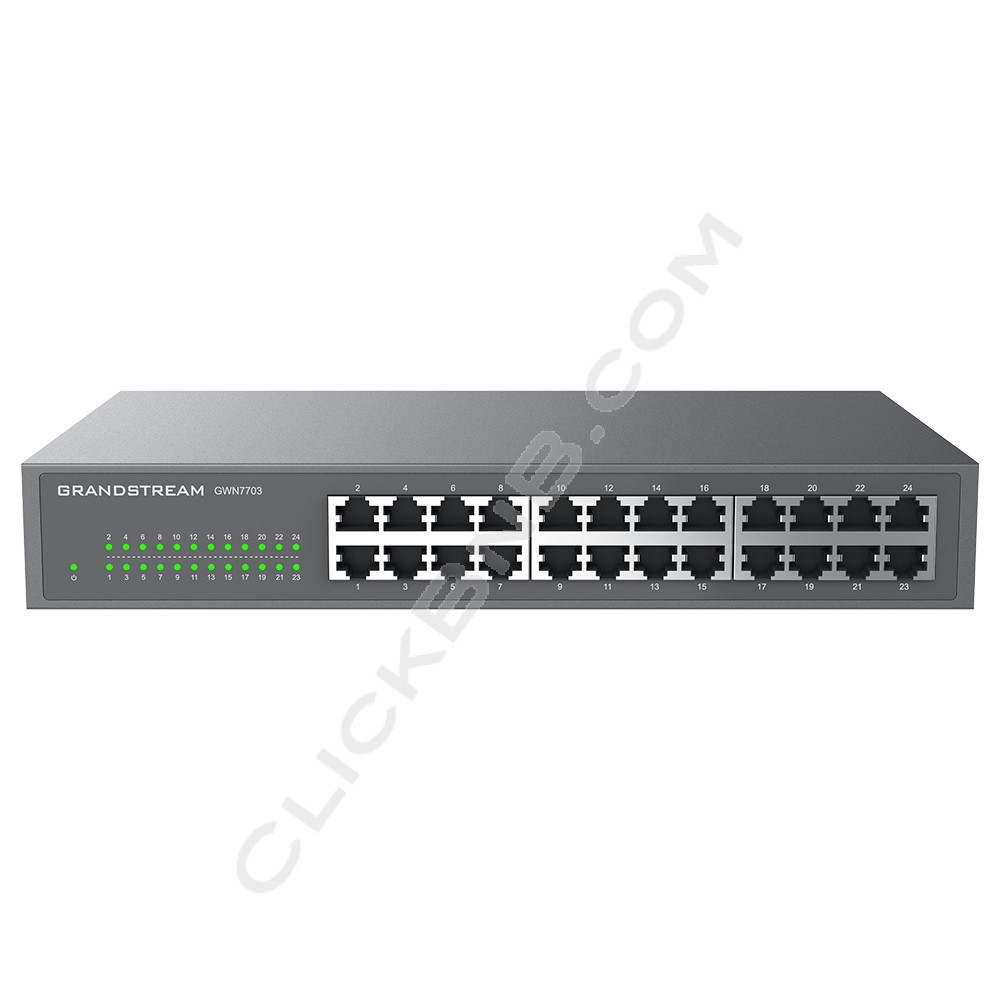

Grandstream GWN7703 - Unmanaged Network Switch [24 Ports GigE]

Klik-ganda gambar di atas untuk melihat ukuran aslinya

Perkecil
Pebesar

Gambar Selengkapnya

Detil

Grandstream GWN7703 Technical Specifications

General

  • 24× 2.5 gigabit ports
  • Enclosure: metal
  • Mount: Deskop/Rack mount

Standards and Protocols

  • IEEE 802.3i
  • IEEE 802.3u
  • IEEE 802.3ab
  • IEEE 802.3x
  • IEEE 802.1p
  • IEEE 802.3af
  • IEEE 802.3at

Port Features

  • 24× 10/100/1000Mbps RJ45 Ports
  • AUTO Negotiation
  • AUTO MDI/MDIX

Network Media

  • 1000Base-T/100Base-TX/10Base-T, Half/Full-Duplex

LED Indicators

  • Per port: Link/Activity Green
  • Per device: Power Green

Mac Address Table

  • 8K entries

Switch Capacity

  • 48Gbps

Jumbo Frame

  • 10KB

Advanced Features

  • Mac Address Auto-Learning And Auto-Aging
  • IEEE 802.3x Flow Control
  • Half duplex backpressure

Power Adapter

  • Internal 100-240V AC
  • 50/60Hz,18W

Max Power Consumption by Base System

  • 13W@220V/50Hz

Environmental

  • Operating Temperature: 0 to 40 °C (32 to 104 °F)
  • Storage Temperature: -20 to 60 °C (-4 to 140 °F)
  • Operating Humidity: 10% to 90% Non-condensing
  • Storage Humidity: 10% to 90% Non-condensing

Dimensions (L x W x H)

  • Unit: 280 x 180 x 44mm
  • Package: 366 x 211 x 53mm

Weight

  • Unit: 1.35KG
  • Entire Package: 1.95KG

Package

  • 1x Switch
  • 1x 1.2m AC Cable
  • 1x Quick Installation Guide (QIG)
  • Rack-mounting Standard Brackets
  • 4x Rubber Feet

Compliance

  • FCC
  • CE
  • RCM
  • IC
  • UKCA
