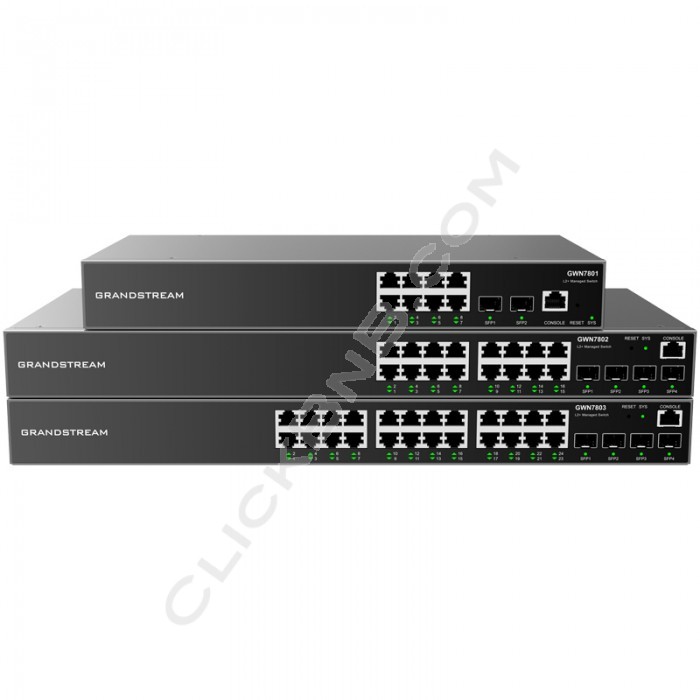

Grandstream GWN7801 Layer 2+ Managed Network Switch (8 x GigE, 2 x SFP)

Grandstream GWN7801 Layer 2+ Managed Network Switch Technical Specifications:

Gigabit Ethernet Ports

• 8 Ports

Gigabit SFP Ports

• 2 Ports

Integrated Power Supply

• 30W

Total non-blocking throughput

• 10Gbps

Switching Capability

• 20Gbps

Forwarding Rate

• 14.886Mpps packets per second

Switching

• 8K static, dynamic and filtering MAC addresses
  • 4K VLANs, port-based VLAN, IEEE 802.1Q VLAN tagging, voice VLAN
  • VLAN virtual interface
  • GVRP (pending)
  • 8 link aggregation groups

Multicast

• IGMP Snooping, MLD Snooping, MVR

QoS/ACL

• Auto detection and prioritization of voice/video/RTP/SIP/other latency-sensitive packets (pending)
  • Port priority
  • Priority mapping
  • Queue scheduling, including SP, WRR, WFQ, SP-WRR and SP-WFQ
  • Traffic shaping
  • Rate limit
  • 1.5K ACL for Ethernet, IPv4 and IPv6

Security

• User hierarchical management and password protection, HTTPS, SSH, Telnet
  • 802.1X authentication
  • AAA authentication including RADIUS, TACACS+
  • Storm control
  • Port isolation, port security, sticky MAC
  • Filtering MAC address
  • IP source guard, DoS attack prevention, ARP inspection
  • DHCP Snooping
  • Loop protection including BPDU protection, root protection and loopback protection
  • Kensington Security Slot (Kensington Lock) support

Dimensions

• 30mm(L)*175mm(W)*44(H) 440mm(L)*200mm(W)*44mm(H)

Unit Weight

• 1.8 kg

Package Contents

• Switch, 1x 1.2m(10A) AC Cable, Rack-mounting Standard Brackets, 1x Ground Cable,
  4x Rubber Feet, 2x Lug Ear
