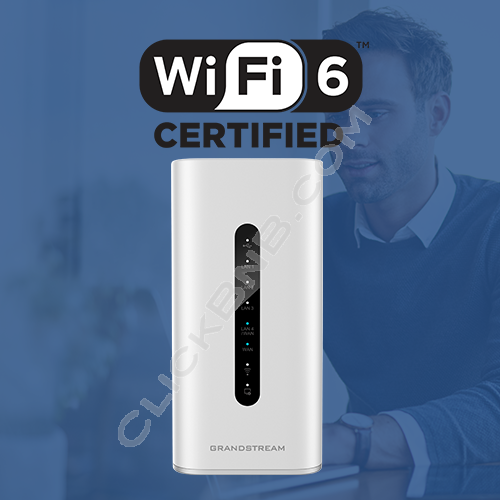

Grandstream GWN7062 Technical Specifications :
Memory and NAT Sessions
- 512MB RAM, 120K NAT sessions
VPN NAT Routing & IPSec VPNPerformance
- 2 Gbps NAT routing and 850Mbps IPSec VPN performance
Antennas
- 4 individual external antennas, 2 per band
- 2.4GHz, gain 5.0dBi
- 5 GHz, gain 5.0dBi
MIMO
- 2×2:2 5GHz
Wi-Fi
- Security WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES); WPA3, anti-hacking secure boot and critical data/control
5G
- IEEE 802.11ac: 6.5 Mbps to 867 Mbps
- IEEE 802.11n: 6.5 Mbps to 300 Mbps
- IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
2.4G
- IEEE 802.11n: 6.5 Mbps to 300 Mbps
- IEEE 802.11b: 1, 2, 5.5, 11 Mbps
- IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
- *Actual throughput may vary depending on many factors including environmental conditions, distance between
- devices, radio interference in the operating environment and mix of devices in the network
Frequency Bands
- 2.4GHz radio: 2400 – 2483.5MHz
- 5GHz radio: 5150 - 5850MHz
- Wi-Fi and System Security WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES); WPA3, anti-hacking secure boot and critical data/control
- lockdown via digital signatures, unique security certificate and random default password per device
Maximum TX Power
- 5G: 26dBm
- 2.4G: 27dBm
- *Maximum power varies by country, frequency band and MCS rate
2.4G
- 802.11b: -96dBm@1Mbps, -88dBm@11Mbps
- 802.11g: -93dBm @6Mbps, -75dBm@54Mbps;
- 802.11n 20MHz: -73dBm @MCS7; 802.11n 40MHz: -70dBm @MCS7
- 802.11ax 20MHz: -64dBm @ MCS11; 802.11ax 40MHz: -63dBm @MCS11
5G
- 802.11a: -92dBm @6Mbps, -74dBm @54Mbps;
- 802.11n: 20MHz: -73dBm @MCS7; 802.11 n 40MHz: -70dBm @MCS7
- 802.11ac 20MHz: -70dBm@MCS8; 802.11ac: HT40:- 66dBm @MCS9; 802.11ac 80MHz: -62dBm @MCS9;
- 802.11ax 20MHz: -64dBm @ MCS11; 802.11ax 40MHz: -61dBm @MCS11;802.11ax
- 80MHz: -58dBm @MCS11
Auxiliary Ports
- 1x USB 3.0 port, 1x Reset button, 1x SYNC button
Network Protocols
- , IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM
VPN
- Client: L2TP, PPTP, IPSec, OpenVPN
- Server: IPSec, OpenVPN
Firewall
- DDNS, Port Forwarding, DMZ, UPnP, Anti-DoS, traffic rules, NAT, ALG
Network Management
- GWN7062 embedded controller can manage it self and up to 50 GWN Aps
- GWN.Cloud offers a free cloud management platform for unlimited GWN7062 routers and
- GWN APs (coming soon)
Power & Green Energy Efficiency
- Universal power adaptor included
- Input 100-240VAC 50-60Hz
- Output: 12VDC 1.5A (18W);
Humidity
- >10% to 90% Non-condensing
Package Contents
- GWN7052/GWN7052F Router, Universal Power Supply, Network Cable, Quick Installation Guide
Physical
- Unit Dimension: 95mm(L)x95mm(W)x193mm(H); Unit Weight: 690g
- Entire Package Dimension: 286mm(L)x126.5mm(W)x105mm(H); Entire Package Weight:960g
Compliance
- FCC, CE, RCM, IC, UKCA
