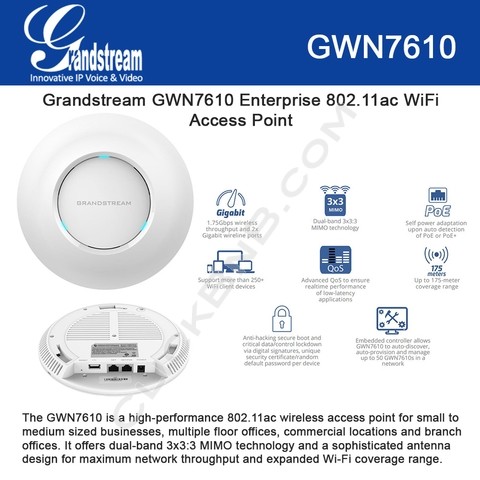

Grandstream GWN7610 - Enterprise 802.11ac WiFi Access Point

Product Overview

The GWN7610 is a high-performance 802.11ac wireless access point for small to medium sized businesses, multiple floor offices, commercial locations and branch offices. It offers dual-band 3x3:3 MIMO technology and a sophisticated antenna design for maximum network throughput and expanded Wi-Fi coverage range. To ensure easy installation and management, the GWN7610 uses a controller-less distributed network management design in which the controller is embedded within the product’s web user interface. This allows each access point to manage a network of up to 50 GWN7610s independently without needing seperate controller hardware/software and without a single point-of-failure. This wireless access point can be paired with any third party routers as well as Grandstream GWN series routers. With support for advanced QoS, low-latency real-time applications, 250+ client devices per AP and dual Gigabit network ports with PoE/PoE+, the GWN7610 is an ideal wireless access point for large and small wireless network deployments.

The Grandstream GWN7610 Key Features

The GWN7610 is a high-powered 802.11ac WiFi Access Point that is ideal for office buildings, multiple floor locations, branch offices and commercial/retail settings. It works with any third party router/switch and offers a number of significant competitive advantages including tremendous network throughput, outstanding wireless coverage range, market-leading security features, and embedded network management capabilities without external controllers or single point of failure.

Wi-Fi Standards

• IEEE 802.11 a/b/g/n/ac

Antennas

• 3x 2.4 GHz, gain 3 dBi, internal antenna
• 3x 5 GHz, gain 3 dBi, internal antenna

Wi-Fi Data Rates

• IEEE 802.11ac: 6.5 Mbps to 1300 Mbps
• IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
• IEEE 802.11n: 6.5 Mbps to 450 Mbps
• IEEE 802.11b: 1, 2, 5.5, 11 Mbps
• IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

Frequency Bands

• 2.4GHz radio : 2.400 - 2.4835 GHz
• 5GHz radio: 5.150 - 5.250 GHz, 5.725 - 5.850 GHz

Channel Bandwidth

• 2.4G: 20 and 40 MHz
• 5G: 20,40 and 80 MHz

Wi-Fi Security

• WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES)

MIMO

• 3x3:3 2.4GHz, 3x3:3 5GHz

Coverage Range

• 575 ft. (175 meters)

Maximum TX Power

• 5G: 26dBm
• 2.4G: 26dBm

Reciever Sensitivity

• 2.4G
  802.11b:-92dBm@11Mbps; 802.11g:-76dBm@54Mbps; 802.11n 20MHz:
  -73dBm@MCS7; 802.11n 40MHz:-70dBm@MCS7
• 5G
  802.11a:-94dBm@6Mbps; 801.11a:-77dBm@54Mbps; 802.11ac 20MHz:
  -69dBm@MCS8; 802.11ac HT40:-65dBm@MCS9; 802.11ac 80MHz:-61dBm@MCS9* Receiver sensitivity varies by frequency band, channel width and MCS rate

SSIDs

• 16 SSID per radio

Concurrent Clients

• s 250+

Network Interfaces

• 2x autosensing 10/100/1000 Base-T Ethernet Ports

Auxiliary Ports

• 1x USB 2.0 port, 1x Reset Pinhole, 1x Kensington lock

Mounting

• Indoor wall mount or ceiling mount, kits included

LEDs

• 3 tri-color LEDs for device tracking and status indication

Network Protocols

• IPv4, 802.1Q, 802.1p, 802.1x, 802.11e/WMM

QoS

• 802.11e/WMM, VLAN, TOS

Network Management

• Embedded controller in GWN7610 allows it to auto-discover, auto-provision and manage up to 50 GWN7610s in a network

Auto Power Saving

• Self power adaptation upon auto detection of PoE or PoE+

Power and Green Energy Efficiency

• DC Input: 24VDC/1A
• Power over Ethernet 802.3af/802.3at compliant
• Maximum Power Consumption:13.8W

Environmental

• Operation: 0°C to 40°C
• Storage: -10°C to 60°C
• Humidity: 10% to 90% Non-condensing

Physical

• Unit Dimension: 205.3 x 205.3 x 45.9mm; Unit Weight: 540g
• Unit + Mounting Kits Dimension : 205.3 x 205.3 x 50.9mm; Unit + Mounting Kits Weight : 600g
• Entire Package Dimension: 258 x 247 x 86mm; Entire Package Weight: 900g

Packaging Content

• GWN7610 802.11ac Wireless AP, Mounting Kits, Quick Start Guide

Compliance

• FCC, CE, RCM, IC
