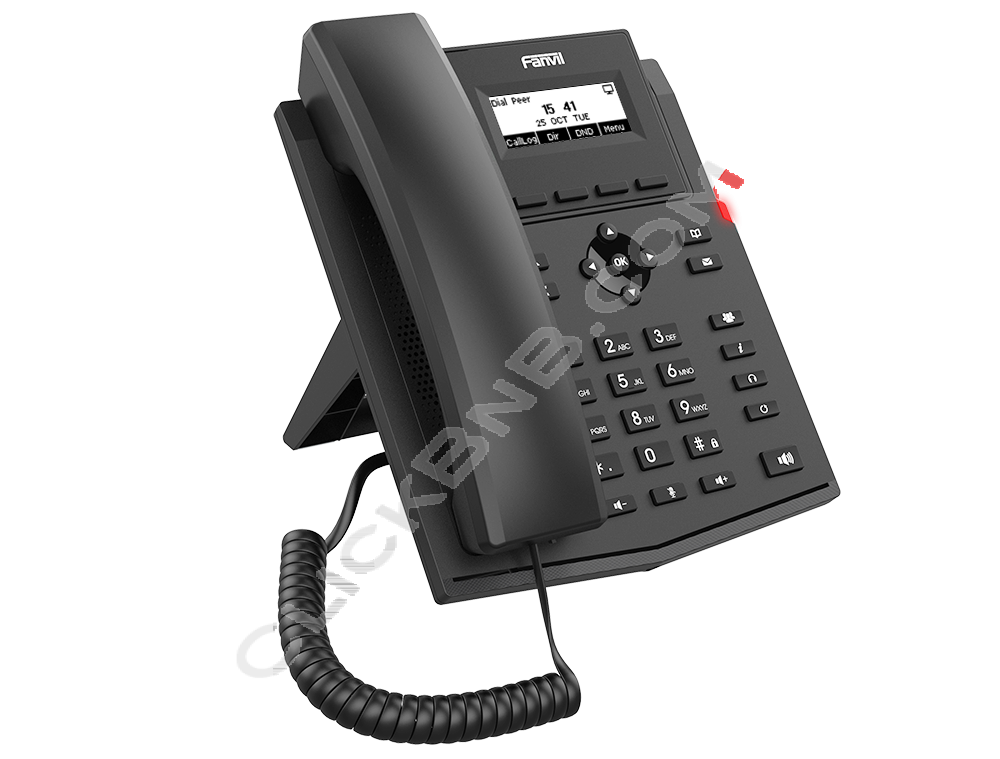

Fanvil X301P - Entry Level & Cost Effective IP Phone [PoE]

Fanvil X301P - Technical Specifications

Generic

• 2 SIP lines
• HD Voice
• PoE Enabled
• Dot matric display screen
• Handset / Hands-free / Headset mode
• Desktop Stand / Wall-mounted (need an additional wall hanging part)
• Optional External Power Supply

Phone Functions

• Local Phonebook (1000 entries)
• Remote Phonebook (XML/LDAP, 1000 entries)
• Call logs (In/Out/Missed, 600 entries)
• Blocked List / Allowed List Call Filter
• Voice Message Waiting Indication (VMWI)
• Programmable DSS/Soft keys
• Network Time Synchronisation
• Support Poly wireless headset (Through Poly APD-80 EHS Cable)
• Support Jabra wireless headset (Through Fanvil EHS20 EHS Cable)
• Support Recording (Through Server)
• Action URL/Active URI
• uaCSTA

Call Functions

• Call out / Answer / Reject
• Mute / Unmute (Microphone)
• Call Hold / Resume
• Call Waiting
• Intercom
• Caller ID Display
• Speed Dial
• Anonymous Call (Hide Caller ID)
• Call Forward (Always/Busy/No Answer)
• Call Transfer (Attended/Unattended)
• Call Parking/Pick-up (Depending on server)
• Redial
• Do-Not-Disturb
• Auto-Answering
• Voice Message (With server)
• 6-way audio Conference
• Hot Line
• Hot desking

Audio

• Wideband ADC/DAC 16KHz samping
• Narrowband Codec: G.711a/u, G.723.1, G.726, G.729AB, iLBC
• Wideband Codec: G.722, Opus
• Full-Duplex Acoustic Echo Canceller (AEC)
• Voice Activity Detection (VAD)/Comfort Noise Generation (CNG)/Background Noise Estimation (BNE)/Noise Reduction (NR)/Automatic Gain Control(AGC)
• Packet loss concealment (PLC)
• Dynamic Adaptive Jitter Buffer
• DTMF: In-band, Out-of-band - DTMF-Relay (RFC2833)/SIP INFO
• VQM Voice Quality Monitoring

Network

• Physical: 10/100/1000 Mbps Ethernet, dual bridged port for PC bypass
• IP Mode: IPv4/IPv6
• IP Configuration: Static IP / DHCP / PPPoE
• Network Access Control: 802.1x
• VPN: L2TP / OpenVPN
• VLAN
• LLDP
• QoS
• RTCP-XR (RFC3611), VQ-RTCPXR (RFC6035)

Protocols

• SIP2.0 over UDP/TCP/TLS
• RTP/RTCP/SRTP
• STUN
• DHCP
• IPv6
• LLDP
• PPPoE
• 802.1x
• L2TP
• OpenVPN
• SNTP
• FTP/TFTP
• HTTP/HTTPS
• TR-069
• AES128 & AES256

Deployment & Management

• Auto-Provisioning via FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIP PNP/TR069
• Web Management Portal
• Web-based Packet Dump
• Configuration Export / Import
• Phonebook Import/Export
• Firmware Upgrade
• Syslog

Physical Specifications

• LCD 128x48 pixel graphical LCD with backlight
• Keypad: 33 keys, including
  - 4 Soft-keys
  - 9 function keys (Hold/Transfer/Voice Message/Conference/Phonebook/MWI/Headset/Redial/Hands Free}
  - 4 Navigation keys
  - 1 OK Key
  - 12 Standard Phone Digits key
  - 3 Volume Control Keys (Up/Down/Mute (Microphone)}
• HD Handset (RJ9) x1
• Standard RJ9 Handset Wire x1
• 1.5M CAT5 Ethernet Cable x1
• Desktop Stand x1
• Status Indicator Light x1 (Red)
• RJ9 Port x2: Handset x1, Headset x1
• RJ45 Port x2: Network x1, PC x1 (Bridged to Network)
• Security Slot x1
• DC Power Input: 5V/0.6A
• Power Consumption (Adapter): 0.8W~1.29W
• Power Consumtion (PoE): 1.25~1.86W
• Working Temperature: 0 ~ 45℃
• Working Humidity: 10 ~ 95%
• Installation:
  - Desktop Stand
  - Wall-Mounted (optional)
• Colour: Black
• Device Dimensions:
  - Desktop Stand (45°): 169 x 201.1 x 177.4mm
  - Desktop Stand (50°): 169 x 191.9 x 185.8mm
  - Wall-Mountable: 169 x 120.1 x 213.7mm
• Gift Box Dimensions: 250 x 220 x 55mm
• Outer CTN Dimensions: 460 x 300 x 270mm (10 PCS)
