Fanvil PA3 - SIP Paging Gateway & Video Intercom

Fanvil PA3 Technical Specification

Generic

• 2 SIP Lines
• Speed dial
• Linkage with IP camera to realise video intercom
• Oral announcement of the IP address(in English)
• MP3 broadcasting
• Support programmable DSS key ports
• Support mono active speaker
• Support audio line in
• Support TF card and USB flash drive
• PoE enabled

Device Functions

• Auto-answering
• Programmable DSS keys
• Through button or web page volume adjustment
• Network time synchronisation
• Dynamic multicast function
• Support recording (through USB flash drive or server)
• Action URL/Action URI

Call Functions

• Call out/answer/reject
• Call waiting
• Intercom, Multicast
• Speed dial
• Anonymous call (Hide caller ID)
• Call parking/pick-up (depending on server)

Audio

• Narrowband codec: G.711A/U, G.729A/B
• Wideband codec: G.722, Opus
• Full-duplex hands-free speakerphone with AEC
• DTMF: In-band, Out-of-Band (RFC2833/SIP INFO)

Network

• Physical: 10/100 Mbps Ethernet
• IP mode: IPv4/IPv6/IPv4&IPv6
• IP configuration: Static IP/DHCP/PPPoE
• VPN: L2TP/OpenVPN

Protocols

• SIP v1 (RFC2543), v2 (RFC3261) over UDP/TCP/TLS
• RTP/RTCP/SRTP
• STUN
• DHCP
• IPv6
• PPPoE
• L2TP
• OpenVPN
• SNTP
• FTP/TFTP
• HTTP/HTTPS
• TR-069

Deployment & Management

• Auto-provisioning via FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIPPNP/TR-069
• Web management portal
• Web-based packet dump
• Configuration export/import
• Firmware upgrade
• Syslog

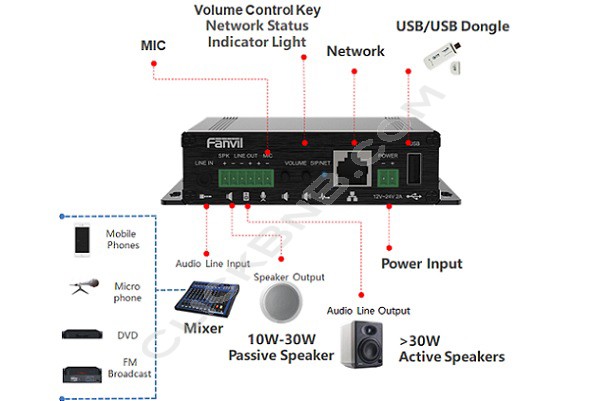

Physical Specifications

• Keypad: 3 keys, including - 2 volume control keys (up/down) - 1 reset key (soft reset)
• DC port x1: DC power input - Port: 2 Pin terminal socket
• RJ45 port x1: connect the network - PoE enabled
• Blue LED x1: (SIP status and network status)
• Line in port x1: connect audio line input - Port: 3.5mm standard audio port
• Line out port x1: connect the active speaker - Out: adjustable by volume, max up to 1.2Vpp - Port: terminal socket
• MIC in port x1: connect the MIC - Electret condenser MIC is recommended - Sensitivity: -38dB, impedance 2.2k ohm, bias voltage 2.54Vpp - Port: terminal socket
• Passive speaker port x1: connect the speaker - Output power: 4Ω, PoE/10W, 12V/10W, 18V/20W, 24V/30W; related to power supply voltage. - Wire diameter: 18AWG or higher. - Port: terminal socket
• DSS keys port x2: connect the external buttons (support LED) - LED: Output 5.0Vdc/5mA. - Port: 8 pin terminal socket
• TF card slot x1: connect TF card
• USB 2.0 port x1: Connect USB flash drive, broadcast local audio files.
• DC power input: DC12V~24V/2A
• PoE level: Class 4
• Working temperature: -20C~50C
• Storage temperature: -30C~60C
• Working humidity: 10~95%
• Installation: Desktop stand/ Wall-mounted
• Colour: black
• Device dimensions: 125x84.2x31mm
• Gift box dimensions: 147x114x58mm
• Outer CTN dimensions: 310x248x322mm (20pcs)
