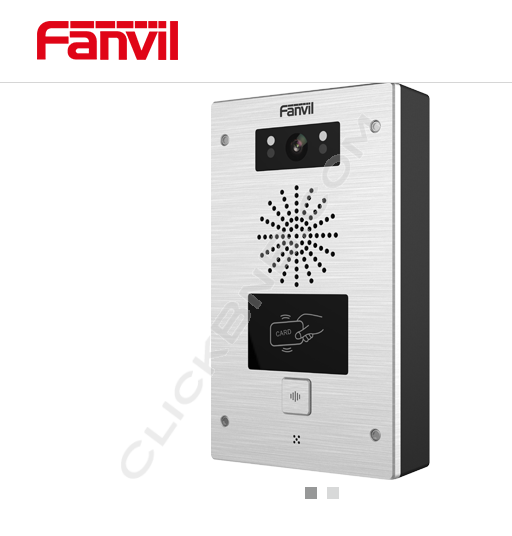

Fanvil i32V Video Door Phone

Generic

• 2 SIP Lines
• Full-duplex handsfree
• Intelligent DSS Keys (Speed Dial/intercom etc)
• Auto answer
• Intercom function
• Industrial Standard Certifications: IP65&IK10, CE/FCC

Access Control Function

• Unlock door method: DTMF, RFID/IC card, indoor switch, WEB page
• Support 2000 Remote access list
• Support 2000 RFID/IC cards
• Support 200,000 door open records
• Support electric lock internal or external power supply options
• Dynamic multicast function
• Support ONVIF
• Support customised DSS keys
• Network Time Synchronisation
• Action URL / Active URI

Audio

• Narrowband Codec: G.711a/u, G.723.1, G.726-32K, G.729AB
• Wideband Codec: G.722
• Full-duplex Acoustic Echo Canceller (AEC) ̢ Hands-free Mode, 96ms tail-length
• Voice Activity Detection (VAD) / Comfort Noise Generation (CNG) /Background Noise Estimation (BNE)
• Packet Loss Concealment (PLC)
• Dynamic Adaptive litter Buffer up to 300ms
• DTMF: In-band, Out of Band DTMF (RFC2833) / SIP INFO

Video

• Sensor: 1/2.7” colour CMOS
• 2 Megapixels
• Video Code: H.264
• Resolution: - Main stream 1280×720@25fps - Sub-stream 704×576(D1)@25fps
• Viewing angle: 112° (H), 84° (V)
• Minimum illumination: 0.1Lux, support for infrared illumination

Networking

• 10/100 Mbps
• IP Configuration: Static / DHCP / PPPoE
• Network access authority authentication: 802.1x
• VPN: L2TP / OpenVPN
• VLAN
• LLDP

Protocols

• SIP2.0 over UDP/TCP/TLS
• RTP/RTCP/SRTP
• STUN
• DHCP
• LLDP
• PPPoE
• 802.1x
• L2TP
• OpenVPN
• SNTP
• FTP/TFTP
• HTTP/HTTPS
• TR-069

Deployment & Maintenance

• Auto-Provisioning via FTP/TFTP/HTTP/HTTPS/DHCP/TR-069/SIPPNP
• Web Management Portal
• Web-based Packet Dump
• Configuration Import/Export
• Firmware Upgrade
• Syslog

Physical Specifications

• 1 DSS button (speed dial button)
• 1 RJ45 port
• 1 Wiegand port
• 1 audio output interface
• 1 recording output interface
• 2 embedded short circuit input interface
• 2 relays: MAX DC30V / 2A, AC125V / 0.5A
• Active switching output: 12V / 500mA DC(only 1 relay support)
• 2 door magnetic detection interface
• 1 tamper alarm switch
• RFID reader: ID (EM4100,125KHz) & IC(MIFARE ONE,13.56MHz)
• Power: DC12V/1A or PoE
• Housing material: aluminum alloy shell
• Protection level:IP65 and IK10
• Installation: Wall-mounting
• Working temperature: -40 ~ 70 °C
• Storage temperature: -40 ~ 70 °C
• Relative humidity: 10% - 90%
• Equipment Dimension: 195x120x34mm
• Packing Dimension: 260x165x62mm
• Outer CTN Dimension: 348x328x280mm(10 PCS)
• Equipment weight: 1015g
