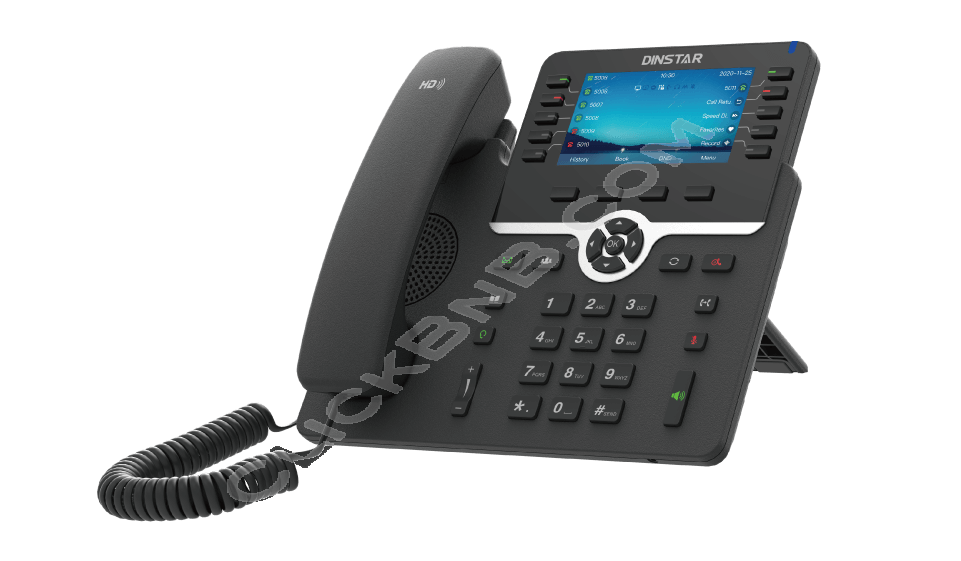

Dinstar C66GP - Technical Specifications
Call Features
- 20 SIP Accounts
- Call Waiting
- Call forward
- Blind/Attended Transfer
- Call hold, Call mute, DND mode
- Speed Dialing, Hotline
- Redial, Call Return
- Auto-redial, Auto-answer
- Dial Plan
- 6-way Conference
- Peer Dialing
Phone Features
- Adjustable Voice Volume
- Selectable Ring Tone
- XML Browser
- Action URL/URI
- Keyboard Lock
- Programmable DSS Keys
- Phonebook : 1000 Groups
- Blacklist : 100 Groups
- Call Logs : 100 Logs
- Support 5 remote Phonebook URLs
- LDAP
- Support Multiple Languages
- Support EHS Wireless Headset (Plantronics, Jabra, Sennheiser)
IP PBX Features
- SMS, Voicemail, MWI
- Music on Hold, Intercom, Multicast
- Call Pickup, Call Pickup in Group
- Anonymous Call
- Anonymous Call Rejection
Management
- Auto provisioning: FTP/TFTP/HTTP/HTTPS/PnP
- Configuration via HTTP/HTTPS web
- SNMP, TR069
- Network capture
- NTP/Daylight saving time
- Firmware upgrade via web
- Syslog
- Configuration backup/restore
- Equipment Management System (NMS）
Audio Features
- HD voice
- Wideband codec: G.722, Opus-WB
- Narrowband codec: PCMA, PCMU, G.723, G.729, G.726, AMR, OPUS, iLBC
- Echo Cancellation/Dynamic Jitter
- Voice Activity Detection (VAD)
- Comfort Noise Generation (CNG)
- Full Duplex Speaker
Protocols & Standards
- SIP V1 (RFC2543), SIP V2 (RFC3261)
- SIP Over TLS, SRTP
- TCP/IP/UDP
- RTP/RTCP, RFC2198, RFC1889
- HTTP/HTTPS/FTP/TFTP
- ARP/RARP/ICMP/NTP/DHCP
- DNS SRV/A Query /NATPR Query
- STUN, Session Timer (RFC4028)
- DTMF: In-Band, RFC2833, SIP INFO
- LLDP
- OpenVPN, 802.1X
Physical Features
- Color 4.3” High resolution screen (480x272)
- Dual-angle foot stand: 40° and 55°
- Dimensions (Approx.) : 238x223x42mm(WxLxD) without foot stand, 238x223x168mm(WxLxD) with foot stand
- Weight(approx.): device 700g , foot stand 60g
- Input voltage: 5Vdc
- Power supply: 5Vdc power adapter or PoE
- USB output currency(PSU): 5V⎓400mA
- USB output currency(PoE): 5V⎓1200mA
- Power consumption: 2.4W without USB output current
- PoE IEEE802.3af
- Handset: 4P4C, RJ9
- Headset: 4P4C, RJ9
- Extended interface: 6P6C, RJ12
- Environmental conditions: Operation temperature: 0~40°C, Humidity: 10% to 95% (non-condensing)
- 2xRJ45 10/100/1000M Ethernet Ports
