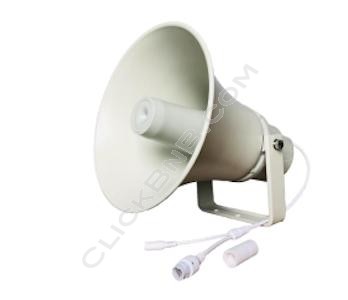

Dinstar DS30B - SIP Horn Speaker
Technical Parameters
- Network interface : 10/100Base-TX adaptive network , RJ45 interface, send and receive data instructions
- Network protocols : Support SIP v1 (RFC2543), v2 (RFC3261), TCP, UDP, RTP, ARP, ICMP, DHCP, DNS, IGMP, etc.
- Broadcast output: comes with 30W amplifier and speakers
- Input voltage : DC 12-24V
- Power consumtion : Static <300mW
- Operating temperature : -40C - 85C
- Specification size : 246mm x 292mm(30W)
- Panel : Alumunium alloy shell, metal mesh cover
- Installation method : wall-mounted
Installation and Configuration
Dinstar DS30 is wall-mounted with RJ45 network interface and DC 5.5-2.1 power interface, and also supports the addition of PoE function. Upon power-up, the DS30 will automatically obtain an IP address (BootP or DHCP) or find its IP address using Manager software. The device can also be easily configured and controlled via a standard web browser.
