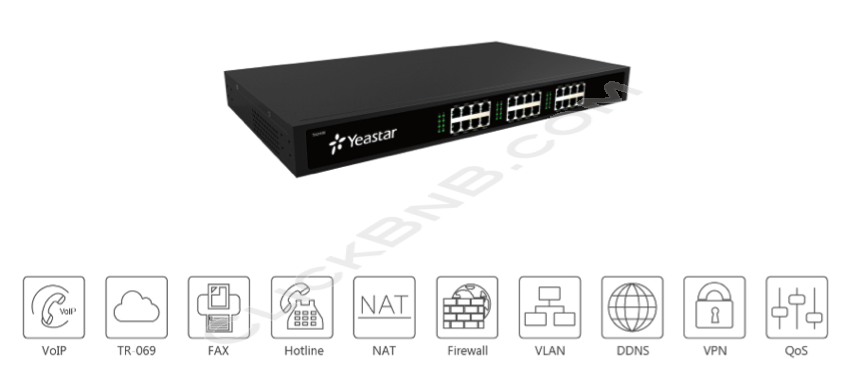

Yeastar - NeoGate TA2410 - 24 FXO Analog VoIP Gateway

Product Overview

Yeastar TA2410 supports 24 FXO ports to interface with PSTN or PABX extension port. Suitable for large-scale deployment and management, TA2410 features toll-quality voice call and top performance and reliability.

Deploy this gateway to connect lines from a PSTN to your VoIP phone system, for example. The gateway allows you to leverage your existing PSTN lines for calling, failover or other purposes. A number of essential call handling features are supported, including programmable AC impedance, hangup detection, answer detection and Caller ID detection.

Set up the Yeastar NeoGate TA2410 gateway on a desktop, featuring quiet operation. Also rack mount the gateway to keep it near your existing equipment or out of the way. The gateway supports T.30 fax and the SIP protocol, and is compatible with VoIP phone systems including 3CX, Asterisk and Microsoft Lync.

Keys Features and Functions

• Fully compliant with SIP and IAX2
• Flexible calling rules
• Reliable fax performance with T.38
• Superb voice compression with industry standard codecs
• Line echo cancellation for 8, 16, 32, 64 or 128 ms echo delays
• User-friendly Web GUI and intuitive operations for easy configuration and management
• Excellent interoperability with a wide range of legacy and IP equipment
• Tested and certified with Elastix, BroadSoft, and others
• LED indicators present system and port status visually
• Comprehensive call log, system logs, hardware logs, and debug logs

Specifications

Ports		24 FXO Ports
Telephony Interfaces		RJ11 and RJ21 50-pin Telco Connectors
LAN		1 10/100Mbps
Protocol		SIP (RFC3261), IAX2
Transport		UDP, TCP, TLS, SRTP
Codec		G.711 (alaw/ulaw), G.722, G.723, G.726, G.729A, GSM, ADPCM
Voice Capability		ITU-T G.168 LEC Echo Cancellation, Dynamic Jitter Buffer, VAD, CNG, PLC
DTMF Mode		RFC2833, SIP Info, In-band
Fax		T.30
QoS		DiffServ, ToS, 802.1 P/Q VLAN tagging
Network		DHCP, DDNS, OpenVPN, PPPoE, Static Route, VLAN
Network Protocol		FTP, TFTP, HTTP, HTTPS, SSH
Management Protocol		TR-069*
Signaling		FXO Loop Start, FXO Kewl Start
Caller ID		BELL202, ETSI (V23), NTT (V23-Japan), and DTMF-based CID
Disconnect Methods		Busy Tone, Polarity Reversal
FXO Connectivity		Programmable AC Impedance, Hangup Detection, Answer Detection, Caller ID Detection
Power		AC 100-240V (12V 5A)
Dimensions (L × W × H) (mm)		440 × 250 × 44
Humidity		10-90% non-condensing
Storage Range		-20°C to 65°C, -4°F to 149°F
Operation Range		0°C to 40°C, 32°F to 104°F
Mounting		Desktop, Rack-mount
Compatibility		Interoperable with 3CX, Asterisk, Lync Server, FreePBX and certified with Elastix and BroadSoft
