Detil
Key Features and Benefits
Ultra-HD 4K Camera| Super-Wide 120° Field of View| Smart Area Exposure 1/1.8-inch CMOS ultra-HD 4K lens, clear and smooth video calls, vivid and detailed presentation. The 120° ultrawide view easily covers every corner of the meeting room, capturing all participants. smart area exposure enhance overall brightness through AI image algorithms for better face and picture presentation.
Smart Video Conferencing with AI Technology Featuring AI technology, including Auto Framing and Speaker Tracking, UVC40 E2 not only supports framing the groups automatically according to the number and the position of the participants, but also automatically zoom in the speaker without adjusting the camera, making the participants more focus on the conference.
Precise Sound Localization, Full-Duplex Experience 8 MEMS microphone arrays make UVC40 E2 have stronger ability of noise proof and dereverberation. The new upgraded beamforming algorithm, together with technology of processing on acoustic echo cancellation and the dereverberation, brings high quality full-duplex call and realises more precise voice pickup. Support an optional wireless/wired expansion microphone to expand the boundaries of the conference room usage while maintaining an exceptional audio experience.
Secure Conference with Electric Lens Cap The camera electric lens cap automatically opens when the video conference starts and remains closed when not having video conferences, securing your conference privacy.
Integrated design | Standard UAC/UVC devices | Device management Compact design for fast deployment, UVC40 E2 includes a wall mount bracket, TV mount bracket, and an optional desktop stand. As a standard UAC/UVC device, UVC40 E2 applies to most video conferencing platforms. Connecting to a wired network, UVC40 E2 can realize remote device management, configuration, diagnosis, and upgrade.

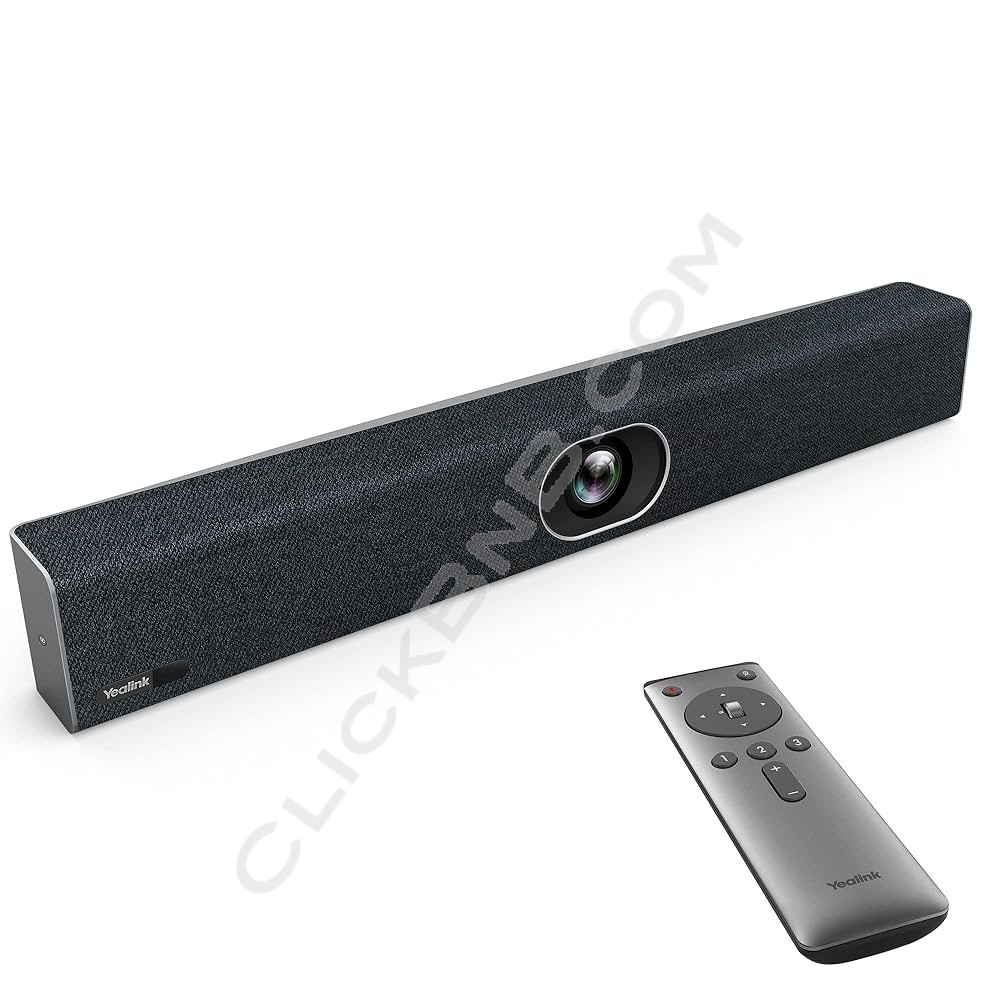

Yealink UVC40 E2 Technical Specifications
Package Content
- UVC40 E2 all-in-one USB video bar
- VCR20 Remote Control, 2 x AAA battery
- Power adapter
- Wall bracket and accessories
- 7m USB cable
- TV Mount Bracket and Accessories
- Desktop Stand (optional)
- Velcro
- Quick Start Guide
- Silicone Pad
- Cable Ties
Camera
- 8MP Camera with SONY 1/1.8-inch CMOS
- 120° Ultra-Wide Field of View
- 5x e-PTZ camera
- Electric lens cap
- Camera presets
- Video Output Maximum Resolution: 4K30fps
Audio
- Video Output Maximum Resolution: 4K30fps
- Signal-to-Noise Ratio: 72dB
- Dynamic Range: 22-130dB
- Sensitivity: -38dbv/pa
- Frequency Response: 50-20kHz
- Sampling Rate: 48kHz
- Bit Depth: 32bit
AI Technologies
- Auto Framing
- Speaker Tracking
- Smart Area Exposure
System Requirement
- Windows7,Windows10, Mac OS 10.10 or higher
- Support for standard audio and video device drivers: UAC1.0, UVC1.0
Physical Interfaces
- 1 x USB3.0 Type-B port
- 1 x USB2.0 Type-A port
- 1 x Yealink microphone port (RJ-45, it can be switched to Ethernet connection for wired network connectivity))
- 1x 3.5mm Line-in port
- 1 x Power port (48V/0.7A)
- 1 x Security lock slot
- 1 x Reset slot
- Built-in WiFi
Manageablity
- Yealink RoomConnect management tool
- Yealink Management Cloud Service/Device Management Platform
Compabilities
- UVC40 E2 is applicable to most video conferencing platform, including but not limited to the following: - Microsoft Teams and Zoom Room
Speaker
- Built-in 5W High-Fidelity Speaker
- Frequency Response:100-20kHz(-10dB)
- Sensitivity: 98±3 dB 2.0V / 0.1M
- Sensitivity: -38dbv/pa
- Sensitivity: Maximum Sound Pressure Level: 105±3dB
- Sampling Rate: 48kHz, 16-bit
Power Supply
- Power Consumption - Average: 10.5W - Peak: 12.428W - Standby: 9.56W
- Power Adapter: AC 100~240V Input, DC 48V/0.7A Output
- USB Output: 5V
- Supports PSE: 48V OutputOperating temperature: 0~40℃
Audio Codec and Technology
- Intelligent Noise CancellationTechnology (Yealink Proprietary)
- Noise Suppression
- Echo Cancellation
- Acoustic Echo Cancellation
- Automatic Lip Sync Detection
- Automatic Gain Control
- Full-Duplex Technology
Power Supply
- Power Consumption - Average: 10.5W - Peak: 12.428W - Standby: 9.56W
- Power Adapter: AC 100~240V Input, DC 48V/0.7A Output
- USB Output: 5V
- Supports PSE: 48V OutputOperating temperature: 0~40℃
Product Feature
- UVC40 E2: 600 mm x 68 mm x 82 mm
- Weight:1.37 kg N.W/CTN: 13 Kg
- Wall Bracket: 127.5 mm x 143 mm x 82 mmUSB Output: 5V
Package Feature
- Giftbox Size: 286mm x 198mm x140mm
- Carton Size: 685mm x 290mm x 397mm
- N.W/CTN: 13 Kg
- N.W/CTN: 1 4Kg
- Quantity :4
Other Physical Features
- External Yealink Power Adapter: AC 100~240V input and DC 48V/0.7A Output
- Operating humidity: 10 - 95%
- Operating temperature: 0 - 40℃
- Storage temperature: -30℃~70
