Product Spesifications

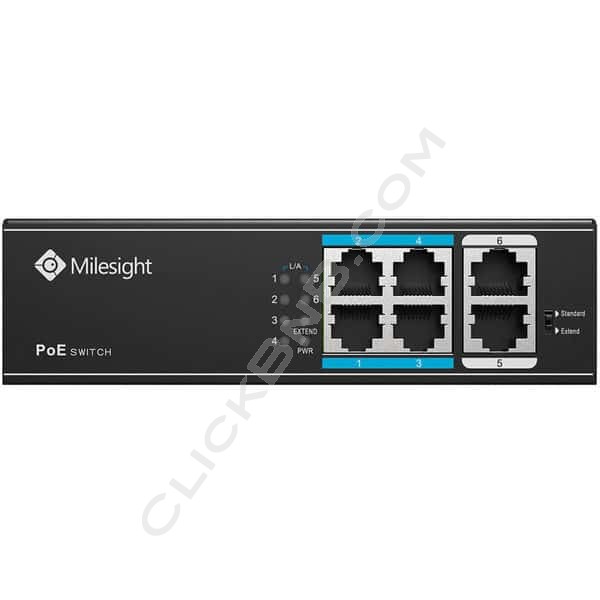

Ports : 4X10/100Mbps PoE ports (RJ45) + 2X100Mbps uplink ports
Standard : IEEE802.3 10Base-T :
IEEE802.3i 10Base-T
IEEE802.3u 100Base-TX
IEEE802.3x
Switching Capacity : 1.6Gbps (non-blocking)
Packet Forwarding Rate @64byte : 0.89Mbps
Packet Forwarding Cache : 768K
MAC : 1K
Power Supply :
Built-in switching power supply
AC 100~240V, 50-60Hz, 1A
PoE Standard : IEEE802.3af/at
Max. PoE Power : Max capacity: 65W
Max capacity for single port : 30W
Functional Switch :
Standard Mode : Port 1~6: 10/100Mbps auto-sensing @100 meters
Extend Mode : Port 1~4: 10Mbps @250 meters & Port 5~16: 100Mbps @ 100 meters
Note: When the switch status changes, PoE switch must be restarted for the switch function to take effect.
Indicator :
Power Indicator: PWR (green)
Network Indicator: Link (yellow)
PoE Working Indicator: PoE (green)
Functional Switch Indicator: EXTEND (green)
Cooling Fan : -
Operating Temperature : -20°∼55°C
Storage Temperature : -40°∼75°C
Operating/Storage Humidity : 10%∼90%RH(non-condensing)
Lightning Protection/ Protection Level :
Port lightning protection: 4KV 8/20us
Protection level: IP30
Dimensions : 142.5mm(W)*115mm(D)*40mm(H)
Weight : 0.5kg
Installation Method : Desktop Type, Wall Mounted Type
Warranty : 1 years
* Naming Convention
E - 10/100Mbps Uplink Port
G - Gigabit Uplink Port
L - Extend Mode F - Optical Fiber Port
Ports : 4X10/100Mbps PoE ports (RJ45) + 2X100Mbps uplink ports
Standard : IEEE802.3 10Base-T :
IEEE802.3i 10Base-T
IEEE802.3u 100Base-TX
IEEE802.3x
Switching Capacity : 1.6Gbps (non-blocking)
Packet Forwarding Rate @64byte : 0.89Mbps
Packet Forwarding Cache : 768K
MAC : 1K
Power Supply :
Built-in switching power supply
AC 100~240V, 50-60Hz, 1A
PoE Standard : IEEE802.3af/at
Max. PoE Power : Max capacity: 65W
Max capacity for single port : 30W
Functional Switch :
Standard Mode : Port 1~6: 10/100Mbps auto-sensing @100 meters
Extend Mode : Port 1~4: 10Mbps @250 meters & Port 5~16: 100Mbps @ 100 meters
Note: When the switch status changes, PoE switch must be restarted for the switch function to take effect.
Indicator :
Power Indicator: PWR (green)
Network Indicator: Link (yellow)
PoE Working Indicator: PoE (green)
Functional Switch Indicator: EXTEND (green)
Cooling Fan : -
Operating Temperature : -20°∼55°C
Storage Temperature : -40°∼75°C
Operating/Storage Humidity : 10%∼90%RH(non-condensing)
Lightning Protection/ Protection Level :
Port lightning protection: 4KV 8/20us
Protection level: IP30
Dimensions : 142.5mm(W)*115mm(D)*40mm(H)
Weight : 0.5kg
Installation Method : Desktop Type, Wall Mounted Type
Warranty : 1 years
* Naming Convention
E - 10/100Mbps Uplink Port
G - Gigabit Uplink Port
L - Extend Mode F - Optical Fiber Port
