Product Overview
Video/Audio Input

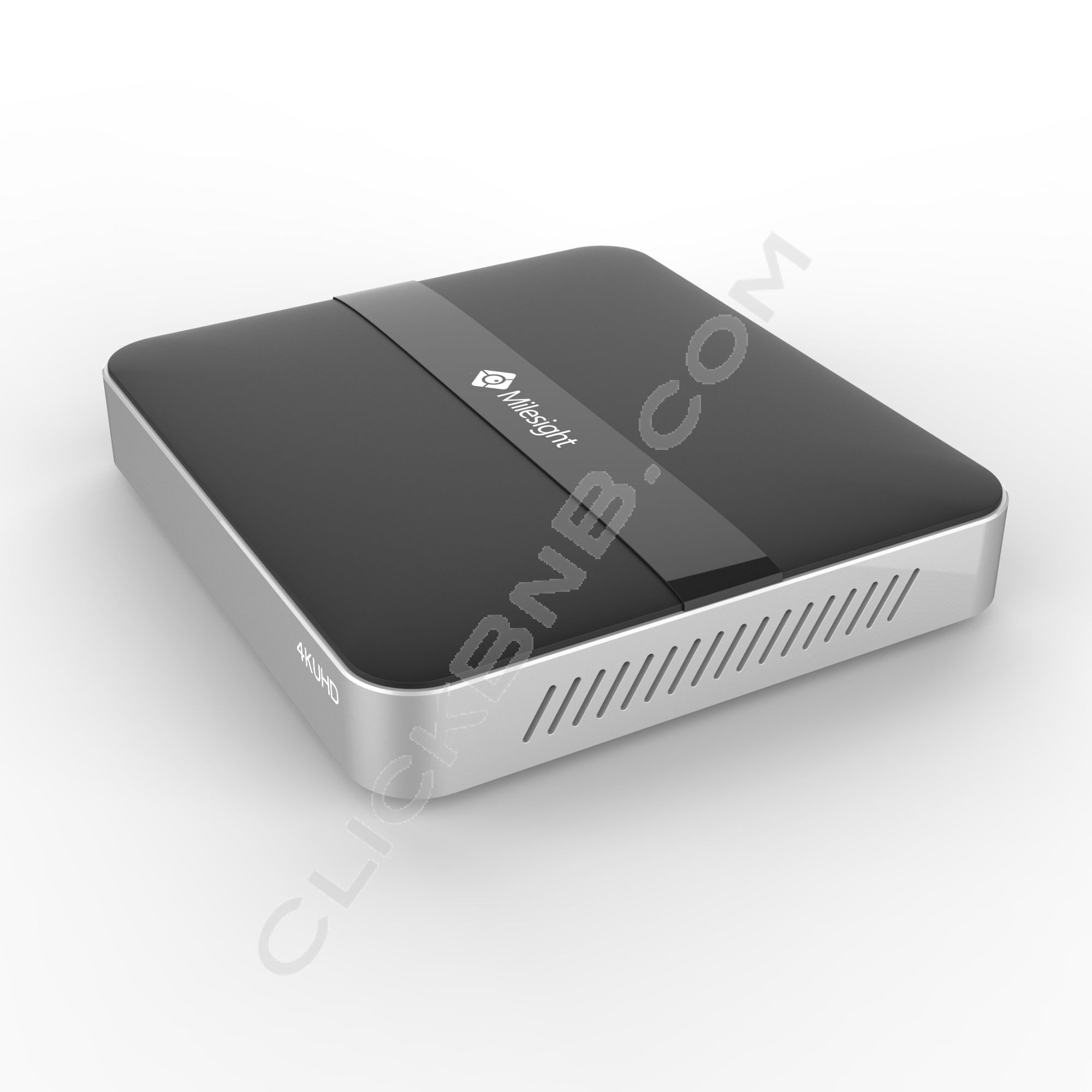

Name : Milesight MS-N1008-UPC 4K H.265 PoE NVR 1000 Series
Bandwithh Requirement : 80Mbps (incoming), 80Mbps (outgoing)
Video/Audio Output
HDMI Output : 1-CH, Resolution: 3840x2160/30Hz, 1920x1080/60Hz, 1920x1080/50Hz,1280x1024/60Hz,1280x720/60Hz, 1024x768/60Hz. (HDMI supports Audio Output)
Dual Stream : Support
Recording Resolution : 8MP/6MP/5MP/4MP/3MP/1080P/UXGA/720P/D1/VGA/CIF/QCIF
Synchronous Playback : 1*(30fps@8MP), 1*(30fps@6MP), 1*(30fps@5MP), 2*(30fps@4MP), 2*(30fps@3MP), 4*(30fps@1080P), 8*(30fps@720P
Format
Video Compression : H.265+/H.265(HEVC)H.264+/H.264Audio Compression : G.711/AAC/G.722/G.726
Storage
SATA : 1*SATA HDD (3.5")
Capacity : Up to 10TB capacity for each HDD
Recording Management
Synchronous Recording : 8*5MP
Recording Type : Continuous, Event (Motion detection, Alarm, Smart Event)
Playback Type : General Playback Event Playback, Tag Playback, Split Playback, Picture Playback
Backup : Video backup, Image backup
Network
Protocol : IPv4/IPv6, TCP, UDP, RTP, RTSP, RTCP, HTTP, HTTPS, DNS, DDNS, DHCP, NTP, SNTP, SMTP, SNMP, UPnP, NFS
External Interface
Network Interface : 1*RJ45 10/100Mbps
USB Interface : 2*USB 2.0
PoE Interface
Interface : 4*RJ45 10/100Mbps
Power Output : ≤40W
Supported Standard : IEEE 802.3af/at
General
Compatibility : ONVIF. API
Advanced Functions : ANR
Video Analysis : Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Human Detection, People Counting, Object Left, Object Removed
Keyboard Control : Milesight Keyboard (MS-K01)
Power Supply : DC 48V 1.3A
Consumtion : ≤3.5W(Without HDD, without enabling PoE)
Working Conditions : Temperature: -10°C~+55°C Humidity: 10%~90%
Dimensions : 220mm(W)X200mm(D)X43.6mm(H)
Weight : 0.2Kg
