Product Overview
Camera

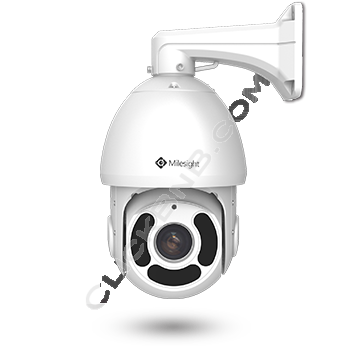

Name : MS-5341-X30PB 5MP H.265+ Speed Dome Network Camera - 30x Optical ZoomImage Sensor : 1/2.8" Progressive Scan CMOS
Min. Illumination : Color: 0.005Lux @F1.2. BW : 0Lux with IR on
WDR : 120db Super WDR
Shutter Time : 1/100000s∼1s
Day & Night : ICR Filter Auto Switch
Digital Zoom : 16x
S/N : >55dB
Lens
Focal Length : 4.7∼141mm, 30X Optical Zoom
Zoom Speed : Approx 6s(Optical Wide-Tele)
Field of View : H58°∼H3°/D71°∼D3°/V44°∼V2°
Minimum Working Distance : 100~1500mm (Wide-Tele)
Aperture : F1.5∼F4.0
Iris Control : Auto
PTZ
Pan Range/Pan Speed : 360° endless/ Pan Manual Speed: 0.5°∼180°/s, Pan Preset Speed: 240°/s
Tilt Range/Tilt Speed : 0°∼90°(Auto Flip)/ Tilt Manual Speed: 0.5°∼120°/s, Tilt Preset Speed: 200°/s
Proportional Zoom : Support
Preset Quantity : 255
Preset Freezing : Support
Patroll : 8 Patrols, up to 48 presets each patrol
Pattern : 4 pattern
Power Off Memory : Support
PTZ Position Display : ON/OFF
3D Positioning : Support
IR
Irradiation Distance : Up to 200m
Irradiation Angle : Auto/Manual
Video
Max. Image Resolution : 2592x1944
Primary Stream : 30fps@(2592x1944), 45fps@(2048x1536), 60fps@(1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream : 60fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)
Tertiary Stream : 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)
Video Compression : H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate: 16Kbps~16Mbps (CBR/VBR adjustable)
Image Settings : Brightness/Contrast/Saturation/Sharpness
Audio
Audio Compression : G.711/AAC/G.722/G.726
Audio I/O : 1/1
Network
Ethernet : 1*RJ45 10M/100M Ethernet Port
Network Storage : NAS(Support NFS, SMB/CIFS)
Protocols : IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
System
Alarm I/O : 2/2
RS485 : Support
Storage : Support microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced Function : Auto Tracking, Privacy Masking, BLC, HLC, 2D DNR, 3D DNR, ROI, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP Support : Yes, Voice&Video-over-IP
Event Trigger : Motion Detection, Network Disconnection, Audio Alarm, etc.
Event Action : FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, PTZ Motion, HTTP Notification, etc.
Video Analysis : Region Entrance, Region Exiting, Advance Mode Detection, Tamper Detection, Line Crossing, Loitering, Human Detection, People Counting, Object Left, Object Removed
System Compatibility : ONVIF Profile G & Q & S & T
General
Working Conditions : Temperature: -40℃∼60℃ / Humidity: 0∼90%(Non-condensing)
Power Supply : PoE(802.3at)/ AC 24V/3A ±10%
Power Consumption : 13.5W MAX / 25.5W MAX (with IR on)
Weather Proof /Housing: Up to IP66-rated for weather-resistant performance / Vandal-proof IK10-rated Metal Housing(Optional)
Surge Protection : 6KV
Dimensions : Φ205mmx308mm
Weight : 4kg
