Product Overview
Camera

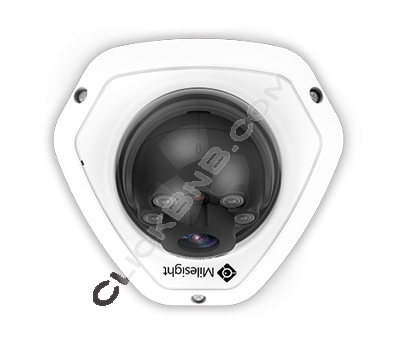

Name : MS-C5373-PB 5MP H.265+ Vandal Proof Mini Dome Network CameraImage Sensor : 1/2.8" Progressive Scan CMOS
Min. Illumination : Color: 0.005Lux @F1.2. BW : 0Lux with IR on
WDR : 120dB Super WDR
Lens : 2.8mm @F2.0/ 3.2mm @F2.2/ 3.6mm @F2.2
Mount : M12
Field of View : H111°/D141°/V82°(2.8mm), H96°/D123°/V71°(3.2mm), H80°/D102°/V59°(3.6mm)
Shutter Time : 1/100000s∼1/5s
Day & Night : ICR Filter Auto Switch
IR Distance: Up to 30m
S/N : >55dB
Video
Max. Image Resolution : 2592x1944
Primary Stream : 30fps@(2592x1944), 45fps@(2048x1536), 60fps@(1920x1080)(Optional for H Series)
20fps@(2592x1944), 30fps@(2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)
20fps@(2592x1944), 30fps@(2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream : 30fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)
Tertiary Stream : 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)
Video Compression : H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate: 16Kbps∼16Mbps (CBR/VBR adjustable)
Image Settings : Saturation/Brightness/Contrast/Sharpness
Web Access : Support IE/Firefox/Chrome/Safari Browser
Audio
Audio Stream : Built-in Microphone
Audio Compression : Built-in Microphone; 1/1(Multi-interface Version)
Network
Communication : 1*RJ45 10M/100M Ethernet Port
Network Storage : NAS(Support NFS, SMB/CIFS)
Network Protocols : IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
System
Alarm I/O : 1/1(Multi-interface Version)
Storage : Support microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced Function : Privacy Masking, BLC, HLC, 2D DNR, 3D DNR, ROI, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP Support : Yes, Voice&Video-over-IP
Event Trigger : Motion Detection, Network Disconnection, Audio Alarm, etc.; Motion Detection, Network Disconnection, External Input, Audio Alarm, etc.(Multi-interface Version)
Event Action : FTP Upload, SMTP Upload, SD Card Record, SIP Phone, HTTP Notification, etc.; FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc.(Multi-interface Version)
Video Content Analysis (VCA) : Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Human Detection, People Counting, Object Left, Object Removed
System Compatibility : ONVIF Profile G & Q & S & T
General
Working Temperature : -40℃~60℃
Working Humidity : 0∼90%(Non-condensing)
Power Supply : PoE(802.3af); PoE(802.3af)/DC 12V±10%(Multi-interface Version)
Power Consumption : 2.5W MAX, 5.5W MAX (With IR on)
Weather Proof : Up to IP67-rated for Weather-resistant performance
Housing : Vandal Proof IK-10 rated metal housing
EN50155 : Support
Dimensions : 118.5mmX110.8mmX65mm
Weight : 500g
