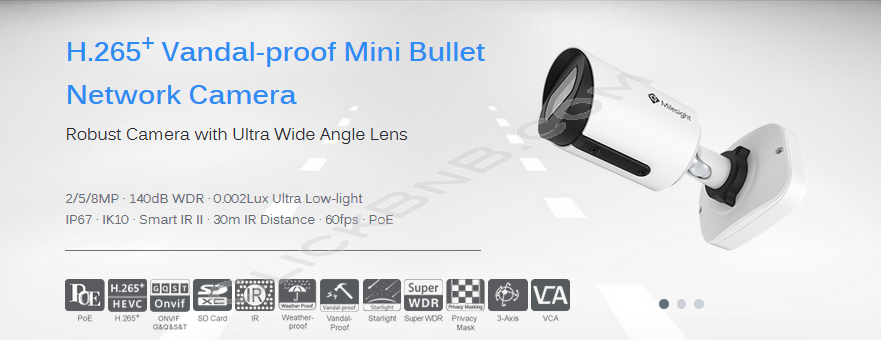

Milesight MS-C5364-PB - 5MP H.256+ Vandal Proof Mini Bullet Network IP Camera

Camera Name : Milesight MS-5364-PB 5MP H.265 Vandal Proof Mini Bullet Network Camera

 Image Sensor : 1/2.8" Progressive Scan CMOS

Min. Illumination : Color: 0.005Lux @F1.2, B/W: 0Lux with IR on

WDR : 120db Super WDR

Lens : 2.8mm @F2.0/ 3.2mm @F2.2/ 3.6mm @F2.2/ 6mm @F1.6

Field of View : H113°/D144°/V84°(2.8mm), H98°/D124°/V73°(3.2mm), H82°/D105°/V60°(3.6mm), H52°/D65°/V39°(6mm)

Shutter Time: 1/100000s∼1s

IR Distance: Up to 30m

Day & Night : ICR Filter Auto Switch

S/N : >55dB



Max. Image Resolution : 2592×1944

Frame Rate            : 30fps@(2592x1944), 45fps@(2048x1536), 60fps@(1920x1080)(Optional for H Series)
                                 20fps@(2592x1944), 30fps@(2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)

Secondary Stream  : 30fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)

Tertiary Stream       : 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)

Video Compression : H.265+/H.265(HEVC)/H.264+/H.264/MJPEG

Video Bit Rate: 16Kbps∼16Mbps (CBR/VBR adjustable)

Image Settings : Saturation/Brightness/Contrast/Sharpness



Ethernet : 1*RJ45 10M/100M Ethernet Port

Network Storage : NAS(Support NFS, SMB/CIFS)

Network Protocols : IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL



Storage : Support microSD/SDHC/SDXC Card Local Storage, up to 256G

Advanced Function : Privacy Masking, BLC, HLC, 2D DNR, 3D DNR, ROI, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark

SIP/VoIP Support : Yes, Voice & Video-over-IP

Event Trigger : Motion Detection, Network Disconnection, etc..

Event Action : FTP Upload, SMTP Upload, SD Card Record, SIP Phone, HTTP Notification, etc.

Video Content Analysis(VCA) : Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Human Detection, People Counting, Object Left, Object Removed

System Compatibility : ONVIF Profile G & Q & S & T



Working Temperature : -40℃∼60℃

Working Humidity : 0∼90%(Non-condensing)

Power Supply : PoE (802.3af)

Power Consumption :  3.5W MAX, 5.5W MAX (With IR on)

Weather Proof : Up to IP67-rated for weather-resistant performance

Housing : Vandal-Proof IK10-rated metal housing

Dimensions : 97mmX74mmX180mm(Junction Box Version) / Φ64mmX160mm(Cable Out Version)

Weight : 610g(Junction Box Version) / 450g(Cable Out Version
