Detil
Product Overview
Camera

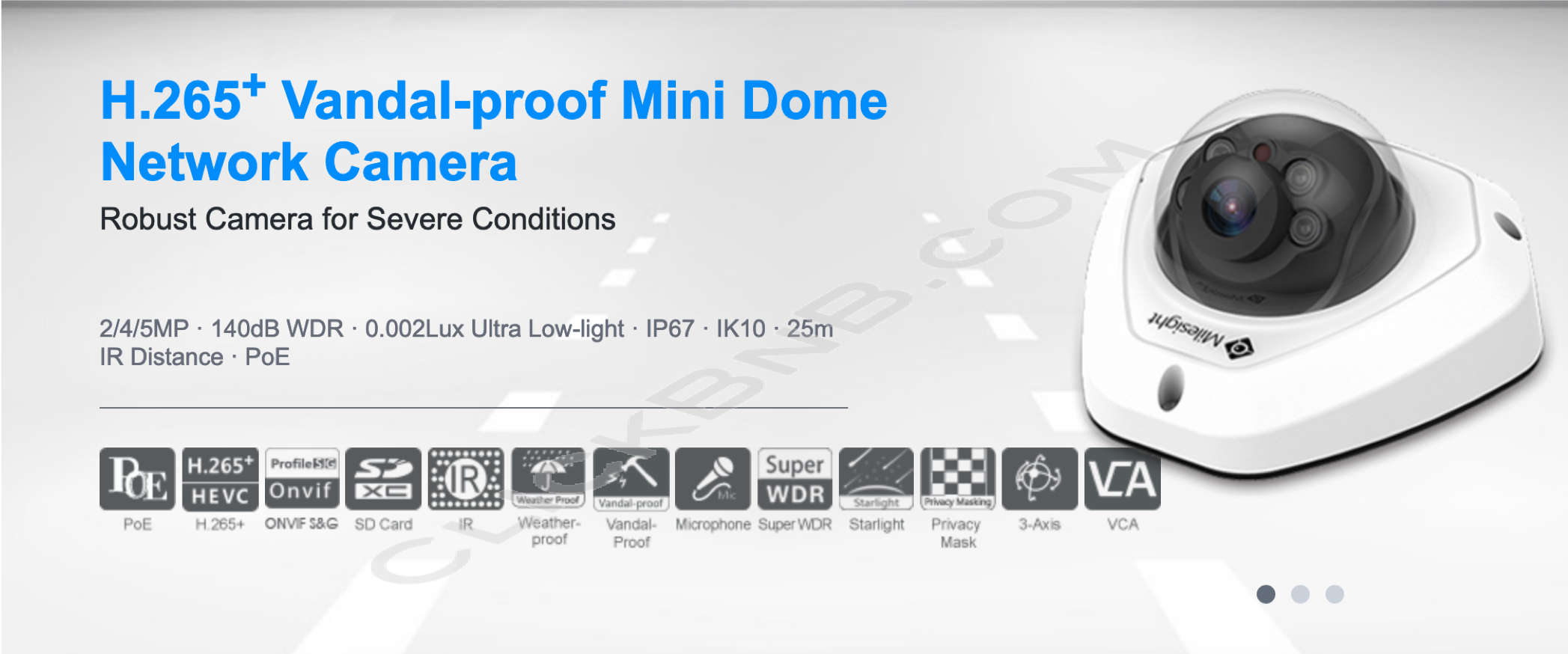

Name : MS-C2973-SPB 2MP H.265 Vandal Proof Mini Dome Network CameraImage Sensor : 1/2.8" Progressive Scan CMOS
Min. Illumination : Color: 0.002Lux @F1.2. BW : 0Lux with IR on
WDR : Super WDR Up to 140db
Lens : 2.8mm/4mm/6mm @F1.6
Mount : M12
Field of View : H111°/D128°/V61°(2.8mm)
H91°/D106°/V50°(4mm)
H55°/D63°/V32°(6mm)
Shutter Time : 1/100000s∼1s
Day & Night : ICR Filter Auto Switch
IR Distance: Up to 30m
SN : >55dB
Video
Max. Image Resolution : 1920x1080
Primary Stream : 30fps@(1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream : 30fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)
Tertiary Stream : 30fps@(704x576, 640x480, 640x360, 320x240, 320x192, 320x180)
Video Compression : H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate: 16Kbps∼16Mbps (CBR/VBR adjustable)
Image Settings : Saturation/Brightness/Contrast/Sharpness
Audio
Audio Stream : Built-in Microphone
Audio Compression : G.711/AAC/G.722/G.726
Storage : Support microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced Function : Privacy Masking, BLC, HLC, 2D DNR, 3D DNR, ROI, Defog, AWB, IP Address Filtering, AGC, Anti-Flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP Support : Yes, Voice&Video-over-IP
Event Trigger : Motion Detection, Network Disconnection, Audio Alarm, etc.
Event Action : FTP Upload/SMTP Upload/SD Card Record/SIP Phone, HTTP Notification, etcVideo Content Analysis (VCA): Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Human Detection, People Counting. Object Left, Object Removed
Digital Image Stabilization : NO
System Compatibility : ONVIF Profile G & Q & S & T
Network
Communication : 1*RJ45 10M/100M Ethernet Port
Network Storage : NAS(Support NFS, SMB/CIFS)
Network Protocols : IPv4/IPv6, TCP, UDP, RTP, RTSP, RTMP, RTCP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, SIP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
General
Working Temperature : -40℃~60℃
Working Humidity : 0∼90%(Non-condensing)
Power Supply : PoE (802.3af)
Power Consumption : 2.5W MAX, 3.5W MAX (With IR on)
Weather Proof : Up to IP67-rated for Weather-resistant performance
Housing : Vandal Proof IK-10 rated metal housing
EN50155 : Support
Dimensions : 118.5mmx110.8mmx65mm
Weight : 500g
