Model

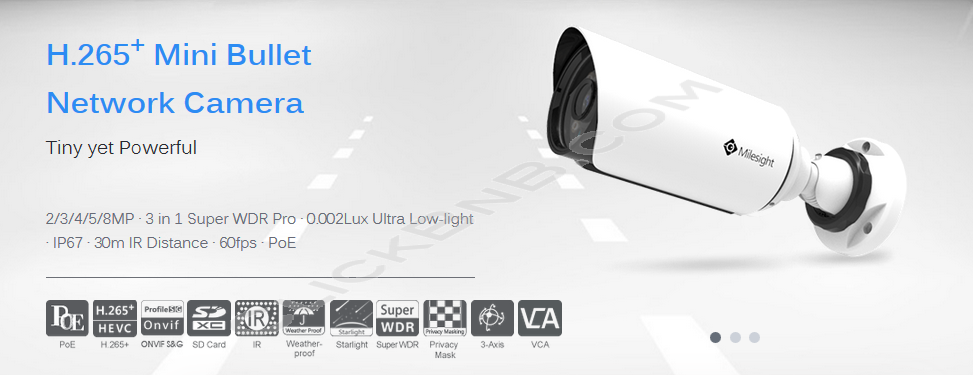

Camera Name : Milesight MS-C2963-PB - 2MP H.265 Mini Bullet Network IP Camera
Image Sensor : 1/2.8" Progressive Scan CMOS
Min. Illumination : Color: 0.002Lux @F1.2, B/W: 0Lux with IR on
WDR : 140dB Super WDR
Lens : 4mm/2.8mm/6mm @F1.6
Field of View : H91°/D106°/V50°(4mm), H111°/D128°/V61°(2.8mm), H55°/D63°/V32°(6mm)
Shutter Time: 1/100000s∼1s
IR Distance: Up to 50m
Day & Night : ICR Filter Auto Switch
S/N : >55dB
Video
Max. Image Resolution : 1920×1080
Frame Rate : 60fps@(1920x1080)(Optional for R Series), 30fps@(1920x1080, 1280x960, 1280x720, 704x576)Secondary Stream : 60fps@(1920x1080)(Optional for R Series), 30fps@(1920x1080, 1280x960, 1280x720, 704x576)
Tertiary Stream : 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)
Video Compression : H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate: 16Kbps∼16Mbps (CBR/VBR adjustable)
Image Settings : Saturation/Brightness/Contrast/Sharpness
Web Access : Support IE/Firefox/Chrome/Safari Browser
Audio
Audio Compression : G.711/AAC/G.722/G.726
Audio I/O : 1/1(Multi-interface Version)
Network
Ethernet : 1*RJ45 10M/100M Ethernet Port
Network Storage : NAS(Support NFS, SMB/CIFS)
Network Protocols : IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
System
Storage : Support microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced Function : Privacy Masking, BLC, HLC, 2D DNR, 3D DNR, ROI, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP Support : Yes, Voice & Video-over-IP
Event Trigger : Motion Detection, Network Disconnection, External Input, Audio Alarm, etc. (Multi-interface Version)Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
Event Action : FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc. (Multi-interface Version
Video Content Analysis(VCA) : Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Human Detection, People Counting, Object Left, Object Removed
System Compatibility : ONVIF Profile G & Q & S & T
General
Working Temperature : -40℃∼60℃
Working Humidity : 0∼90%(Non-condensing)
Power Supply : PoE(802.3af);
PoE (802.3af) / DC 12V±10% (Multi-interface Version)
PoE (802.3af) / DC 12V±10% (Multi-interface Version)
Power Consumption : 4W MAX, 5.5W MAX (With IR on)
Weather Proof : Up to IP67-rated for weather-resistant performance
Housing : Vandal-proof IK10-rated metal housing
Dimensions : Φ76mmX214.5mm
Weight : 750g
