Grandstream - GXV3504 IP Video Encoder

Tulis review Anda tentang produk ini

Stok: Tersedia

Rp 4.800.000,00


" 4 Channel IP Video Encoder , Support SIP/VoIP for 2-way audio and video streaming"
The GXV3504 is an IP video encoder that enables use of analog video cameras on an IP network. The device features H.264 real-time video compression to maximize video quality on analog streams. Like all Grandstream IP Video Surveillance products, the GXV3504 is OnVIF compliant and includes built-in PoE.

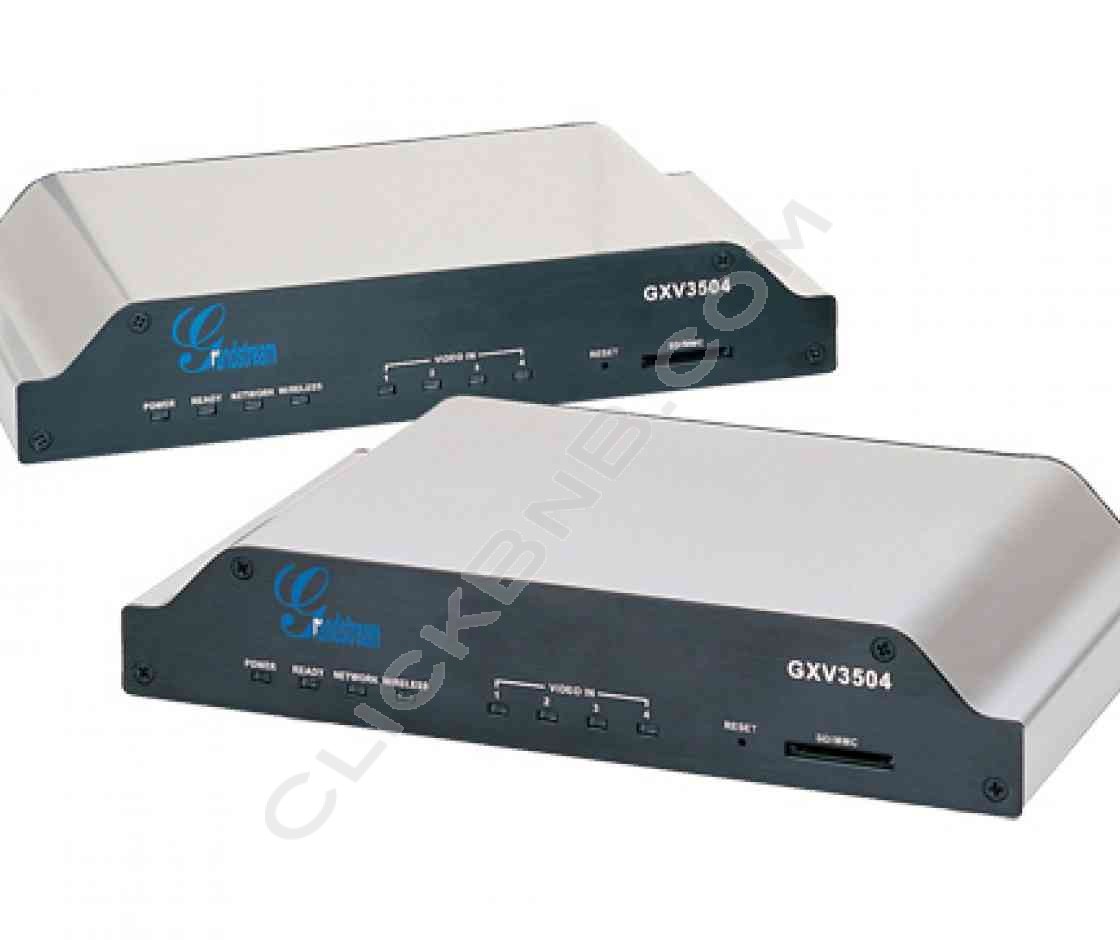

Grandstream - GXV3504 IP Video Encoder

Klik-ganda gambar di atas untuk melihat ukuran aslinya


Gambar Selengkapnya


Product Overview

The GXV3504 is a next generation IP video server/encoder with powerful innovations.  It packs a number of cutting-edge technologies including H.264 real time video compression (D1 resolution) with sharp image clarity at low-to-modest bandwidth, industry leading SIP/VoIP for 2-way audio and video streaming to mobile phones and video phones, PoE, embedded analytics, large pre-/post-event recording buffer, and advanced security protection.

Grandstream GXV3504 Key Features

  • Advanced multi-streaming-rate real-time H.264, Motion JPEG at D1 resolution
  • 1 or 4 Analog video  inputs (BNC) and 1 or 4 alarm input & outputs
  • Audio input and output, RS485/232, PTZ control
  • 24MB pre-/post-event recording buffer per port
  • USB 2.0 port and SD slot for storage/wireless network card
  • Integrated Power-over-Ethernet (802.3af), optional antenna for wireless network
  • Embedded video analytics including motion (up to 16 target areas) & video loss detection
  • SIP/VoIP support for two-way audio communications and video streaming to mobile phones and video phones
  • Built-in high performance streaming server to allow up to 12 simultaneous D1 viewers or 25 CIF viewers

Its unique incorporation of the most comprehensive peripheral support for alarm control, local storage expansion, and wireless network connection, creates sophisticated and best-in-class control flexibility and scalability.  The GXV3501 can be managed with GSurf, Grandstream’s intuitive video management software that controls up to 36 cameras simultaneously.  The GXV3501 offers an excellent solution for IP enabling of traditional analog cameras for professional surveillance environments.

Grandstream GXV3504 Technical Specification


  • 4 (BNC), 3.5mm Line-In
  • 3.5mm Line-Out
  • G.711, G.726 Audio Compression


  • Channels: 4
  • H.264 BP @ Level 3.0, Motion JPEG Video Compression
  • 32 Kbps -2 Mbps Bit Rate
  • Max Resolution: Full D1, 720 x 576 (PAL), 720 x 480 (NTSC)
  • Max Frame rate: 75 fps / 62.5 fps (NTSC / PAL)
    - 4 ports at CIF at full rate, or 2 ports at D1 & 2 ports at CIF at full rate, or 4 ports at D1 at a reduced rate

Serial Ports

  • RS485 / RS232


  • Video watermark
  • Password


  • Alarm input: Yes: 4 Normal Open
  • Alarm output: Yes: 4,125VAC/0.5A, 30VAC/2A
  • Pre-/post-alarm Buffer: 24MB (per channel)

Size and Weight

  • Size: 230mm x 155mm x 43mm (L x W x H)
  • Weight: 1kg


  • Output: 12VDC/1A
  • Inpurt: 100 - 240VAC, 50 - 60Hz

Embedded Analytics

  • Motion Detection (up to 16 target areas)
  • Video loss
