Product Overview

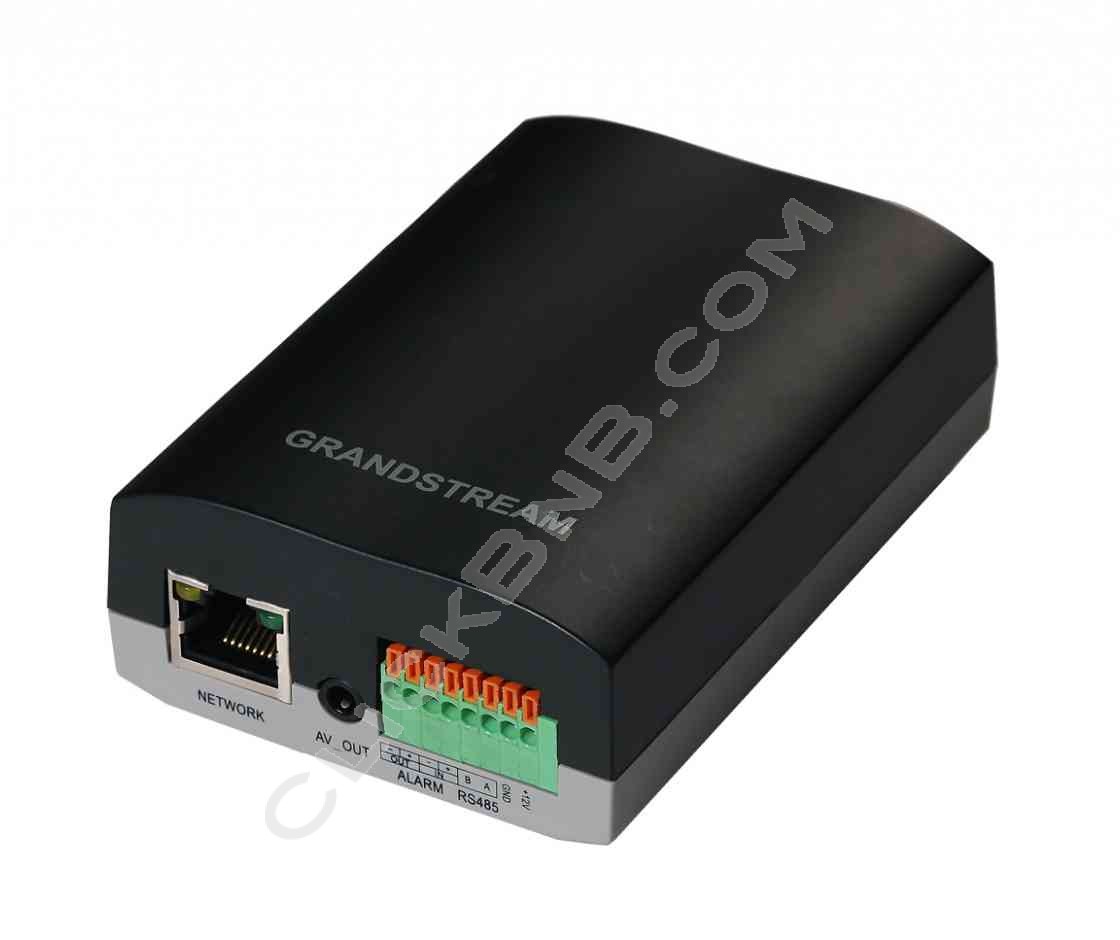

The GXV3500 is an IP video encoder, decoder and public announcement system combo device. It features H.264 real-time video compression for encoding analog video to IP or decoding IP video to analog, making the GXV3500 a necessary component of any surveillance solution that requires both IP and analog streams. The GXV3500 offers excellent image quality, industry leading SIP/VoIP for 2-way audio and video streaming to mobile phones and video phones, integrated PoE, a large pre-/post-event recording buffer, and advanced security protection. Its integration of comprehensive peripherals including Microphone Input, Alarm Input and Output control allows the device to function as a powerful and flexible voice/video public announcement system (PAS) using Microphones, IP phones or IP video phones. Peering the GXV3500 will allow users using a joystick controller to operate any PTZ analog camera remotely via an IP network.
The GXV3500 allows users to fully utilize existing equipment they have already invested in and upgrade to an advanced IP solution. The GXV3500 can be managed by GSurf_Pro v2 and GVR3550. The GXV3500 offers an HTTP API and is fully compliant with ONVIF standard. This IP video encoder/decoder/P.A.S. device is the ideal product for all surveillance and security monitoring applications combining IP and analog video streams.
Grandstream GXV3500 Key Features:
- Powerful 3-in-1 combination device
- Decodes standard PAL or NTSC composite video stream, as well as smaller resolutions
- Advanced multi-streaming-rate real-time H.264, Motion JPEG at D1 resolution
- Support 8Mb Pre/post event recording buffer, Line Out and Microphone Input audio connections
- Support Line-Out and Micro-In audio connections
- Support composite (RCA) video output to TV
- Support Motion Detection, and Notification on PC Client
- Support both Variable Bit Rate and Variable Frame Rate
- Support IE and Firefox for network preview
- Built-in high performance streaming server to allow multiple simultaneous viewers (Encoder mode only)
- SIP/VoIP support for two-way audio and video streaming to mobile phones/video phones
- Integrated Power-over-Ethernet (802.3af)
- Full ONVIF compliance
GXV3500 - Technical Specifications
Video Compression
- H.264, JPEG, Motion JPEG
Max Video Resolution (Encoding)
- PAL:
- 704*576@25fps (4CIF/D1)
- 640*480@25fps (VGA)
- 704*288@25fps (2CIF)
- 352*288@25fps (CIF)
- 320*240@25fps (QVGA)
- 160*144@25fps (QCIF)
- NTSC:
- 704*480@30fps (4CIF/D1)
- 640*480@30fps (VGA)
- 704*240@30fps (2CIF)
- 352*240@30fps (CIF)
- 320*240@30fps (QVGA)
- 160*112@30fps (QCIF)
Max Video Resolution (Decoding)
- PAL:
- 704*576@25fps (4CIF/D1)
- 640*480@25fps (VGA)
- 704*288@25fps (2CIF)
- 352*288@25fps (CIF)
- 320*240@25fps (QVGA)
- 160*144@25fps (QCIF)
- NTSC:
- 704*480@30fps (4CIF/D1)
- 640*480@30fps (VGA)
- 704*240@30fps (2CIF)
- 352*240@30fps (CIF)
- 320*240@30fps (QVGA)
- 160*112@30fps (QCIF)
General
- Max Frame Rate in Max Resolution: 30fps/25fps for D1 (NTSC/PAL)
- Video Bit Rate: 16 Kbps - 2 Mbps
- Video input: BNC (voltage1.0Vp-p, resistance 75 ohm)
- Audio Input: 3.5mm, Microphone IN
- Audio/Video Output: 3.5mm, AV cable to TV Audio & Video Input.
- Alarm Input: Digital input port. Normal open (low), Current (DC) <50mA. Voltage <45V to activate
- Alarm Output: Digital output port. Normal open, Voltage <80V,Current <50mA
- Audio Compression: G.711a/u, AAC
- Serial Ports: RS485 (PTZ control)
- Embedded Analytics: Motion detection (up to 16 target areas)
- Pre-/post-alarm Buffer: 24MB
- Snapshots: Triggered upon events, send via email/FTP
- Multi-streaming-rate for Preview & Recording
- Security: Video watermark , HTTPS, User Password
- Network Port: 10M/100M auto-sensing, RJ45
- Protocol: TCP/UDP/IP, RTP/RTCP, RTSP, DHCP, DDNS, HTTP, HTTPS, SMTP, FTP, NTP
- Power over Ethernet (PoE): IEEE 802.3af, Class 0
- SIP/VoIP Support: Yes, Voice & Video-over-IP
- Dimensions (W x H x L): 67mm x 34mm x 96mm
- Weight: 121g or 4.3oz
- Temperature / Humidity: 0℃ - 45℃ （32℉-113℉）; Humidity 10-90% RH (non-condensing)
- Power Adapter: Output: 12VDC/0.5A; Input: 100-240VAC,50/60Hz
- Compliance: FCC,CE,C-Tick
