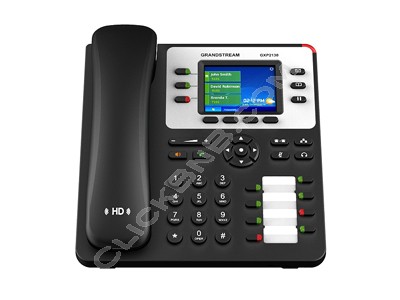

Grandstream - GXP2130v2 IP Phone [Gigabit]

Product Overview

The Grandstream GXP2130 v2 IP Phone is a Linux-based device with 3 lines, 4 XML programmable soft keys for customization and 4-way voice conferencing to keep business users in-touch. It includes 8 BLF/speed-dial keys to allow users to easily monitor presence and status of other extensions and transfer calls. HD audio and a 2.8" color LCD screen create high quality calls and built-in Bluetooth support allows for use of Bluetooth headsets and transferring of phonebook and calls from paired mobile devices. This Enterprise IP phone also features Electronic Hook Switch support for Plantronics headsets. The GXP2130 v2 is perfect for small businesses, SOHOs and enterprises looking for a high quality IP phone with comprehensive features that is easy-to-use.

As all Grandstream IP phones do, the GXP2130 v2 features state-of-the-art security encryption technology (SRTP and TLS). The GXP2130 supports a variety of automated provisioning options, including zero-configuration with Grandstream’s UCM series IP PBXs, encrypted XML files and TR-069, to make mass deployment extremely easy.

Product Key Features

• 3 dual-color line keys (with 3 SIP accounts)
• 4 programmable context sensitive soft keys
• Up to 4-way conferencing
• 8 dual-color BLF extension keys
• 320x240 TFT color LCD
• Dual switched auto-sensing, 10/100/1000Mbps Gigabit network ports, PoE,
• EHS with Plantronics headsets
• Automated provisioning using TR-069 or AES encrypted XML configuration file, TLS/SRTP/HTTPS for advanced security and privacy protection
• Integrated real-time web applications [weather, currency, etc.]

Protocols / Standards

• SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS (A record, SRV, NAPTR), DHCP, PPPoE, TELNET, TFTP, NTP, STUN, SIMPLE, LLDP, LDAP, TR-069, 802.1x, TLS, SRTP, IPv6

Network Interfaces

• Dual switched auto-sensing 10/100/1000 Mbps Gigabit Ethernet ports with integrated PoE

Graphic Display

• 2.8 inch (320x240) TFT color LCD

Feature Keys

• 3 line keys with up to 3 SIP accounts, 8 speed-dial/BLF extension keys with dual-color LED, 4 programmable context sensitive softkeys, 5 navigation/menu keys, 11 dedicated function keys for: MESSAGE (with LED indicator), PHONEBOOK, TRANSFER, CONFERENCE, HOLD, HEADSET, MUTE, SEND/REDIAL, SPEAKERPHONE, VOL+, VOL

Voice Codecs

• Support for G.729A/B, G.711µ/a-law, G.726, G.722 (wide-band), in-band and out-of-band DTMF (in audio, RFC2833, SIP INFO)

Auxillary Ports

• RJ9 headset jack (allowing EHS with Plantronics headsets)

Telephony Features

• Hold, transfer, forward, 4-way audio conference, call park, call pickup, shared-call-appearance (SCA)/ bridged-line-appearance (BLA), downloadable phonebook (XML, LDAP, up to 2000 items), call waiting, call log (up to 500 records), customization of screen, off-hook auto dial, auto answer, click-to-dial, flexible dial plan, hot desking, personalized music ringtones and music on hold, server redundancy and fail-over

Sample Applications

• Weather, currency, GMI available for advanced custom application development (pending)

QoS

• Layer 2 (802.1Q, 802.1p) and Layer 3 (ToS, DiffServ, MPLS) QoS

Security

• User and administrator level passwords, MD5 and MD5-sess based authentication, AES based secure configuration file, SRTP, TLS, 802.1x media access control

Upgrade / Provisioning

• Firmware upgrade via TFTP/HTTP/HTTPS, mass provisioning using TR-069 or encrypted XML configuration file

Physical

• Dimension: 193mm (W) x 211mm (L) x 85mm (H) Unit weight: 0.81kg; Package weight: 1.44kg
