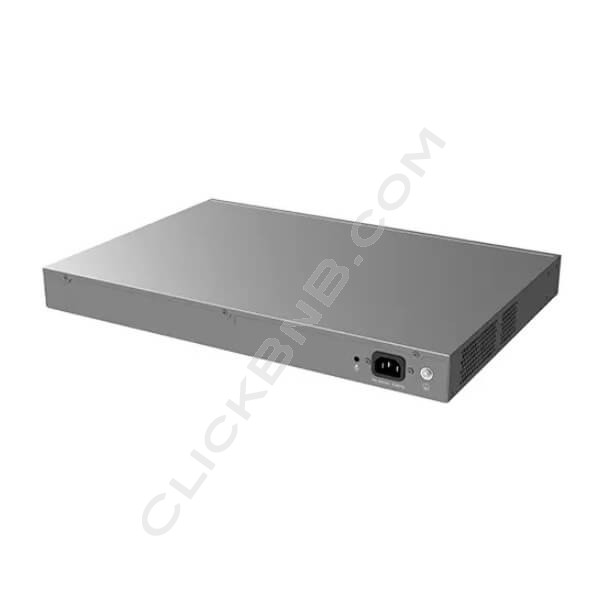

Grandstream GWN7806 - Enterprise-Grade Layer 2+ Managed Network Switch

Grandstream GWN7806 Technical Specifications

General

• Gigabit ports: 48
• SFP+ Ports: 6
• Console: 1
• Integrated Power Supply: 60W
• Auxiliary Port: 1x Reset Pinhole
• Forwarding Mode: Store-and-forward
• Total non-blocking throughput: 108Gbps
• Switching Capability: 216Gbps
• Forwarding Rate: 160.704Mpps
• Packet Buffer: 16Mb

Network Protocol

• IPv4
• IPv6
• IEEE 802.3
• IEEE 802.3i
• IEEE 802.3u
• IEEE 802.3ab
• IEEE 802.3z
• IEEE 802.3ae
• IEEE 802.3az
• IEEE 802.3ad
• IEEE 802.3x
• IEEE 802.3af/at
• IEEE 802.1p
• IEEE 802.1Q
• IEEE 802.3AB
• IEEE 802.1p
• IEEE 802.1D
• IEEE 802.1s
• IEEE 802.1w
• IEEE 802.1x

Switching

• 32K static, dynamic and filtering MAC addresses
• 4K VLANs, port-based VLAN, IEEE 802.1Q VLAN tagging, voice VLAN
• VLAN virtual interface
• GVRP (pending)
• 27 link aggregation
• Spanning tree, 64 instances for STP/RSTP/MSTP

Routing

• Static routing

Multicast

• IGMP Snooping
• MLD Snooping
• MVR (pending)

QoS/ACL

• Port priority
• Priority mapping
• Queue scheduling, including SP, WRR, WFQ, SP-WRR and SP-WFQ
• Traffic shaping
• Rate limit
• 4K ACL for Ethernet, IPv4 and IPv6

DHCP

• DHCP server
• DHCP relay
• DHCP Option 82, 60, 160 and 43

Maintenance

• CPU and memory monitoring
• SNMP
• RMON
• LLDP & LLDP-MED
• Backup and restore
• Syslog
• Diagnostics including Ping, Traceroute, port mirroring, UDLD(TBD) and copper test

Security

• User hierarchical management and password protection, HTTPS, SSH, Telnet
• 802.1X authentication
• AAA authentication including RADIUS, TACACS+
• Storm control
• Port isolation, port security, sticky MAC
• Filtering MAC address
• IP source guard, DoS attack prevention, ARP inspection
• DHCP Snooping
• Loop protection including BPDU protection, root protection(pending) and loopback protection(pending)
• Kensington Security Slot (Kensington Lock) support

Mounting

• Desktop
• Rack-Mount (rack-mounting kits included)

LEDs

• 1x tri-color LED for device tracking and status indication
• 54x green-color LEDs for data transferring

Fan

• 3

Environmental

• Operation: 0°C to 45°C, humidity: 10% to 90% RH (Non-condensing)
• Storage: -10°C to 60°C, humidity: 10% to 90% RH (Non-condensing)

Dimensions

• 440mm (L) x 301mm (W) x 44mm (H)

Unit Weight

• 4.0Kg

Package Content

• Switch
• 1x 1.2m (10A) AC Cable
• 1x 25cm Ground Cable
• 4x Rubber Footpads
• 2x Rack-Mounting Kits
• 8x Screws (PM 3*6)
• 1x Power Cord Anti-Trip
• 1x Quick Installation Guide
• 1x Console Cable (Optional)

Compliance

• FCC
• CE
• RCM
• IC
• UKCA
