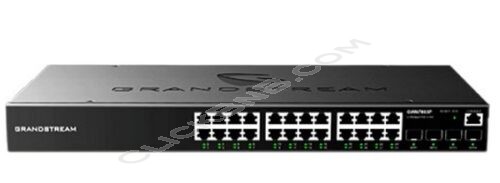

Grandstream GWN7803P Layer 2+ Managed Network Switch Technical Specifications:
Network Protocol
- 24
# of PoE Ports
- 24
Integrated Power Supply
- 400W
Max Output Power per PoE Port
- 30W
Max Total PoE Output Power
- 360W
PoE Standards
- IEEE 802.3af/at
Total non-blocking throughput
- 28Gbps
Switching Capability
- 56Gbps
Forwarding Rate
- 14.88M packets per second 41.66M packets per second
Switching
- 8K static, dynamic and filtering MAC addresses • 4K VLANs, port-based VLAN, IEEE 802.1Q VLAN tagging, voice VLAN • VLAN virtual interface • GVRP (pending) • 8 link aggregation groups
Multicast
- IGMP Snooping, MLD Snooping, MVR
QoS/ACL
- Auto detection and prioritization of voice/video/RTP/SIP/other latency-sensitive packets (pending) • Port priority • Priority mapping • Queue scheduling, including SP, WRR, WFQ, SP-WRR and SP-WFQ • Traffic shaping • Rate limit • 1.5K ACL for Ethernet, IPv4 and IPv6
Security
- User hierarchical management and password protection, HTTPS, SSH, Telnet • 802.1X authentication • AAA authentication including RADIUS, TACACS+ • Storm control • Port isolation, port security, sticky MAC • Filtering MAC address • IP source guard, DoS attack prevention, ARP inspection • DHCP Snooping • Loop protection including BPDU protection, root protection and loopback protection • Kensington Security Slot (Kensington Lock) support
Dimensions
- 30mm(L)*175mm(W)*44(H) 440mm(L)*200mm(W)*44mm(H)
Unit Weight
- 3.3 kg
Package Contents
- Switch, 1x 1.2m(10A) AC Cable, Rack-mounting Standard Brackets, 1x Ground Cable, 4x Rubber Feet, 2x Lug Ear
