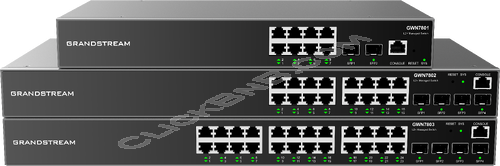

Grandstream GWN7802P Layer 2+ Managed PoE Network Switch (16 GigE, 4 x SFP)

Grandstream GWN7802P Layer 2+ Managed Network Switch Technical Specifications:

Network Protocol

• 16

# of PoE Ports

• 16

Integrated Power Supply

• 270W

Max Output Power per PoE Port

• 30W

Max Total PoE Output Power

• 240W

PoE Standards

• IEEE 802.3af/at

Total non-blocking throughput

• 20Gbps

Switching Capability

• 40Gbps

Forwarding Rate

• 29.76Mpps packets per second

Switching

• 8K static, dynamic and filtering MAC addresses • 4K VLANs, port-based VLAN, IEEE 802.1Q VLAN tagging, voice VLAN • VLAN virtual interface • GVRP (pending) • 8 link aggregation groups

Multicast

• IGMP Snooping, MLD Snooping, MVR

QoS/ACL

• Auto detection and prioritization of voice/video/RTP/SIP/other latency-sensitive packets (pending) • Port priority • Priority mapping • Queue scheduling, including SP, WRR, WFQ, SP-WRR and SP-WFQ • Traffic shaping • Rate limit • 1.5K ACL for Ethernet, IPv4 and IPv6

Security

• User hierarchical management and password protection, HTTPS, SSH, Telnet • 802.1X authentication • AAA authentication including RADIUS, TACACS+ • Storm control • Port isolation, port security, sticky MAC • Filtering MAC address • IP source guard, DoS attack prevention, ARP inspection • DHCP Snooping • Loop protection including BPDU protection, root protection and loopback protection • Kensington Security Slot (Kensington Lock) support

Dimensions

• 30mm(L)*175mm(W)*44(H) 440mm(L)*200mm(W)*44mm(H)

Unit Weight

• 3 kg

Package Contents

• Switch, 1x 1.2m(10A) AC Cable, Rack-mounting Standard Brackets, 1x Ground Cable, 4x Rubber Feet, 2x Lug Ear
