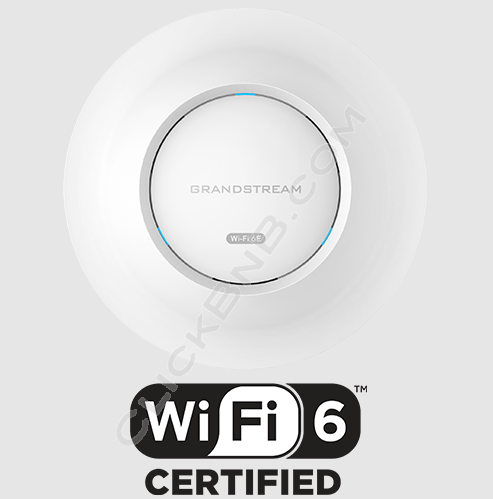

Grandstream GWN7665 Technical Specification
WiFi Standards
- IEEE 802.11a/b/g/n/ac/ax
Antennas
- 7 individual internal antennas, 4 per band
- 2.4GHz x 2, gain 4.0dBi
- 5 GHz x 2, gain 5.0dBi
- 6 GHz x 2, gain 4.5dBi
- BT, gain 4.0dBi
WiFi Data Rates
- 2.4G:
- IEEE 802.11ax: 7.3 Mbps to 573.5 Mbps
- IEEE 802.11n: 6.5 Mbps to 300 Mbps
- IEEE 802.11b: 1.2, 5.5 11 Mbps
- IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
- 5G:
- IEEE 802.11ax: 7.3 Mbps to 2403 Mbps
- IEEE 802.11ac: 6.5Mbps to 1734Mbps
- IEEE 802.11n: 6.5Mbps to 300Mbps
- IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
- 6G:
- IEEE 802.11ax: 7.3 Mbps to 2403 Mbps
- IEEE 802.11ac: 6.5Mbps to 1734Mbps
- IEEE 802.11n: 6.5Mbps to 300Mbps
- IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
Frequency Bands
- 2.4GHz Radio: 2412 - 2484 MHz
- 5GHz Radio: 5180 - 5825 MHz
- 6GHz Radio: 5945 - 7125 MHz
Channel Bandwidth
- 2.4G: 20 and 40 MHz
- 5G: 20, 40, 80 MHz and 160MHz
- 6G: 20, 40, 80 MHz and 160MHz
WiFi and System Security
- WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES); WPA3, anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate and random default password per device
MU—MIMO
- 2×2:2 2.4GHz
- 2×2:2 5GHz
- 2×2:2 6GHz
Coverage Range
- Up to 175 meters
- *coverage range can vary based on the environment
Maximum TX Power
- 2.4G: 24dBm
- 5G: 27dBm
- 6G: 26dBm
- *Maximum power varies by country, frequency band and MCS rate
Receiver Sensitivity
- 2.4G
- 802.11b: -96dBm@1Mbps, -88dBm@11Mbps;
- 802.11g: -93dBm @6Mbps, -75dBm@54Mbps;
- 802.11n 20MHz: -73dBm @MCS7
- 802.11n 40MHz:-70dBm @MCS7
- 802.11ax 20MHz: -60dBm @MCS11
- 802.11ax 40MHz: -58dBm @MCS11
- 5G
- 802.11a: -95dBm @6Mbps, -77dBm @54Mbps
- 802.11n 20MHz: -71dBm @MCS7
- 802.11n 40MHz:-68dBm @MCS7
- 802.11ac 20MHz: -65dBm@MCS8
- 802.11ac: 40MHz:- 61dBm @MCS9
- 802.11ac 80MHz: -57dBm @MCS9
- 802.11ax 20MHz: -58dBm @MC11
- 802.11ax 40MHz: -56dBm @MCS11
- 802.11ax 80MHz: -54dBm @MCS11
- 802.11ax 160MHz: -51dBm @MCS11
- 6G
- 802.11a: -95dBm @6Mbps, -72dBm @54Mbps
- 802.11n 20MHz: -71dBm @MCS7
- 802.11n 40MHz:-68dBm @MCS7
- 802.11ac 20MHz: -65dBm@MCS8
- 802.11ac: 40MHz:- 61dBm @MCS9
- 802.11ac 80MHz: -57dBm @MCS9
- 802.11ac 160MHz: -55dBm @MCS9
- 802.11ax 20MHz: -58dBm @MC11
- 802.11ax 40MHz: -56dBm @MCS11
- 802.11ax 80MHz: -54dBm @MCS11
- 802.11ax 160MHz: -51dBm @MCS11
SSIDs
- 48 SSIDs total, 16 per radio (2.4GHz & 5GHz & 6GHz)
Concurrent clients
- 384
Network Interfaces
- 1x autosensing 10/100/100 Base-T Ethernet Port
- 1x autosensing 10/100/2500 Base-T Ethernet Port
Auxiliary Ports
- 1x Reset Pinhole, 1x Kensington lock
Bluetooth
- BLE 5.2
Mounting
- Indoor wall or ceiling mount, kits included
LEDs
- 3 tri-color LEDs for device tracking and status indication
Network Protocols
- IPv4, IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM
QoS
- 802.11e/WMM, VLAN, TOS
Network Management
- Embedded controller can manage up to 50 local GWN APs
- GWN. Cloud offers a free cloud management platform for unlimited GWN APs
- GWN Manager offers premise-based software controller for up to 3,000 GWN APs
Power and Green Energy Efficiency
- PoE 802.3at
- Maximum Power Consumption:22.55W
Environmental
- Operation: 0°Cto 50°C
- Storage: -10°C to 60°C
- Humidity: 10% to 95% Non-condensing
Physical
- Unit Dimension: 205.3mm(L)x205.3mm(W)x45.9mm(H);
- Unit Weight: 0.756Kg
- Entire Package Dimension: 258x247x86mm;
- Entire Package Weight: 1.06Kg
Package Content
- GWN7665 Wireless AP, Mounting Kits, Quick Start Guide
Compliance
- FCC, CE, RCM, IC, UKCA
