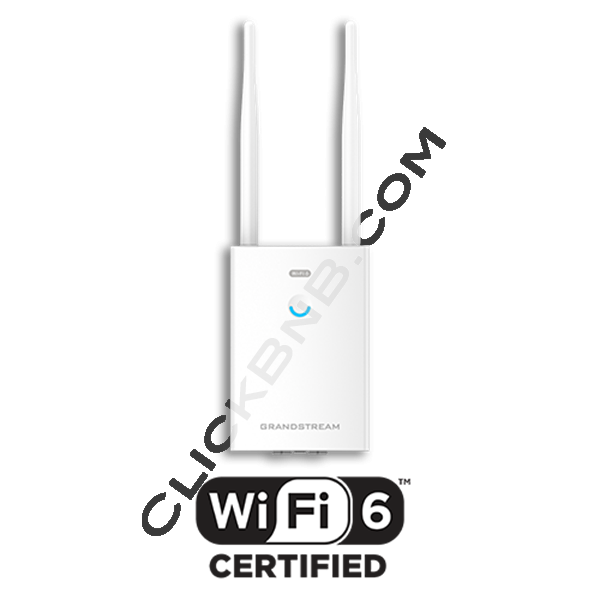

Grandstream GWN7660LR - WiFi 6 Outdoor Long Range Access Point

Grandstream GWN7660LR Technical Specification

WiFi Standards

• IEEE 802.11 a/b/g/n/ac/ax

Antennas

• 2 dual band internal antennas
• 2.4GHz, gain 3dBi / 5 GHz, gain 4dBi

WiFi Data Rates

• 5G:
  - IEEE 802.11ax: 7.3 Mbps to 1201 Mbps;
  - IEEE 802.11ac: 6.5 Mbps to 867 Mbps;
  - IEEE 802.11n: 6.5Mbps to 300Mbps;
  - IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
• 2.4G:
  - IEEE 802.11ax: 7.3 Mbps to 573.5 Mbps;
  - IEEE 802.11n: 6.5Mbps to 300Mbps;
  - IEEE 802.11b: 1, 2, 5.5, 11 Mbps;
  - IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
• *Actual throughput may vary depending on many factors including environmental conditions, distance between devices, radio interference in the operating environment and mix of devices in the network

Frequency Bands

• 2.4GHz radio: 2400-2483.5MHz
• 5GHz radio: 5150-5850MHz

Channel Bandwidth

• 2.4G: 20 and 40 MHz
• 5G: 20, 40 and 80 MHz

WiFi and System Security

• WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES); WPA3, anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate and random default password per device

MIMO

• 2x2:2 2.4GHz
• 2x2:2 5GHz

Coverage Range

• Up to 250 meters
• *coverage range can vary based on the environment

Maximum TX Power

• 5G: 26dBm
• 2.4G: 30dBm
• *Maximum power varies by country, frequency band and MCS rate

Receiver Sensitivity

• 2.4G:
  - 802.11b: -99dBm@1Mbps, -90dBm@11Mbps;
  - 802.11g: -93dBm @6Mbps, -77dBm@54Mbps;
  - 802.11n 20MHz: -74dBm @MCS7; 802.11n 40MHz:-72dBm @MCS7;
  - 802.11ax 20MHz: -64dBm @ MCS11; 802.11ax 40MHz: -62dBm @MCS11
• 5G:
  - 802.11a: -95dBm @6Mbps, -77dBm @54Mbps;
  - 802.11ac 20MHz: -71dBm@MCS8; 802.11ac: HT40:- 67dBm @MCS9; 802.11ac 80MHz: -64dBm @ MCS9;
  - 802.11ax 20MHz: -63dBm @ MCS11; 802.11ax 40MHz: -62dBm @MCS11;802.11ax 80MHz: -58dBm @MCS11

SSIDs

• 32 SSIDs total, 16 per radio (2.4ghz and 5 ghz)

Concurrent clients

• 256+

Network Interfaces

• 2x autosensing 10/100/1000 Base-T Ethernet Ports

Auxiliary Ports

• 1x Reset Pinhole

Mounting

• Outdoor wall mount or pole mount, kits included

LEDs

• 1x tri-color LEDs for device tracking and status indication

Network Protocols

• IPv4, IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM

QoS

• 802.11e/WMM, VLAN, TOS

Network Management

• Embedded controller can manage up to 50 local GWN APs
• GWN.Cloud offers a free cloud management platform for unlimited GWN APs
• GWN Manager offers premise-based software controller for up to 3,000 GWN APs

Power and Green Energy Efficiency

• PoE 802.3af/ 802.3at;
• Maximum Power Consumption: 12.9W

Environmental

• Operation: -30°C to 60°C
• Storage: -30°C to 70°C
• Humidity: 5% to 95% Non-condensing

Physical

• Unit Dimension: 358.3mmx115mmx45.3mm; Unit Weight: 695g
• Entire Package Dimension: 275x185.5x89mm; Entire Package Weight: 995g

Package Content

• GWN7660LR 802.11ax Wireless AP, Mounting Kits, Quick Start Guide

Compliance

• FCC, CE, RCM, IC
