Product Overview

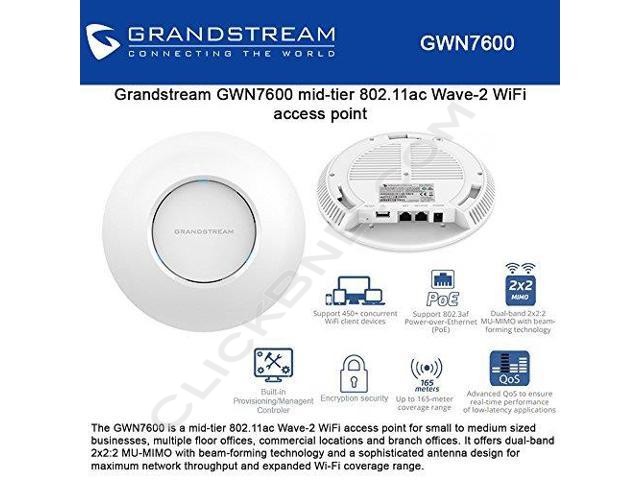

The GWN7600 is a mid-tier 802.11ac Wave-2 WiFi access point for small to medium sized businesses, multiple floor offices, commercial locations and branch offices. It offers dual-band 2x2:2 MU-MIMO with beam-forming technology and a sophisticated antenna design for maximum network throughput and expanded Wi-Fi coverage range. To ensure easy installation and management, the GWN7600 uses a controller-less distributed network management design in which the controller is embedded within the product’s web user interface. This allows each access point to manage a network of up to 30 GWN76xx series APs independently without needing separate controller hardware/software and without a single point-of-failure. This wireless access point can be paired with any third party routers as well as Grandstream GWN series routers. With support for advanced QoS, low-latency real-time applications, 450+ concurrent client devices per AP and dual Gigabit network ports with PoE, the GWN7600 is an ideal WiFi access point for medium wireless network deployments with medium-to-high user density.
The Grandstream GWN7600 Key Features
- 1.27Gbps wireless throughput and 2x Gigabit wireline ports
- Dual-band 2x2:2 MU-MIMO with beam-forming technology
- Support 802.3af Power-over-Ethernet (PoE)
- Support 450+ concurrent WiFi client devices
- Advanced QoS to ensure real-time performance of low-latency applications
- Up to 165-meter coverage range
- Anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate/random default password per device
- Embedded controller allows GWN7600 to auto-discover, auto-provision and manage up to 30 GWN7600s in a network
Designed for small to medium sized businesses, multiple floor offices, commercial locations and branch offices, the GWN7600 is a mid-tier 802.11ac Wave-2 WiFi access point. It supports up to 1.27GBps, over 450 concurrent WiFi clients and up to a 165 meter coverage range. To ensure easy installation and management, the GWN7600 uses a controller-less distributed network management design in which the controller is embedded within the product’s web user interface.
Product Specifications
• WiFi Standards: IEEE 802.11a/b/g/n/ac (Wave-2)
• Antennas:
(2) 2.4GHz 3dBi internal antennas
(2) 5GHz 3dBi internal antennnas
• Frequency Bands:
2400 - 2484MHz
5150 - 5250, 5725 - 5850MHz
• Channel Bandwidth:
2.4GHz: 20 and 40MHz
5GHz, 20, 40, and 80MHz
• MIMO:
2.4GHz: 2x2:2 MIMO
5GHz: 2x2:2 MU-MIMO
• Coverage Range: Up to 541ft (165m)
• Maximum TX Power:
5GHz: 22dBm
2.4GHz: 22dBm
• SSIDs: 16 SSIDs per radio
• Concurrent Clients: 450+
• Networking Interfaces: (2) autosensing 10/100/1000 Base-T Ethernet ports
• Auxiliary Ports: (1) USB 2.0 port, (1) Reset Pinhole, (1) Kinsington lock
• Mounting: Indoor wall mount or ceiling mount, kits included
• LEDs: 3 tri-color LEDs for device tracking and status indication
• Network Protocols: IPv4, 802.1Q, 802.1p, 802.11e/WMM
• QoS: 802.11e/WMM, VLAN, TOS
• Network Management: Embedded controller in GWN7600 allows it to auto-discover, auto-provision and manage up to 30 GWN7600s in a network
• Power and Green Energy Efficiency:
DC Input: 24VDC/1A
Power over Ethernet (802.3af) compliant
Maximum Power Consumption: 13.8W
• Operating Temperature: 0 to 50°C
• Storage Temperature: -10 to 60°C
• Humidity: 10 to 90% non-condensing
• Unit Dimensions: 205.3 x 205.3 x 45.9mm
• Unit + Mounting Kit Dimensions: 205.3 x 205.3 x 53.9mm
• Package Dimensions: 228.5 x 220 x 79mm
• Unit Weight: 526g
• Unit + Mounting Kit Weight: 610g
• Package Weight: 854g
• Compliance: FCC, CE, RCM, IC
Product Includes:
• (1) GWN7600 802.11ac Wave-2 Wireless AP
• (1) Mounting Kit
• (1) Quick Start Guide
