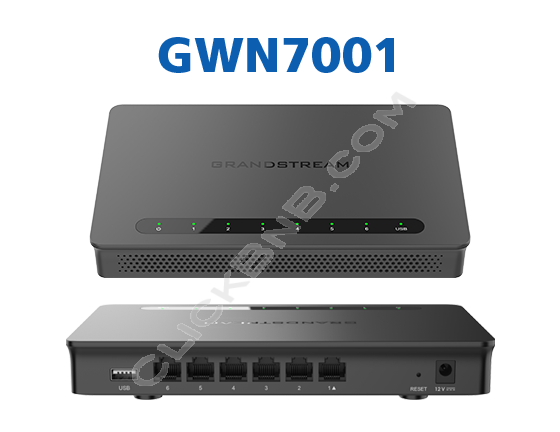

Grandstream GWN7001 - Multi-WAN Gigabit VPN Router

CPU

• Dual ARM Cortex A53 1GHz

Memory and NAT Sessions

• 256MB RAM, 256MB Flash, 30K NAT sessions

Network Interfaces

• 6x Gigabit Ethernet ports (WAN/LAN configurable)

NAT Throughput and IPsec VPN Throughput

• NAT Throughput: 2.2Gbps
• IPsec VPN Throughput: 530Mbps

Auxiliary Ports and Mounting

• 1x USB 2.0 port, 1x Reset Pinhole
• Mounting: Desktop and wall mounting

LEDs

• 8 x single-color LEDs for device tracking and status indication

Connection Type and Network Protocols

• DHCP, Static IP, PPPoE, PPTP, L2TP
• Network Protocols: IPv4, IPv6, IEEE802.1Q, IEEE 802.1p, IEEE802.1x, IEEE802.3, IEEE 802.3u, IEEE 802.3x, IEEE802.3ab

QoS (Quality of Service)

• VLAN, TOS
• Support multiple traffic classes, filter by port, IP address, DSCP, and policing
• App QoS
• VoIP Prioritization

Firewall and Security

• DDNS, Port Forwarding, DMZ, UPnP, Anti-DoS, traffic rules, NAT, ALG
• Application/protocol monitoring and traffic statistics
• Content filtering: Supports Application/URL/DNS/Web Content Filtering
• Safe search

VPN

• SSL VPN Server / Client-to-Site
• IPsec VPN Client-to-Site / Site-to-Site
• PPTP VPN Server / Clien-to-Site
• L2TP Client-to-Site
• WireGuard (pending)
• IPSec Encryption: DES, 3DES, AES
• IPSec Authentication: MD5, SHA-1, SHA2-256
• IPSec Key Exchange: Main/Aggressive Mode, Pre-shared Key, DH Groups 1/2/5/14
• IPSec Protocols: ESP
• IPSec NAT Traversal
• SSL VPN Encryption: AES, DES
• SSL Authentication: MD5, SHA-1, SHA2-256, SHA2-384, SHA2-512
• SSL VPN Certificate: RSA
• PPTP Encryption: MPPE 40-bit, 128-bit, IPSec
• PPTP/L2TP Authentication: MS-CHAPv1/2

Max Concurrent VPN Tunnels

• Up to 50 Tunnels

Network Management

• GWN7001 embedded controller for self and up to 100 GWN APs
• GWN.Cloud offers a free cloud management platform for unlimited GWN Routers and GWN APs

Power & Green Energy Efficiency

• Universal power adaptor included: Input: 100-240VAC 50-60Hz, Output: 12V DC 1A (12W)

Environmental

• Operation: 0°C to 40°C
• Storage: -30°C to 60°C
• Humidity: 10% to 90% Non-condensing

Physical

• Unit Dimension: 210mm(L)x130mm(W)x35mm(H); Unit Weight: 453g
• Entire Package Dimension: 246mm(L)x235mm(W)x54mm(H); Entire Package Weight: 672g

Package Content

• GWN7001 Router
• Universal Power Supply
• Network Cable
• Quick Installation Guide

Compliance

• FCC
• CE
• RCM
• IC
• UKCA
