Product Overview

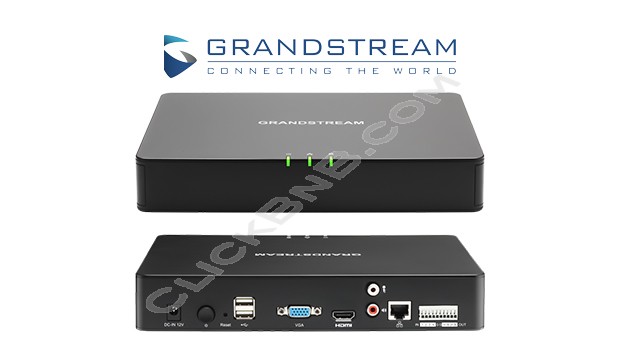

The GVR3552 Network Video Recorder (NVR) provides video recording, indexing, searching and video storage management for up to 16 IP video cameras with up to 4TB of storage, making it ideal for small businesses and residential users..
Grandstream GVR3552 Features
- Up to 16 channels of 720p or 8 channels of 1080p HD audio/video real-time recording
- Fully customizable recording rules; time-based, event based, manual or automatic
- Automatic discovery of Grandstream IP Cameras
- Up to 2 SATA 2.5” internal hard drives with maximum 4TB storage and RAID 0 or RAID 1 configurations
- Complete security features including role based access control, event/system logs and hard drive content encryp
The GVR3552 Network Video Recorder (NVR) offers small to medium businesses and residential users a dedicated and reliable solution for centralized IP video surveillance recording and monitoring. It provides video recording, indexing, searching and video storage management for up to 16 IP video cameras to allow users to record and monitor their IP video surveillance network using one device. The GVR3552 can be viewed and managed by connecting it directly to a TV or computer monitor or through the web user interface. The GVR3552 supports all Grandstream IP Video surveillance cameras and IP Video Encoders/Decoders and can automatically detect these devices. Users can view the live feed of up to 4 cameras simultaneously and can save up to 4TB of video files on the device by easily connecting up to 2 hard drives (hard drives not included) using the easy to access hard drive tray.
Video Recording
- Up to 16 channels of 720p (1280x720) or 8 channels of 1080p (1920x1080)
Total Recording Rate
- Up to 32 Mbps
Recording Modes
- Continuous mode, record by schedule, event triggered or manual
Video Compression
- H.264 baseline, main or high profile
Audio Recording
- Synchronized audio and video recording
Audio Compression
- G.711 (u-Law and a-Law)
Live View
- 4 channels of 720p or 2 channels of 1080p via HDMI or VGA output
- Up to 16 channels simultaneous remote viewing via HTTP/HTTPS
Event Trigger
- Yes
Intelligent Search
- Time & date, motion
Total Storage
- Up to 4TB internally from 2 hard drives (hard drives not included)
RAID
- RAID 0 or RAID 1 Support
Storage Redundancy
- Backup to USB
HDMI Interface
- 1 x HDMI
VGA Interface
- 1 x VGA
Network Interface
- 1x10 10/100/1000 Mbps auto-sensing RJ45 port
Line-in
- 1xRCA
Line-out
- 1xRCA
Alarm-in
- Terminal 4 Inputs (NO/NC), Vin 2.5v, ~12v, lin 2.5mA~30
Alarm-out
- Terminal 2 Outputs (Relay) 0.5A at 125VAC; 2A at 30 VDC
UPS
- UPS Management (pending)
USB Interfaces
- 2 x USB 2.0 host ports
LED Indicators
- Power, LAN Link/Activity, Hard Drive Activity
Input
- USB mouse
RTC
- Yes
Internal HDD
- Up to 2x 2.5” SATA hard drives with maximum 4TB storage
QoS
- Diff-Serv, TOS, 802.1P/Q VLAN tagging
Network Protocols
- TCP/IP/UDP, RTP/RTCP/RTSP, HTTP/HTTPS, ARP, ICMP, DNS, DDNS, DHCP (client and server),
- NTP (client and server), SSH, PPPoE, ONVIF 2.2
IP Cameras Supported
- Grandstream GXV36xx cameras, GXV35xx encoders/decoders, 3rd party ONVIF compliant cameras (pending)
Provisioning
- HTTP, HTTPS, ONVIF
Security
- HTTPS, 802.1x, SSH
Management
- Syslog, Web Browser, SSH, GSurf Pro
Universal Power Supply
- Input:100~240V 50/60Hz Output:12V/2A 36W
Environmental
- Operation: 0°C to 50°C
- Storage: -20°C to 60°C (HDDs not included)
- Humidity: 10% to 90% non-condensing
Physical
- 347.5mm (W) x 212mm (L) x 57mm (H)
- Unit Weight: 840g; Package weight: 1100g
Mounting
- Desktop or Wall Mount
Compliance
- FCC: Part 15, (CFR 47) Class B
- CE: EN 55022, EN 55024, EN 61000-3-2, EN 61000-3-3, EN 60950
- RCM: AS/NZS CISPR22, AS/NZS CISPR24, AS/NZS 60950
- Comply with R & TTE, RoHS & WEEE
