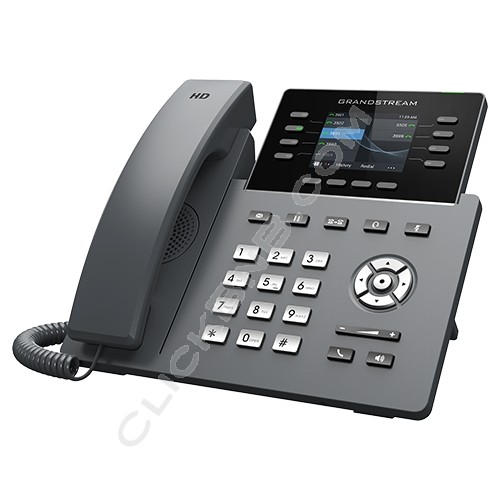

Grandstream GRP2624 - 8 Line Proffesional Carrier Grade WiFi IP Phone

Grandstream GRP2624 Technical Specifications

Protocols/Standards

• SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS(A record, SRV,NAPTR), DHCP, PPPoE, TELNET, TFTP, NTP, STUN, SIMPLE, LLDP, LDAP, TR-069,802.1x, TLS, SRTP, IPV6

Network Interfaces

• Dual switched auto-sensing 10/100/1000 Mbps Gigabit Ethernet ports with integrated PoE

Graphic Display

• 2.8 inch (320x240) TFT colour LCD

WiFi

• Yes, integrated dual-band Wi-Fi 802.11 a/b/g/n/ac (2.4Ghz & 5Ghz)

Bluetooth

• Yes, integrated

Feature Keys

• 8 line keys with up to 4 SIP accounts, 4 XML programmable context sensitivesoftkeys, 5 navigation/menu keys, 9 dedicated function keys for: MESSAGE(withLED indicator), TRANSFER, HOLD, HEADSET, MUTE, SEND/REDIAL, SPEAKERPHONE,VOL+, VOL

Auxiliary Port

• RJ9 headset jack allowing EHS with Plantronics headsets, USB to supportGrandstream’s GUV Series headsets and other USB headsets

Voice Codecs and Capabilities

• Support for G7.29A/B, G.711µ/a-law, G.726, G.722 (wide-band), G723, iLBC, OPUS,in-band and out-of-band DTMF (in audio, RFC2833, SIP INFO)

Telephony Features

• Hold, transfer, forward, 5-way conference, call park, call pickup, shared-callappearance(SCA)/bridged-line-appearance(BLA), downloadable phonebook(XML,LDAP, up to 2000 items), call waiting, call log(up to 2000 records), XMLcustomization of screen, off-hook auto dial, auto answer, click-to-dial, flexibledial plan, hot-desking, personalized music ringtones and music on hold, serverredundancy and fail-over

HD Audio

• Yes, HD handset and speakerphone with support for wideband audio, and dualmicrophone.

Extension Module

• Yes, GBX20

Base Stand

• Yes, 2 angle positions available, Wall Mountable (Wall Mount *sold separately)

QoS

• Layer 2 QoS (802.1Q, 802.1P) and Layer 3 (ToS, DiffServ, MPLS) QoS

Security

• User and administrator level passwords, MD5 and MD5-sess based authentication,256-bit AES encrypted configuration file, SRTP, TLS, 802.1x media access control,secure boot.

Multi-language

• English, German, Italian, French, Spanish, Portuguese, Russian, Croatian, Chinese,Korean, Japanese and more

Upgrade/Provisioning

• Firmware upgrade via FTP/TFTP / HTTP / HTTPS, mass provisioning using GDMS/TR069 or AES encrypted XML configuration file.

Power & Green Energy Efficiency

• Universal power adapter included
• Input: 100-240V ; Output: +12V, 1A ;
• Integrated Power-over-Ethernet (802.3af)
• Max power consumption 9.5W (power adapter) or 10.8W (PoE)

Temperature and Humidity

• Operation: 0°C to 40°C
• Storage: -10°C to 60°C
• Humidity: 10% to 90% Non-condensing

Package Content

• GRP2624 phone, handset with cord, phone stand, 12V power adapter, networkcable, Quick Installation Guide, GPL license

Physical

• Dimension: 220mmx 210mmx 82mm
• Unit Weight: 880g ; Package Weight:1260g
