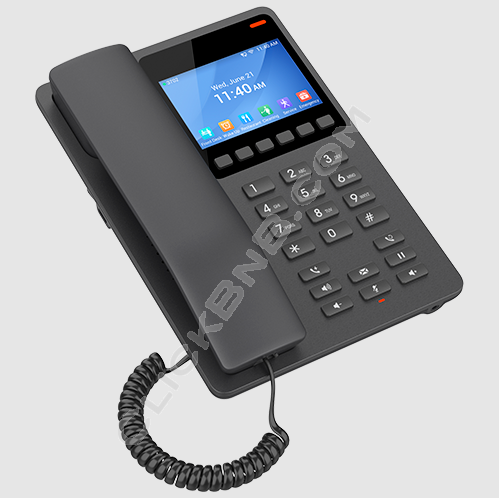

Grandstream GHP631W – Compact Hotel WiFi IP Phone with Color LCD

Grandstream GHP631W Technical Specification

General

• Protocols/Standards: SIP: SIP RFC3261, TCP/IP/UDP, RTP/RTCP, RTCP-XR, TLS, SRTP / Network: IPv4, IPv6, HTTP/HTTPS, ARP, ICMP, DNS(A record, SRV, NAPTR), DHCP, SSH, TFTP, NTP, STUN, LLDP, TR-069, 802.1x
• Graphic Display : 3.5" High Resolution (480x320) Color LCD
• Network Interfaces One auto-negotiation 10/100 Mbps ethernet port integrated PoE Class 2
• WiFi : Integrated dual-band 2.4GHz & 5GHz 802.11 a/b/g/n/ac/ax Wi-Fi 6
• Feature Keys
  26 keys, including 6 Context-Sensitive Soft Keys ; 12 Standard Phone Digits keys (0-9: speed dial keys
  configuration on web page, *, #), 5 Function keys (Flash, Redial, Hands-free, Voice Mail, Hold), 3
  Volume Control keys, Up/Down/Mute(with red color LED)
• HD Audio One HD handset support for wide band audio
• Voice Conferencing 2 SIP accounts and lines, up to 3-way conference
• Voice Codecs and Capabilities
  Support for G.729A/B, G.711µ/a-law, G.726, G.722 (wide-band), G.723, iLBC, and full band
  OPUS. In- band and out-of-band DTMF (in audio, RFC2833, SIP INFO), VAD, AEC, CNG, PLC, AGC,
  AJB.
• Telephony Features Dial, Answer, Transfer, Conference, Redial, Flash ,Hands-free, Voice Mail (with the server) Hold/Unhold, Mute/unmute, flexible dial plan, speed dial server redundancy & fail-over Call out
• Advanced Features
  Support for multicast paging and E911 service
  Support for advanced jitter-resilience algorithm
  Supports GDS Door Opening
• Wall Installation 1 Wall Mountable Base
• QoS Layer 2 QoS (802.1Q, 802.1p) and Layer 3 (ToS, DiffServ, MPLS) QoS
• Security
  Secure boot, random default password, unique security certificate per device, administrator
  level passwords, 256-bit AES encrypted configuration file, SRTP, TLS, 802.1x media access
  control
• Multi-language English, Spanish, French, Chinese (pending)
• Upgrade/Provisioning Firmware upgrade via FTP/TFTP / HTTP / HTTPS, fast boot in 15 seconds, mass provisioning using GDMS/TR-069 or AES encrypted XML configuration file
• Power & Green Energy Efficiency
  Universal power adapter :
  Input: 100~240Vac 50~60Hz
  Output: 12V/0.5A(6W)
• Temperature and Humidity
  Operation: 0°C to 40°C
  Storage: -10°C to 60°C
  Humidity: 10% to 90% (Non-condensing)
• Package Content GHP631W phone, handset with cord, base stand, Quick Installation Guide
• Colour Black
• Physical
  Unit Size : 210mm(L)*147mm(W)*89.8mm(H) (with handset and base stand)
  Unit weight: 668g
  Package weight: 891g

• GHP631W Compliance
  FCC: Part 15 Subpart B, Class B; Part 68. 316/317.
  CE: EN 55032; EN 55035; EN IEC 61000-3-2; EN 61000-3-3; EN IEC 62368-1.
  UKCA: BS EN 55032; BS EN 55035; BS EN IEC 61000-3-2; BS EN 61000-3-3; BS EN 62368-1.
  RCM: AS/NZS CISPR32; AS/NZS 62368.1; AS/CA S004, AS/CA S040.
  IC: ICES-003; CS-03 Part V.
