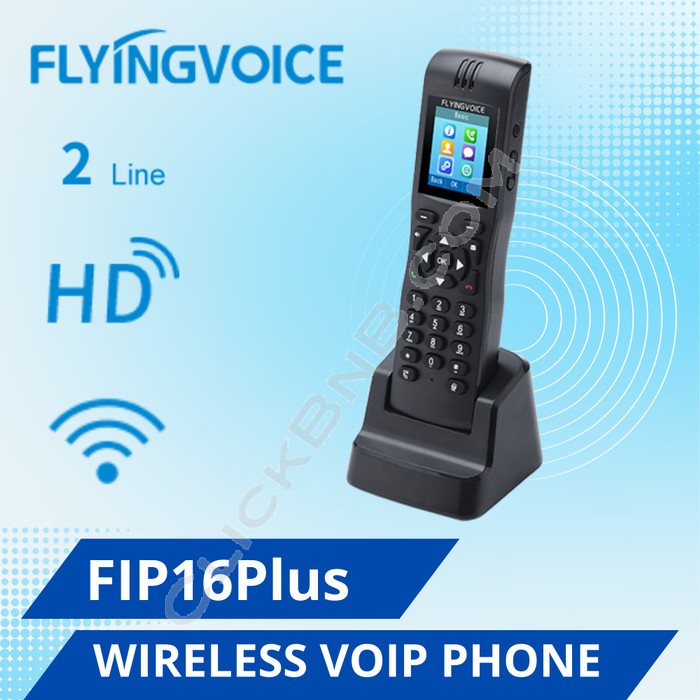

FlyingVoice FIP16Plus Technical Spesifications
Audio Features
- HD voice: HD handset, HD Speaker
- Wideband codec: G.722, Opus, AMR-WB(optional), G.711WB(optional)
- Narrowband codec: G.711(A/u), iLBC, G.729A/B, G.723, G.726, AMR-NB(Optional)
- DTMF: In-band, RFC 2833 and SIP info
- Full-duplex hands-free speakerphone
- VAD, CNG, AEC, PLC, AJB, AGC
Phone Features
- 2 SIP accounts
- Call hold, mute, DND, redial, auto answer
- One-touch speed dial, hotline, SIP message
- Call forward, call waiting, call transfer (attended/blind)
- Paging, intercom
- 6-way conferencing
- Direct IP call without SIP proxy
- Set date time manually or automatically
- Dial rule
- IP conflict detection
- 2.4GHz & 5GHz Wi-Fi
Directory
- Phone book (2000 records)
- Black list
- XML/LDAP remote phonebook
- Phonebook search/import/export
- Call history: dialed/received/missed (60 records)
IP PBX Features
- BLF
- Anonymous call, anonymous call rejection
- Voice mail, call park, call pickup
- Message waiting indicator (MWI)
Feature Keys
- 6 features key, hands-free speakerphone, voicemail, call, hang up, hold, mute
- 2 Soft Keys
- 5 Navigate Keys
- Volume+/-
Display and Indicator
- 1.8" 128 x 160px color LCD screen with backlight
- 16 bit depth color
- Intuitive user interface with icons and soft keys
- Multilingual user interface
- Caller ID with name and number
- Power saving feature
Interface
- 1 x 3.5mm headphone jack
- 1 x Micro USB port
Management
- Configuration: browser/phone/auto-provision
- TFTP/HTTP/HTTPS for Auto Provisioning
- TR069(TR104/TR106)
- Reset to factory, reboot
- Package tracing export, system log
- DNS/DNS SRV (RFC 1706, RFC 2782)
- NAPTR for SIP URI lookup (RFC 2915)
- Cloud device management: FACS
- DHCP client
Others
- Color: Black
- AC/DC Adapter : AC Input: 100~240V, 50~60Hz, DC Output: 5V, 2A
- Power consumption (PSU): 10W
- Battery: 4000mA Battery
- Dimension(W x H x T): 48mm x 182mm x 28mm
- Relative humidity: 10%~90% (No Condensing)
- Storage temperature: -25~ 65°C
- Operation temperature: 0~45°C
Network and Security
- SIP v1 (RFC2543), v2 (RFC3261)
- Call server redundancy supported
- NAT Traversal By STUN
- Proxy mode and peer-to-peer SIP link mode
- IP assignment: Static IP and DHCP
- HTTP/HTTPS web server
- Time and date synchronization using SNTP
- SDP (RFC 2327), UDP/TCP
- Mutil-VLAN, DSCP and 802.1p QoS
- SRTP
- TLS
- HTTPS certificate manager
- AES encryption for configuration file
- Digest authentication
- OpenVPN
- IPv4 /IPv6, Dual stack IPv4/IPv6
- RTP/RTCP (RFC 1889, RFC 1890)
- ARP/RARP (RFC 826/903)
- DSCP
- SNMPv2
Package Contents
- Flyingvoice FIP16Plus IP Phone
- USB cable
- USB charging station
- Belt clip
- Quick installation guide
- USB charging statio5
- Qty/CTN: 10 PCS
- N.W/CTN: 5.8 kg
- G.W/CTN: 6.14 kg
- Giftbox size: 202mm x 116mm x 65mm
- Carton size: 355mm x 250mm x 230mm
