Product Overview

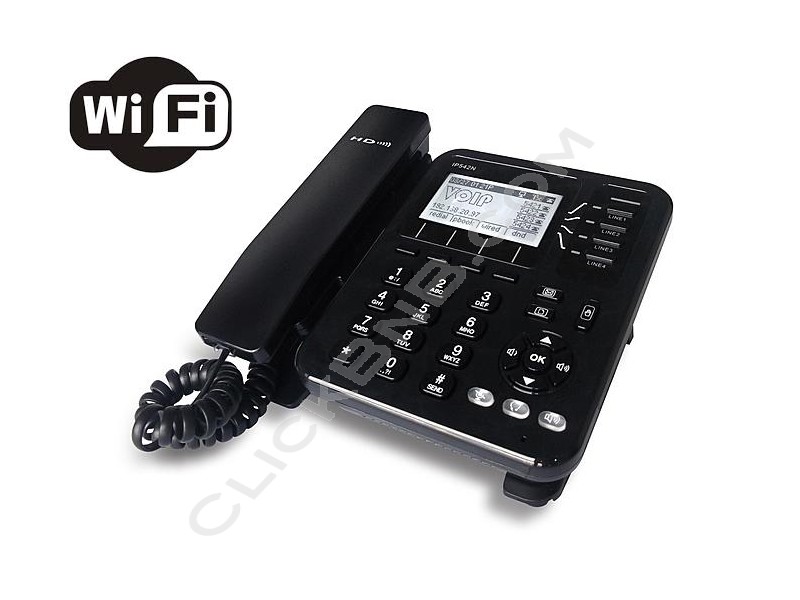

Flyingvoice IP542N which has 4 lines, is an advanced wireless VoIP(Voice over IP) phone with internal antenna built in, which provides voice communication over an IP network in the everyday business environment. It offers high voice quality HD handset, HD speaker and HD codec(G.722).
The built-in internal antenna make user connect the network much easier and more quickly, user can not only connect IP542N to the network by using a ethernet cable, but also he/ she can connect IP542N to the wireless network, the performance is the same as mobile phone. User can connect the wireless network on IP542N's LCD or on phone's webpage. Detailes about the connectons, please refer to IP542N user manual.
This phone functions not only much like a traditional phone, allowing to place and receive calls and enjoy features that traditional phone has, but it also owns many data services which you could not expect form tranditional telephone.
What is more, the IP542N provides Power over Ethernet(PoE) and two two Ethernet ports for connecting another device to the loacal area network.
The IP542N, which has a 3dB internal antenna for 802.11n 1T1R, supports wireless, this help user connect the network simply and enjoy the network easily.
Applied Environment
Operation Temperature: 0~50 Degree C
Storage Temperature: -25~ 85 Degree C
Relative Humidity: 10%~90% No Condensing
Shock: Up to 75cm (30 inches) `Drop upon Package
Codec and Voice Features
The IP542N supports 4 codec: G.711 (A-Law, U-Law), G.729A/AB, G.723 with 5.3 kbps and 6.3 kbps, and
G.722 (HD).
The IP542N supports VAD (Voice Active Detection), CNG (Comfort Noise Generation), AEC, ANC (Automatic Noisy Cancel), AGC (Automatic Gain Control) and adaptive Jitter buffer.
Call Features
Volume Adjustment: Handset/Headset, Speaker and Ringer
DTMF Relay: In-band, Out-band (RFC2833) and SIP INFO
Management
Menu Configuration, SNTP Time Synchronization, Daylight Saving Time, Alarm Clock, Password Reset, Web access management, Local and Remote Syslog (RFC3164), Factory Default, Firmware Upgradeable, Web Management Interface, Multi User Level, SNMPv2, TR069, Auto Provisioning: TFTP (including option 66), HTTP and HTTPS
Applications
MAC Address Cloning, VPN: PPTP and T2TP, DMZ, Direct IP to IP calling, IP conflict detection, Built-in
NAT Router, DHCP Server and Client,
Layer 2 QoS: 802.1Q/VLAN ID and 802.1p PRI
Layer 3 QoS: SIP QoS, RTP QoS and Data QoS
SIP proxy redundancy: dynamic via DNS SRV, A records
NAT Traversal: Static NAT Route and Traversal by STUN
Support PoE complies with IEEE802. with3af (optional)
Web Configuration
The IP542N supports web configuration with MD5 authentication, and two level configurations which are admin mode and user mode. In admin mode user can configure all parameters, while in user mode user can only configure partly parameters with partly can’t configuration such as VoIP settings.
Below picture is the login web: user enters the user name and password to login and start to configuration:
Below picture is the IP542N web:
Explanation:
Place 1: Display the main information, such as firmware version, DSP version, Current Time, and configuration mode. Press Logout button to logout.
Place 2: Click navigation bar, and then many sub-navigation bars will appear in the place 4.
Place 3: Display the briefly explanation of the corresponding web; user can get help from it directly.
Place 4: Choose sub-navigation bars to open one configuration webpage.
Place 5: The configuration column.
Place 6: Parameters and settings value.
The following is the wireless connection page:
This page lists the status of your wireless connections and the available wireless network nearby.
Hardware Features | |
Interface |
2 RJ-45 WAN port(10/100Mbps Ethernet port) 3.5mm earphone jack 3dB internal antenna for 802.11n 1T1R Full duplex hands-free speaker phone Headset and wall mount 1 Power set |
Display | 128×64 Graphic LCD with white back light |
Phone Keys | 4 soft keys 4 Line keys with red-green dual color LEDs for indication MENU, SMS, HOLD, Volume+, Volume-, Headset, Handsfree and navigate key MUTE 12 Dialing Buttons(0~9,*,#) |
LED | 4 line LEDs used to indicate line status 1 MSG LED 1 Handsfree, 1 Handset LED 1 MUTE LED |
Power Supply | AC Input : 100-240v, 50-60Hz; DC Output: 5V, 1A IEEE802.3af PoE in WAN port(IP542NP only) |
Environmental |
Operation Temperature: 0~50 Degree C Storage Temperature: -25~85 Degree C Relatively Humidity: 10%~90% No Condensing Shock: Up to 75cm Drop upon package |
Dimension | (L)220×(W)187×(H)97mm |
Unit Weight | 602g(without package) |
Software Features | |
Audio Codec Features |
G.711(A-law, u-Law)with PAMS above 4.3 G.729A/AB with PAMS above 4.0 G.723.1 Adaptive Jitter Buffer Management Voice Activity Detection Comfort Noise Generation Echo Cancellation |
Protocols | SIP V2 (RFC 3261,3262,3263,3264) Backward Compatible with RFC2543 Session Timer (RFC4028) SDP (RFC2327) RTP/RTCP (RFC1889 and RFC1890) NAPTR for SIP URI Lookup (RFC2915) STUN (RFC 3489) ARP/RARP (RFC 826/903) SNTP (RFC 2030) DHCP/PPPoE DHCP server and client HTTP Server for Web Management TFTP/HTTP for Auto Provisioning Message Waiting Indicator(RFC3842) DHCP Option Codes for SIP(RFC3361) DNS/DNS SRV (RFC1706 and RFC 2782) IEEE802.1Q VLAN/802.1p and DSCP |
Management | Menu Configuration Firmware Upgradable Web Management Interface Local and Remote Syslog (RFC3164) Auto Provisioning: TFTP, HTTP SNTP Time Synchronization Daylight Saving Time Alarm Clock Password Reset Factory Default Auto Provisioning: TFTP, HTTP Multiple User Level Configuration SNMPv2 TR069 |
Applications | SMS Function MAC Address Cloning VPN: PPTP and L2TP OpenVPN DMZ SIP proxy redundancy: dynamic via DNS SRV, A records Direct IP to IP calling NAT Traversal: Traversal by STUN Built-in NAT Router QoS with Layer 2 and Layer 3 DHCP Server and Client IP conflict detection Support PoE comply with IEEE802.3af(optional) |
Call Features | 4 lines Auto answer 3-way Conference Music on hold DTMF Relay: In-band, Out-band and SIP INFO Call Hold Call Forwarding Call Mute Call Transfer: blind transfer and attended transfer Call Waiting Caller ID and call waiting ID Full-duplex Speakerphone Delayed hotline BLF Pick up Call Park Dial Plan MWI DND Redial Call log: redial list, answered calls and missed calls Volume Adjustment: Handset, Speaker and Ringer Black List |
Phone Features | Customized Ring Tone SMS(100 records) Call History -Most Recently Missed Calls -Most Recently Received Calls -Most Recently Dialed Numbers Phone book(100 records) |
