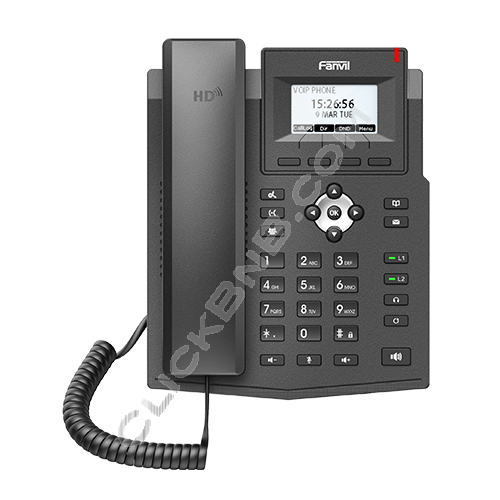

Fanvil X3SG Lite Entry Level IP Phone [PoE - Gigabit - HD Voice]

Product Overview

Fanvil X3SG Lite Entry Level IP Phone - Technical Specifications

Generic

• 2 SIP Lines
• HD Voice
• POE Enabled
• 132x64 Dot-Matric display screen
• Handset(HS) / Hands-free(HF) / Headset mode
• Desktop stand / Wall-mounted (need an additional wall hanging parts)
• Optional external power supply

Call Functions

• Call out / answer / reject
• Mute / unmute (microphone)
• Call Hold / Resume
• Call Waiting
• Intercom
• Caller ID Display
• Speed dial
• Anonymous call (Hide Caller id)
• Call Forward (Always/Busy/No Answer)
• Call Transfer (Attended/Unattended)
• Call Parking/Pick-up (depending on server)
• Redial
• Do-Not-Disturb
• Auto-Answering
• Voice Message (with server)
• 6-way Conference
• Hot Line
• Hot Desking

Phone Functions

• Local Phonebook (1000 entries)
• Remote Phonebook (XML/LDAP, 1000 entries)
•  Call log (in/out/missed, 600 entries)
•  Black/White List Call Filter
•  Screen Saver
• Voice Message Waiting Indication (VMWI)
•  Programmable DSS/Softkeys
• Network Time Syncronization
• Support Plantronics wireless headset (Through Plantronics APD-80 EHSCable)
• Support Jabra wireless headset (Through Fanvil EHS 20 EHS Cable)
• Support Recording (Through Server)
• Action URL / Active URI
• uaCSTA

Audio

• HD Voice Microphone/Speaker (Handset/Hands-free, 0~7KHz Frequency Response)
• Wideband ADC/DAC 16KHz Sampling
• HAC handset
• Narrowband CODEC: G.711a/u, G.723.1, G.726, G.729A/B, iLBC
• Wideband CODEC: G.722, OPUS
• Full-duplex Acoustic Echo Canceller (AEC)
• Voice Activity Detection (VAD) / Comfort Noise Generation (CNG) / Background Noise Estimation (BNE) / Noise Reduction (NR)
• Packet Loss Concealment (PLC)
• Dynamic Adaptive Jitter Buffer
• DTMF: In-band, Out-of-Band – DTMF-Relay (RFC2833) / SIP INFO
• VQM - Voice Quality Monitoring

Networking

• Physical:  10/100/1000Mbps Ethernet, dual bridged port for PC bypass
• IP Configuration: Static / DHCP / PPPoE
• IP Mode : IPv4/IPv6/IPv4&IPv6
• Network Access Control: 802.1x
• VPN: L2TP (Basic Unencrypted) / OpenVPN
• VLAN
• LLDP
• QoS
• RTCP-XR (RFC3611),VQ-RTCPXR (RFC6035)

Protocols

• SIP 2.0 over UDP/TCP/TLS
• RTP/RTCP/SRTP
• STUN
• DHCP
• LLDP
• PPPoE
• AES128 & AES256
• 802.1x
• L2TP
• OpenVPN
• SNTP
• FTP/TFTP
• HTTP/HTTPS
• TR069

Deployment & Maintenance

• Auto-Provisioning via FTP/TFTP/HTTP/HTTPS/DHCP/OPT66/SIP PNP/TR-069
• Web Management Portal
• Web-based Packet Dump
• Configuration Export/Import
• Phonebook Export/Import
• Firmware Upgrade
• Syslog

Physical Specifications

• Main LCD: 2-3-inch (132x264 Dot-Matric Screen with Backlight
• Keypad: 34 keys, including
  4 Soft-keys
  9 Functionkeys (Hold/Transfer/Conference/Phonebook/MWI/Headsets/Redial)
  4 Navigation keys
  2 Line keys (With LED Indicator Light)
  3 Volume Control keys, Up/Down/Mute(Microphone)
• 1 OK Key
• 1 Hands-free key
• HD Handset (RJ9) x1
• Standard RJ9 Handset Wire x1
• 1.5M CAT5 Ethernet Cable x1
• Back Rack x1
• Status Indicator Light x1 (Red)
• RJ9 Port x2: Handset x1, Headset x1
• RJ45 Port x2: Network x1, PC x1 (Bridged to Network)
• Safety Keyhole x1
• DC Power Input: 5V/0.6A
• Power Consumption : Idle 0.9~1.58W, Peak 2.34~3.21W
• Working Temperature : 0 ~ 45
• Working Humidity : 10 ~ 95%
• Color : Black
• Desktop Stand (Angles 1) : 169x186.3x174.5 mm
• Desktop Stand (Angles 2) : 169x177.6x183.7 mm
• Wall-mounted : 169x115.6x212.5 mm
• Gift Box Dimensions : 274x215x68 mm
• Outer CTN Dimensions : 450x360x294mm (10PCS)
