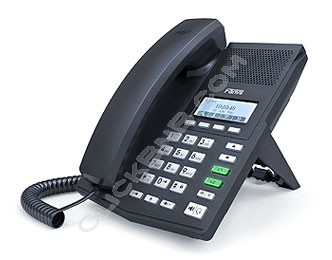

Fanvil X3P IP Phone

Product Overview

The Fanvil X3P is PoE enabled IP Phone supports two lines and HD voice, providing a high level of communication. A desktop phone, unlike a personal mobile phone, often serves among several users in a family or office, therefore the X3P brings in the concept of user profile which can store user’s individual accounts and preference up to five users. User can easily restore and clean up their profile by simply signing in or out on the X3P.

Fanvil X3P IP Phone Key Features

• 2 Lines
• Up to 5 User Profiles
• HD Voice
• Easy restore & clean up via signing / in out
• PoE(Power Over Ethernet) Integrated

Both the phonebook and call logs are highly important functions on a phone that users rely on to quickly locate a contact or call history. The Fanvil X3P has learned from the smart phone and enhanced the intelligence of call logs and phonebook.

Fanvil is also planning to launch a cloud service to provide online phone software upgrade and a mobile app to synchronize a user’s phonebook from his/her mobile phone to the X3P.

While network condition is unpredictable, the X3P has a feature called QoS indication, which shows the transmission quality of a call on the screen to acknowledge users the communication reliability, like a cellphone.

Phone Features

Call out / answer / reject Mute / Unmute (microphone) Call Hold / Resume Call Waiting Intercom Caller ID Display Call Forwarding (Always/Busy/No Answer) Call Transfer (Attended/Unattended)

Call Parking/Pick-up (depending on server) Redial Do-Not-Disturb (per line / per phone) Auto-Answering (per line) Voice Message (on server) Local 3-way Conference Hot Line

Phone Specifications

Generic 2 SIP Lines HD Voice User Friendly Graphical Menu with Help     description POE Enabled (X3P) Handset (HS) / Hands-free (HF) /     Headphone (HP) mode Desktop / Wall-mount installation External Power Supply (X3) Economical and Environmental friendly     package Industrial Standard Certifications: CE/FCC Call Features Call out / answer / reject Mute / Unmute (microphone) Call Hold / Resume Call Waiting Intercom Caller ID Display Call Forwarding (Always/Busy/No Answer) Call Transfer (Attended/Unattended) Call Parking/Pick-up (depending on server) Redial Do-Not-Disturb (per line / per phone) Auto-Answering (per line) Voice Message (on server) Local 3-way Conference Hot Line Phone Features Initialization Configuration Wizard Up to 5 User Accounts / Profiles with     individual phonebook/call log/     configurations/PIN Phone Accessibility Control by User PIN Intelligent Phonebook (up to 500     entries total) Cloud Phonebook (XML) Intelligent Contact Number Matching /     Filtering Call log (300 entries total, in/out/missed) Call Connection Quality (QoS)     Measurement and Indication Voice Message Waiting Indication (VMWI) Network Time Synchronization Audio HD Voice Microphone/Speaker     (Handset/Hands-free, 0 ~ 7KHz     Frequency Response) Wideband ADC/DAC 16KHz Sampling Narrowband CODEC: G.711a/u, G.723.1,     G.726-32K, G.729AB Wideband CODEC: G.722 Full-duplex Acoustic Echo Canceller (AEC) –     Hands-free Mode, 96ms tail-length Voice Activity Detection (VAD) / Comfort     Noise Generation (CNG) / Background     Noise Estimation (BNE) / Noise Reduction     (NR) Packet Loss Concealment (PLC) Dynamic Adaptive Jitter Buffer up to 300ms DTMF: In-band, Out-of-Band – DTMF-Relay     (RFC2833) / SIP INFO

Networking Physical: 10/100Mbps Ethernet, dual bridged     port for PC bypass IP Configuration: Static / DHCP / PPPoE Network Access Control: 802.1x VPN: L2TP (Basic Unencrypted) / OpenVPN VLAN QoS Protocols SIP2.0 over UDP/TCP/TLS RTP/RTCP/SRTP STUN DHCP PPPoE 802.1x L2TP (Basic Unencrypted) OpenVPN SNTP FTP/TFTP HTTP/HTTPS TR069 RFCs: 354/1321/1350/1769/1889/1890/2131/2132/2616/ 2617/2661/2833/2976/3261/3262/3263/3264/3265/ 3268/3311/3489/3711/4346/4566/5630/5865 Deployment & Maintenance Auto-Provisioning via FTP/TFTP/HTTP/     HTTPS/DHCP OPT66/SIP PNP/TR069 Web Management Portal Web-based Packet Dump Configuration Backup/Restore Auto/Manual Online Software Upgrade Syslog Physical Specifications LCD x1: 128x48 dot-matrix with backlit Keypad: 25 keys, including       4 Soft-keys       12 Standard Phone Digits keys       2 Navigation keys (Up/Down)       2 Line keys with tri-color LED       1 Redial / Call Log Key       3 Volume Control keys, Up/Down/          Mute(Microphone)       1 Hands-free / Headphone key HD Hands-free Speaker (0 ~ 7KHz) x1 HD Hands-free Microphone (0 ~ 7KHz) x1 HD Handset (RJ9) x1 Standard RJ9 Handset Wire x1 1.5M CAT5 Ethernet Cable x1 RJ9 Phone Jacket x2: Handset x1, Headphone x1 RJ45 Ethernet Jacket x2: Network x1     (802.3AF POE Class 1 Enabled, X3P only),      PC x1 (Bridged to Network) Main Chipset: Broadcom DC Power Input: 5V/1A Power Consumption: Idle – ~ 1.1W,     Peak – ~ 1.8W Working Temperature: 0 ~ 40℃ Working Humidity: 10 ~ 65% Dual-Functional Back Rack x1: Desktop Stand /     Wall-mount Color: Black (K) / White (W) / Red (R) /     Blue (B) / Yellow (Y) Package Dimensions: 275x215x62mm(W x H x L)
