Fanvil V61W - Prime Business WiFi IP Phone

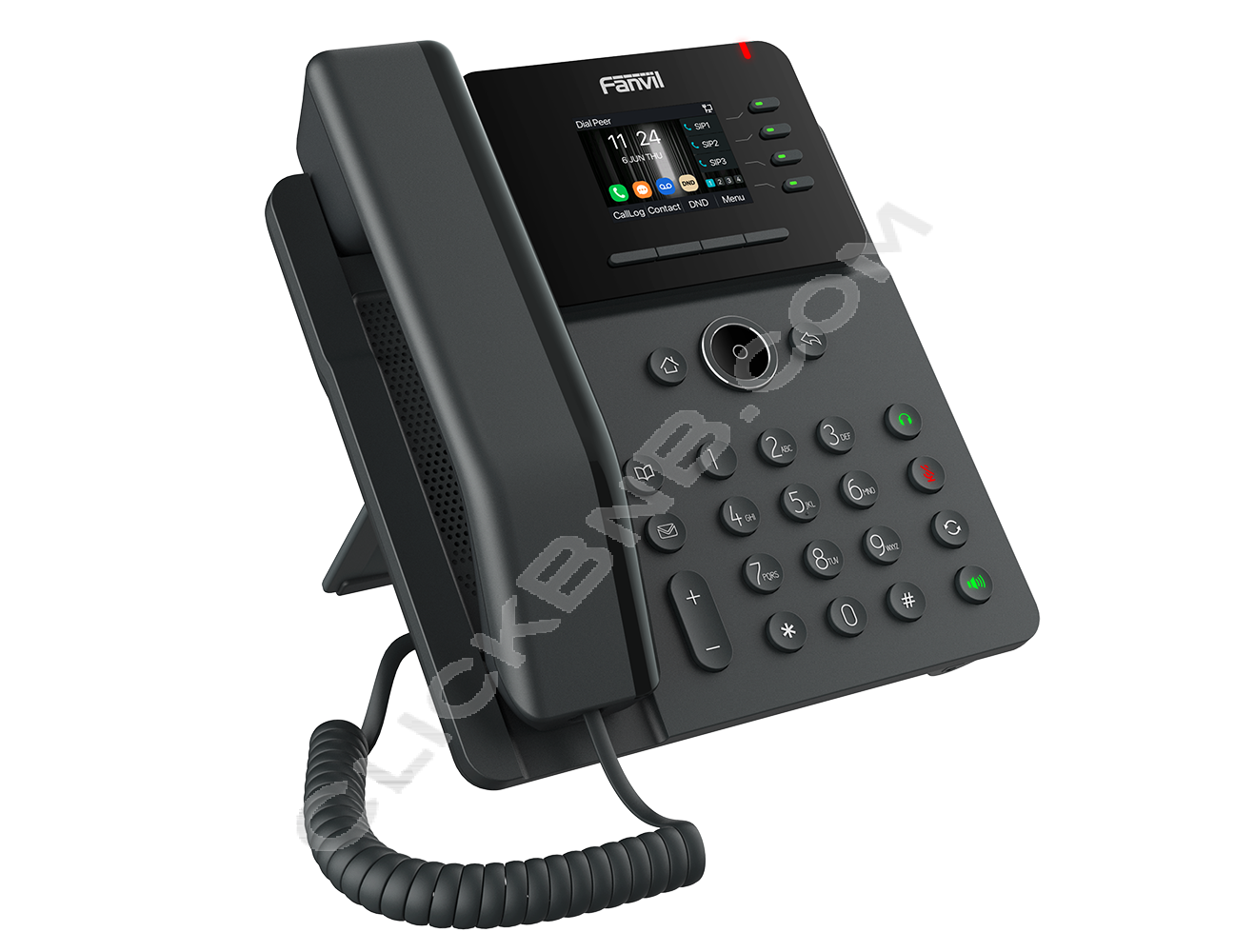

Fanvil V61W Essential Business IP Phone

Fanvil V61W is a stylish and user-friendly IP phone. It features a 2.4-inch (320x240) high-definition color screen, supports 4 SIP lines, and allows for a 6-way audio conference. With rich functions such as HD audio, dual Gigabit ports, and integrated PoE, the V61W is suitable for various business application scenarios, providing users with an excellent interactive experience and comfortable instant communication services.

Fanvil V61W - Technical Specifications

Generic

• 6 SIP lines
• HD Voice
• Dual Gigabit Ports, PoE Enabled
• Intelligent DSS Keys
• 2.4-inch (320x240) color screen
• Handset / Hands-free / Headset mode
• Desktop Stand / Wall-mounted (need an additional wall hanging part)
• External Power Supply - Included

Phone Functions

• Local Phonebook (1000 entries)
• Remote Phonebook (XML/LDAP, 1000 entries)
• Call logs (In/Out/Missed, 1000 entries)
• Blocked List / Allowed List Call Filter
• Screen Saver
• Voice Message Waiting Indication (VMWI)
• Programmable DSS/Soft keys
• Network Time Synchronisation
• Built-in Bluetooth 5.4: Support Bluetooth headset/ Pairing mobile devices
• Built-in dual-band 2.4GHz/5GHz Wi-Fi, supporting Wi-Fi 6
• Support Poly wireless headset (Through Poly APD-80 EHS Cable)
• Support Jabra wireless headset (Through Fanvil EHS20 EHS Cable)
• Support Recording (Through Flash Drive or Server)
• Action URL/Active URI
• uaCSTA
• Dial Plan
• SIP Hotspot
• Multicast
• Action Plan
• Group listening

Call Functions

• Call out / Answer / Reject
• Mute / Unmute (Microphone)
• Call Hold / Resume
• Call Waiting
• Intercom
• Caller ID Display
• Speed Dial
• Anonymous Call (Hide Caller ID)
• Call Forward (Always/Busy/No Answer)
• Call Transfer (Attended/Unattended)
• Call Parking/Pick-up (Depending on server)
• BLF
• Redial
• Do-Not-Disturb
• Auto-Answering
• Voice Message (With server)
• 6-way Conference
• Hot Line
• Hot desking
• Call back
• IP direct dial

Audio

• HD Voice Microphone/Speaker (Hands free, 0~7KHz Frequency Response)
• HAC handset
• Wideband ADC/DAC 16KHz samping
• Narrowband Codec: G.711a/u, G.723.1, G.726, G.729, G.729A, G.729B, G.729AB, iLBC
• Wideband Codec: G.722, Opus
• Full-Duplex Acoustic Echo Canceller (AEC)
• Voice Activity Detection (VAD)/Comfort Noise Generation (CNG)/Background Noise Estimation (BNE)/Noise Reduction (NR)/Automatic Gain Control(AGC)
• Packet loss concealment (PLC)
• Dynamic Adaptive Jitter Buffer
• DTMF: In-band, Out-of-band - DTMF-Relay (RFC2833)/SIP INFO
• VQM Voice Quality Monitoring

Network

• Physical: 10/100/1000 Mbps Ethernet, dual bridged port for PC bypass
• IP Mode: IPv4/IPv6/IPv4&IpV6
• IP Configuration: Static IP / DHCP / PPPoE
• Network Access Control: 802.1x
• VPN: L2TP / OpenVPN
• VLAN
• LLDP
• CDP
• QoS
• Support SIP backup server
• RTCP-XR (RFC3611), VQ-RTCPXR (RFC6035)
• Wi-Fi Security Mode: WPA /WPA2-PSK/802.X EAP

Protocols

• SIP2.0 over UDP/TCP/TLS
• RTP/RTCP/SRTP
• STUN
• DHCP
• IPv6
• LLDP
• PPPoE
• 802.1x
• L2TP
• OpenVPN
• SNTP
• FTP/TFTP
• HTTP/HTTPS
• TR-069
• AES128 & AES256

Deployment & Management

• Auto-Provisioning via FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIP PNP/TR069
• Web Management Portal
• Web-based Packet Dump
• Configuration Export / Import
• Phonebook Import/Export
• Firmware Upgrade
• Syslog

Physical Specifications

• LCD 2.4-inch (320x240) color screen
• Keypad: 35 keys, including
  - 3 DSS keys + 1 page key (with LED)
  - 5 Function keys (Contact, MWI, Mute, Headset, Redial)
  - 4 Soft-keys , 1 Hands-free key
  - 1 OK Key, 4 Navigation Key. 1 Return Key, 1 Home Key
  - 12 Standard Phone Digits key
  - 2 Volume Control Keys Up/Down
• HD Handset (RJ9) x1
• Standard RJ9 Handset Wire x1
• 1.5M CAT5 Ethernet Cable x1
• Desktop Stand x1
• Status Indicator Light x1 (Red)
• RJ9 Port x2: Handset x1, Headset x1
• RJ45 Port x2: Network x1, PC x1 (Bridged to Network)
• Security Slot x1
• Power : DC5V/1A or PoE
• Working Temperature: 0 ~ 45℃
• Power Consumption (Adapter): 1.3~4.36 W
• Power Consumption (PoE): 2.1~6.7 W
• Working Humidity: 10 ~ 95%
• Installation:
  - Desktop Stand
  - Wall-Mounted (optional)
• Colour: DarkGrey
• Gift Box Dimensions: 295 x 222 x 56mm
• Outer CTN Dimensions: 464 x 305 x 315mm (10 PCS)
